Brushless DC Gearmotors80R
80R Series of Brushless DC Motor
The 80R Series of Brushless DC Motor is available from Source Engineering Inc. in Santa Clara, CA for OEM brushless dc gearmotors programs. Contact us for sizing, customization, samples, and volume pricing.
80R Series of Brushless DC Motor

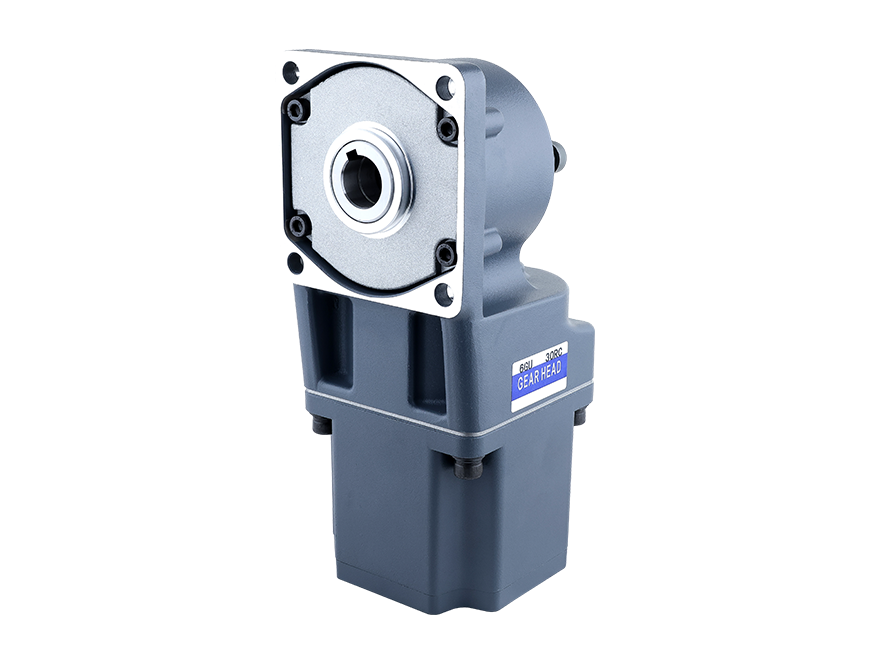

80mm Brushless DC Gearmotor
Spiral Bevel Right Angle Gearmotor
- 40-60 Watt
- 24VDC (36/48VDC optional)
- 7.5-180:1 Ratio
Motor Specification
| Rated power (Continuous) | W | 60 (40W/60W) | |||
|---|---|---|---|---|---|
| Rated speed | r/min | 3000 | |||
| Rated torque | N.m | 0.191 | |||
| Instantaneous maximum torque | N.m | 0.287 | |||
| Rotor moment of inertia | J:X10-4kg.m2 | 0.082 | |||
| Speed control range | RPM | 200~3000 | |||
| Speed control range | On load | Below ±1%: Condition 0~rated torque, rated speed, rated voltage, room temperature | |||
| On voltage | Below±1%: Condition rated voltage ±10%, rated speed, rated load, room temperature | ||||
| On temperature | Below±1%: Conditions of ambient temperature -10ºC~+40ºC rated voltage, rated load and rated speed | ||||
| Power input | Rated voltage | V | Single phase 110V | Single phase 220V | 24VDC (Optional 36VDC/48VDC) |
| Voltage tolerance range | ±10% | ||||
| Frequency | Hz | 50/60 | / | ||
| Frequency tolerance range | ±5% | / | |||
| Rated input current | A | 1.7 | 1.0 | 3.7 | |
| Instantaneous maximum input current | A | 3.3 | 1.9 | 5.6 | |
Gear Motor Specification (Unit: N.m)
● Z4BLD40-◘GN-30S/4GN□RC/RT Machine allowable torque (Unit: N.m)
| Model | Reduction ratio/Motor speed | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Z4BLD40-◘GN | 200～1500RPM | 1.21 | 1.45 | 1.61 | 2.01 | 2.41 | 2.90 | 2.90 | 3.63 | 4.35 | 5.22 | 7.25 | 7.87 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 |
| 2000RPM | 1.02 | 1.23 | 1.36 | 1.70 | 2.04 | 2.45 | 2.45 | 3.07 | 3.68 | 4.42 | 6.13 | 6.66 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | |
| 2500RPM | 0.93 | 1.11 | 1.24 | 1.55 | 1.86 | 2.23 | 2.23 | 2.79 | 3.35 | 4.02 | 5.58 | 6.05 | 7.56 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | |
| 3000RPM | 0.63 | 0.76 | 0.84 | 1.05 | 1.26 | 1.51 | 1.68 | 2.10 | 2.52 | 3.03 | 4.20 | 5.58 | 6.97 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 |
● Z4BLD60-◘GN-30S/4GN□RC/RT Machine allowable torque (Unit: N.m)
| Model | Reduction ratio/Motor speed | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Z4BLD60-◘GN | 200～1500RPM | 1.81 | 2.17 | 2.41 | 3.02 | 3.62 | 4.34 | 4.35 | 5.44 | 6.53 | 7.83 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 |
| 2000RPM | 1.53 | 1.84 | 2.04 | 2.55 | 3.06 | 3.68 | 3.68 | 4.60 | 5.52 | 6.63 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | |
| 2500RPM | 1.39 | 1.67 | 1.86 | 2.32 | 2.78 | 3.34 | 3.35 | 4.18 | 5.02 | 6.02 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | |
| 3000RPM | 0.95 | 1.13 | 1.26 | 1.58 | 1.89 | 2.27 | 2.52 | 3.15 | 3.78 | 4.54 | 6.30 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 |
Note： All gearbox output turn direction in form are opposite motor turn direction.
Dimensions (Unit: mm)

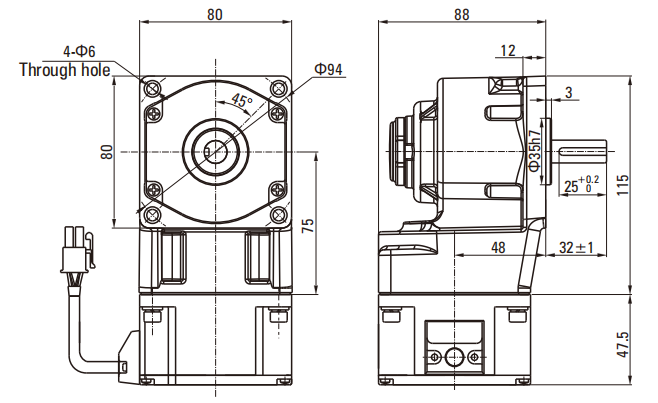

Z4BLD60-◘GN-30S/4GN□RC
◘— Voltage 24/36/48 □— Reduction ratio

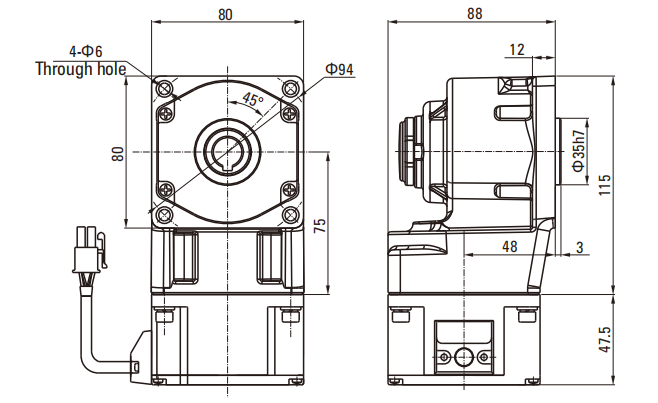

Z4BLD60-◘GN-30S/4GN□RT

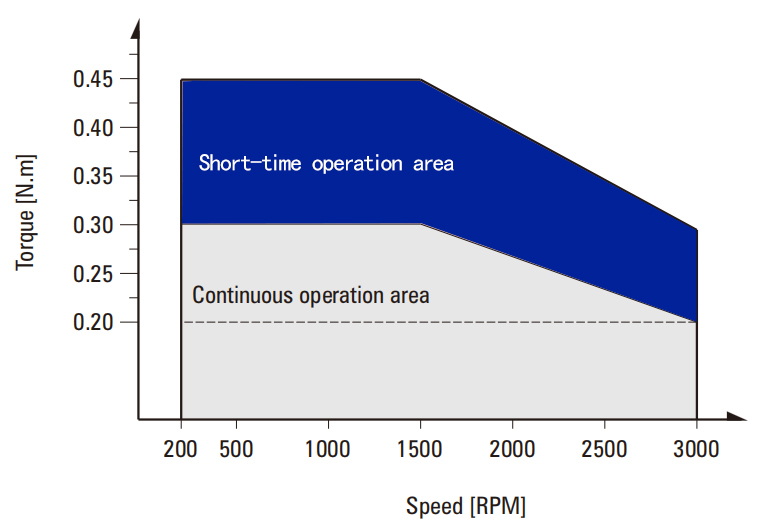

Characteristic Curve Of Motor
Low Voltage Pinouts
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | |
|---|---|---|---|---|---|---|---|---|
| Green (thick) | Black (fine) | Blue (fine) | Red (fine) | Yellow (thick) | Blue (thick) | Green (fine) | Yellow (fine) | |
| V | GND | Hw | Vcc+5V | U | W | Hv | Hu |
Key Features
- 80R Series of Brushless DC Motor: OEM motion component configured for your application
- Custom shafts, windings, and mounts available
- US engineering support with overseas manufacturing cost structure
- Prototype to production volumes
Configuration Options
- Custom shafts, windings, encoders, and cable assemblies on request
- Prototype samples through production volumes
Applications
- AGV/AMR
- Robotics
- Medical pumps
- Factory automation
- Battery systems
When to Choose This Model
Choose BLDC gearmotors when you need high efficiency, long life, and quiet operation in a compact package.
Frequently Asked Questions
What is the 80R Series of Brushless DC Motor used for?
The 80R Series of Brushless DC Motor is used in OEM motion-control applications. Contact us to match torque, speed, and mounting to your design.
Can you customize this model?
Yes. Shafts, windings, ratios, encoders, cables, and mounting interfaces can be customized for OEM programs.
How do I get pricing and lead time?
Request a quote with your quantity, target specs, and timeline. We typically respond within one business day.
