Brushless DC Gearmotors104L
104L Series of Brushless DC Motor
The 104L Series of Brushless DC Motor is available from Source Engineering Inc. in Santa Clara, CA for OEM brushless dc gearmotors programs. Contact us for sizing, customization, samples, and volume pricing.
104L Series of Brushless DC Motor

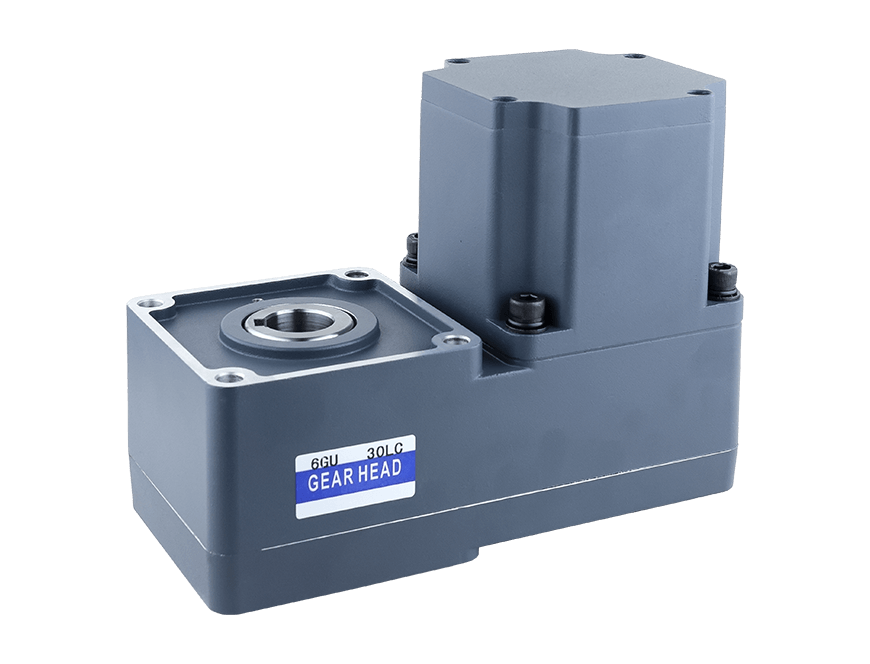

104mm Brushless DC Gearmotor(GU Type)
L-Type Gearmotor
- 200-400 Watt
- 24VDC (36/48VDC optional)
- 5-100:1 Ratio
- GU Type – Heavy Duty Gears with Higher Torque Capabilities
Motor Specification
| Rated power (Continuous) | W | 200 (200W/400W) | |||
|---|---|---|---|---|---|
| Rated speed | r/min | 3000 | |||
| Rated torque | N.m | 0.636 | |||
| Instantaneous maximum torque | N.m | 0.955 | |||
| Rotor moment of inertia | J:X10-4kg.m2 | 0.460 | |||
| Speed control range | RPM | High pressure 200-2500RPM (Low pressure 200-3000RPM) | |||
| Speed control range | On load | Below ±1%: Condition 0~rated torque, rated speed, rated voltage, room temperature | |||
| On voltage | Below±1%: Condition rated voltage ±10%, rated speed, rated load, room temperature | ||||
| On temperature | Below±1%: Conditions of ambient temperature -10ºC~+40ºC rated voltage, rated load and rated speed | ||||
| Power input | Rated voltage | V | 24 VDC ( 36/48 VDC Optional) | ||
| Voltage tolerance range | ±10% | ||||
| Frequency | Hz | 50/60 | / | ||
| Frequency tolerance range | ±5% | / | |||
| Rated input current | A | 4.7 | 2.4 | 7.5 | |
| Instantaneous maximum input current | A | 9.0 | 4.8 | 11.5 | |
Gear Motor Specification (Unit: N.m)
● Z6BLD200-◘GUL-30S/6GU□LC gearmotor allowable torque (Unit: N.m)
| Reduction ratio/Motor speed | 5 | 15 | 20 | 30 | 40 | 50 | 100 |
|---|---|---|---|---|---|---|---|
| 200～1500RPM | 4.02 | 12.1 | 16.10 | 21.80 | 32.20 | 40.20 | 80.40 |
| 2000RPM | 3.40 | 10.2 | 13.60 | 20.40 | 27.20 | 34.00 | 68.00 |
| 2500BPM | 3.09 | 9.27 | 12.36 | 18.54 | 24.72 | 30.90 | 61.80 |
| 3000BPM | 2.32 | 6.96 | 9.280 | 13.92 | 18.56 | 23.20 | 46.40 |
● Z6BLD400-◘GUL-30S/6GU□LC gearmotor allowable torque (Unit: N.m)
| Reduction ratio/Motor speed | 5 | 15 | 20 | 30 | 40 | 50 | 100 |
|---|---|---|---|---|---|---|---|
| 200～1500RPM | 8.04 | 24.20 | 32.20 | 43.60 | 64.40 | 80.40 | 120.0 |
| 2000RPM | 6.80 | 20.40 | 27.20 | 40.80 | 54.40 | 68.00 | 120.0 |
| 2500RPM | 6.18 | 18.54 | 24.72 | 37.08 | 49.44 | 61.80 | 120.0 |
| 3000RPM | 4.64 | 13.92 | 18.56 | 27.84 | 37.12 | 46.40 | 92.80 |
Note： All gearbox output turn direction in form are opposite motor turn direction.

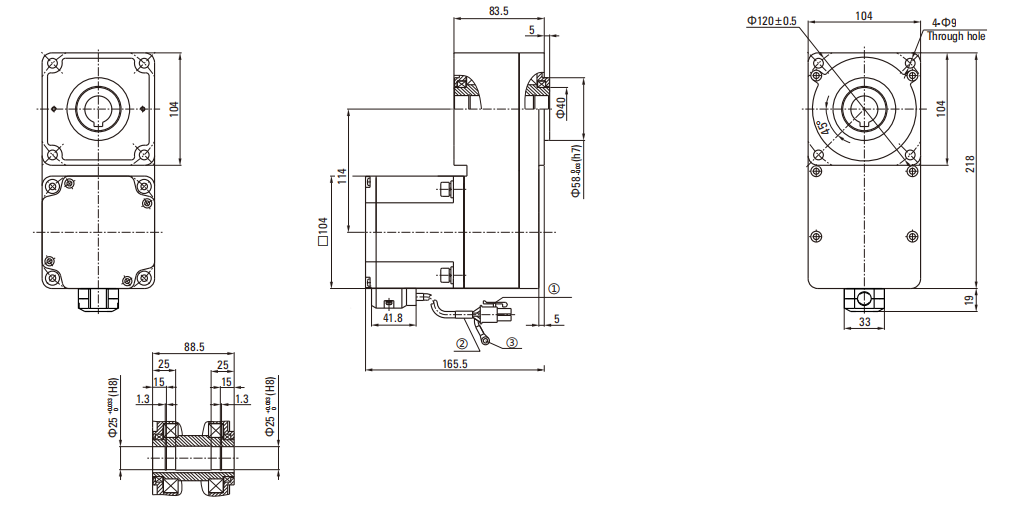

Dimensions (Unit: mm)

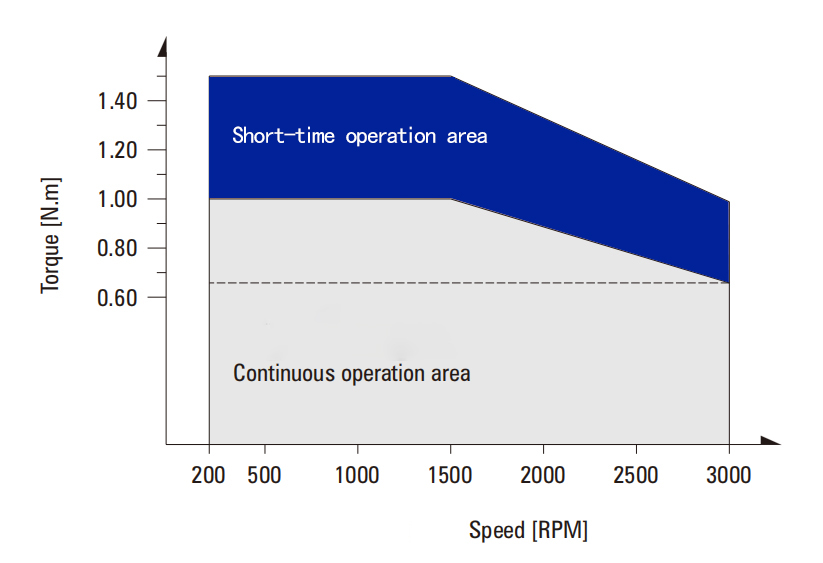

Characteristic Curve Of Motor
Low Voltage Pinouts
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | |
|---|---|---|---|---|---|---|---|---|
| Green (thick) | Black (fine) | Blue (fine) | Red (fine) | Yellow (thick) | Blue (thick) | Green (fine) | Yellow (fine) | |
| V | GND | Hw | Vcc+5V | U | W | Hv | Hu |
Key Features
- 104L Series of Brushless DC Motor: OEM motion component configured for your application
- Custom shafts, windings, and mounts available
- US engineering support with overseas manufacturing cost structure
- Prototype to production volumes
Configuration Options
- Custom shafts, windings, encoders, and cable assemblies on request
- Prototype samples through production volumes
Applications
- AGV/AMR
- Robotics
- Medical pumps
- Factory automation
- Battery systems
When to Choose This Model
Choose BLDC gearmotors when you need high efficiency, long life, and quiet operation in a compact package.
