BLDC Servo Motors35MM SERVO MOTOR 14SYNE

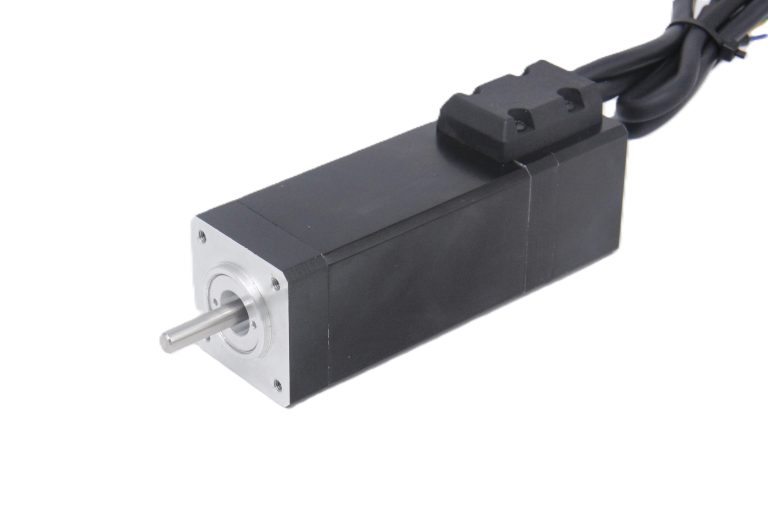

35mm Servo Motor 14SYNE
The 35mm Servo Motor 14SYNE is available from Source Engineering Inc. in Santa Clara, CA for OEM bldc servo motors programs. Contact us for sizing, customization, samples, and volume pricing.
35mm Servo Motor 14SYNE
BLDC Servo Motor
35mm Square Servo Motor 14SYNE Low Voltage Series
- 3 Phase
- Encoder resolution: 1000, 1024, 2500/17bit
Technical Specifications
| Motor Model | 14SYNE483730 | 14SYNE485630 | 14SYNE487430 |
|---|---|---|---|
| Number of Phase | 3 | ||
| Number of Poles | 8 | ||
| Rated Voltage(VDC) | 48 | ||
| Rated Speed(Rpm) | 3000 | ||
| Rated Torque(N.m) | 0.12 | 0.18 | 0.24 |
| Rated Power(W) | 37 | 56 | 74 |
| Rated Current(A) | 1.2 | 1.8 | 2.4 |
| Peak Current(A) | 3.6 | 5.4 | 7.2 |
| Peak Torque(N.M) | 0.36 | 0.54 | 0.72 |
| Rotor Inertia(kg.cm2) | 0.025 | 0.03 | 0.035 |
| Torque Constant(N.m/A) | 0.26 | 0.26 | 0.26 |
| Torque Constant(V/krpm) | 4.2 | 4.2 | 4.2 |
| Line-Line Resistance(Ω) | 3.3 | 2.8 | 2.2 |
| Line-Line Inductance(mH) | 3 | 2.5 | 2 |
| L Length(mm) | 59 | 69 | 79 |
| Weight(kg) | 0.35 | 0.45 | 0.55 |
| (P/R）Encoder Resolution | 1000, 1024, 2500, 4096, 17bit | ||
Wiring Diagram

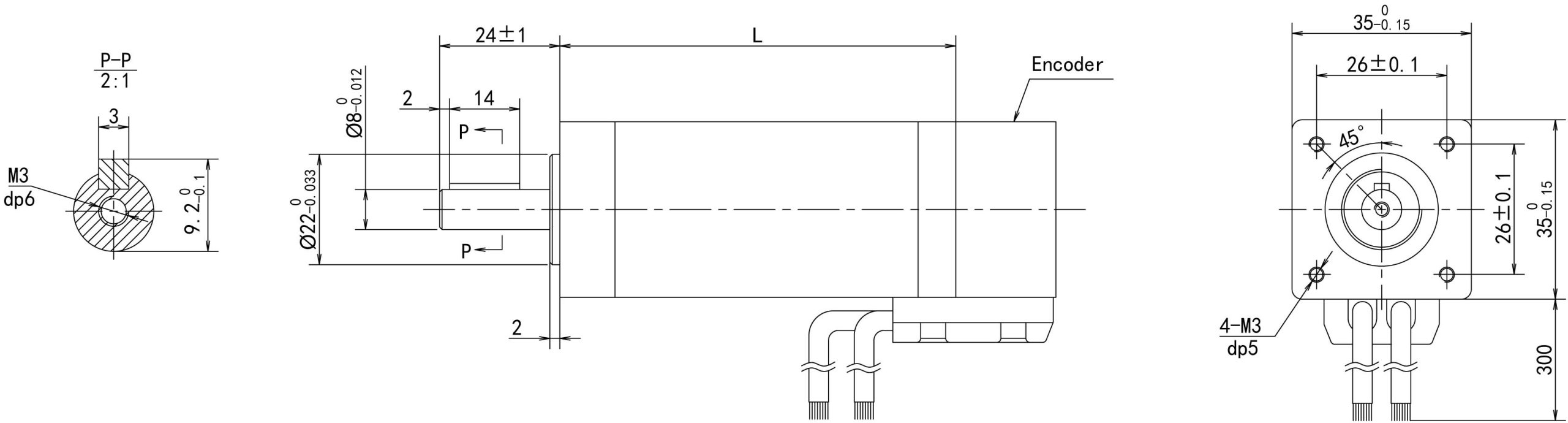

Motor Dimensions (mm)
OEM Service
Source Engineering has established a team of manufacturing partners in Asia to provide our customers with high-quality cost-effective Motors, Gearmotor and Motion Control products for the OEM marketplace.
Key Features
- 35mm Servo Motor 14SYNE: OEM motion component configured for your application
- Custom shafts, windings, and mounts available
- US engineering support with overseas manufacturing cost structure
- Prototype to production volumes
Configuration Options
- Custom shafts, windings, encoders, and cable assemblies on request
- Prototype samples through production volumes
Downloads
Applications
- Robotics
- Automation
- Battery-powered servos
- Medical
- Packaging
When to Choose This Model
Choose BLDC servo motors for closed-loop low-voltage motion with encoder feedback.
Frequently Asked Questions
What is the 35mm Servo Motor 14SYNE used for?
The 35mm Servo Motor 14SYNE is used in OEM motion-control applications. Contact us to match torque, speed, and mounting to your design.
Can you customize this model?
Yes. Shafts, windings, ratios, encoders, cables, and mounting interfaces can be customized for OEM programs.
How do I get pricing and lead time?
Request a quote with your quantity, target specs, and timeline. We typically respond within one business day.
