110mm Servo Motor 43SSTE
The 110mm Servo Motor 43SSTE is available from Source Engineering Inc. in Santa Clara, CA for OEM bldc servo motors programs. Contact us for sizing, customization, samples, and volume pricing.
110mm Servo Motor 43SSTE
BLDC Servo Motor
110mm Servo Motor 43SSTE Low Voltage Series
- 3 Phase
- Encoder resolution: 1000, 1024, 2500/17bit, 23bit
Technical Specifications
| Motor Model | 43SSTE 486030 | 43SSTE 481230 | 43SSTE 2206030 | 43SSTE 2201230 | 43SSTE 2201530 | 43SSTE 2201830 |
|---|---|---|---|---|---|---|
| Number of Phase | 3 | 3 | ||||
| Number of Poles | 8 | 8 | ||||
| Rated Voltage(VAC) | 48 | 220 | ||||
| Rated Speed(Rpm) | 3000 | 3000 | ||||
| Rated Torque(N.m) | 2 | 4 | 2 | 4 | 5 | 6 |
| Rated Power(W) | 600 | 1200 | 600 | 1200 | 1500 | 1800 |
| Rated Current(A) | 17 | 34 | 2.5 | 5 | 5.5 | 6 |
| Peak Current(A) | 34 | 68 | 7.5 | 15 | 16.5 | 18 |
| Peak Torque(N.M) | 6 | 12 | 6 | 12 | 15 | 18 |
| Rotor Inertia(kg.cm2) | 3.1 | 5.4 | 3.1 | 5.4 | 6.4 | 7.6 |
| Torque Constant(N.m/A) | 0.11 | 0.11 | 0.8 | 0.8 | 0.9 | 1 |
| Torque Constant(V/krpm) | 9 | 9 | 56 | 54 | 56 | 60 |
| Line-Line Resistance(Ω) | 0.4 | 0.6 | 3.6 | 1.09 | 0.9 | 0.81 |
| Line-Line Inductance(mH) | 0.3 | 0.5 | 8.32 | 3.3 | 2.95 | 2.59 |
| Length(mm) | 102 | 132 | 102 | 132 | 147 | 162 |
| Weight(kg) | 4.5 | 5.5 | 4.5 | 5.5 | 5.5 | 6.7 |
| (P/R) Encoder Resolution | 1000, 1024, 2500/17bit, 23bit | |||||

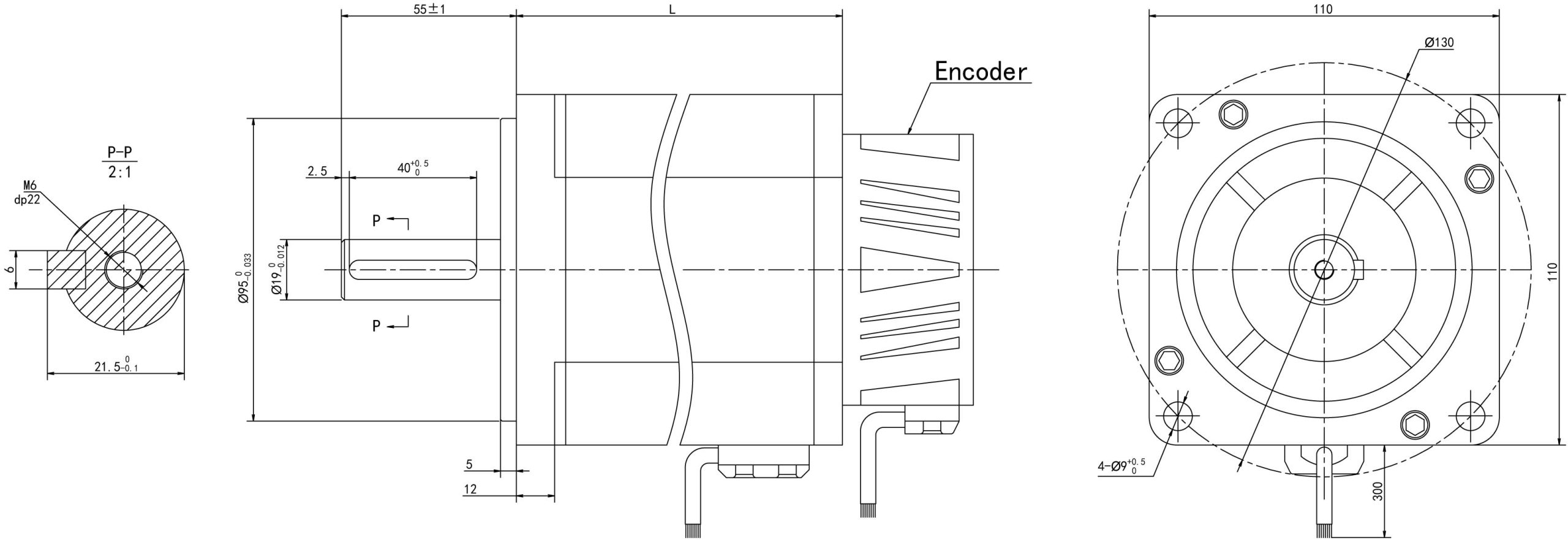

Motor Dimensions (mm)
OEM Service
Source Engineering has established a team of manufacturing partners in Asia to provide our customers with high-quality cost-effective Motors, Gearmotor and Motion Control products for the OEM marketplace.
Key Features
- 110mm Servo Motor 43SSTE: OEM motion component configured for your application
- Custom shafts, windings, and mounts available
- US engineering support with overseas manufacturing cost structure
- Prototype to production volumes
Configuration Options
- Custom shafts, windings, encoders, and cable assemblies on request
- Prototype samples through production volumes
Downloads
Applications
- Robotics
- Automation
- Battery-powered servos
- Medical
- Packaging
When to Choose This Model
Choose BLDC servo motors for closed-loop low-voltage motion with encoder feedback.
