BLDC Servo Motors34SSTT481230 EC625X
34SSTT481230-EC625X
The 34SSTT481230-EC625X is available from Source Engineering Inc. in Santa Clara, CA for OEM bldc servo motors programs. Contact us for sizing, customization, samples, and volume pricing.
34SSTT481230-EC625X
Product Details
- NEMA 34
- 3 Phase
- 10 Pole
- Length: 155mm
- Voltage: 48 VDC
- Power: 1200W
- Speed : 3000
- Encoder resolution: 1000, 1024, 2500/17bit, 23bit
Note: Motor can be customized to meet the customers requirements.
Technical Specifications
| Motor Specification | 34SSTT481230-EC625X |
|---|---|
| Number of phase | 3 |
| Number of Poles | 10 |
| Rated Voltage | 48VDC |
| Rated Speed | 3000rpm |
| Rated Torque | 3.82N. m |
| Rated Power | 1200W |
| Rated Current | 34A |
| Peak Current | 68A |
| Peak Torque | 7.64N. m |
| Resistance | TBD |
| Inductance | TBD |
| Torque Constant | 0.11Nm/A |
| Voltage Constant | 10/V/kRPM |
| Rotor Inertia | 3.5Kg. cm2 |
| Weight | 5.2Kg |
| Insulation Class | Class B |
| Dielectric Strength | 500VDC for one minute |
| Insulation Resistance | 100MΩ Min., 500VDC |
Wiring Diagram

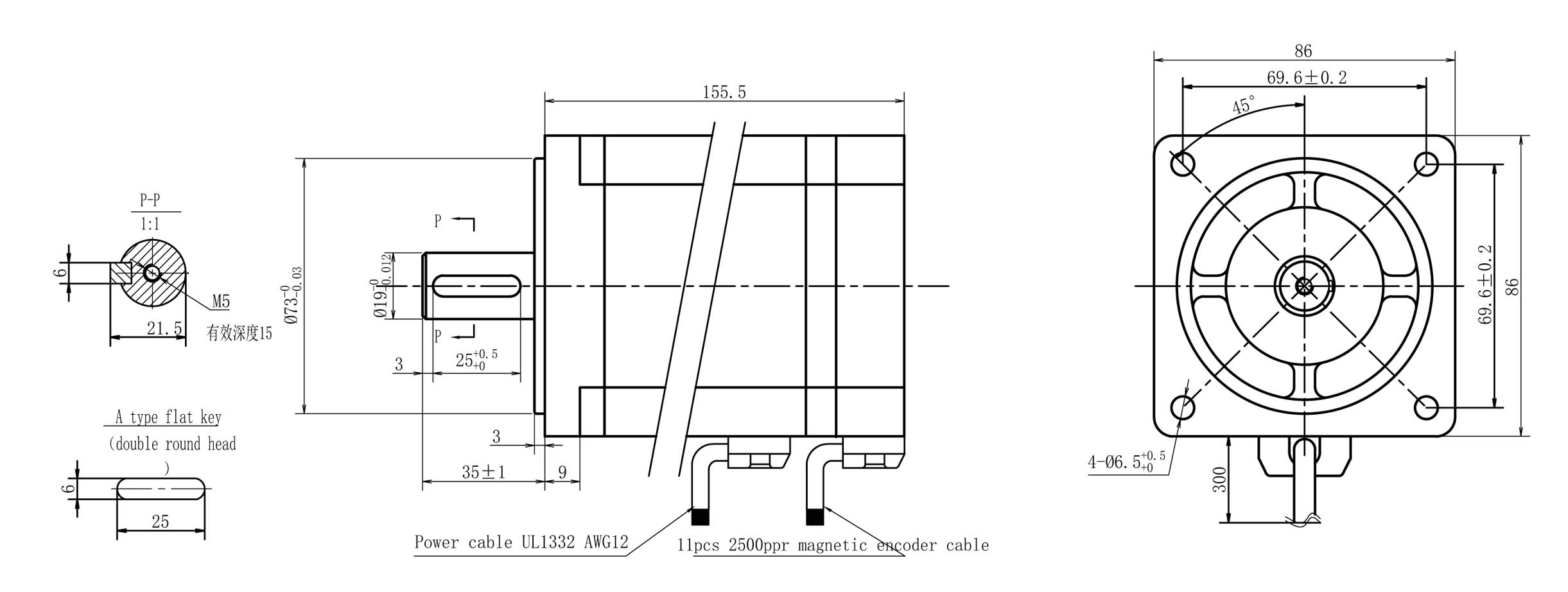

Motor Dimensions (mm)
OEM Service
Source Engineering has established a team of manufacturing partners in Asia to provide our customers with high-quality cost-effective Motors, Gearmotor and Motion Control products for the OEM marketplace.
Key Features
- 34SSTT481230-EC625X: OEM motion component configured for your application
- Custom shafts, windings, and mounts available
- US engineering support with overseas manufacturing cost structure
- Prototype to production volumes
Configuration Options
- Custom shafts, windings, encoders, and cable assemblies on request
- Prototype samples through production volumes
Downloads
Applications
- Robotics
- Automation
- Battery-powered servos
- Medical
- Packaging
When to Choose This Model
Choose BLDC servo motors for closed-loop low-voltage motion with encoder feedback.
Frequently Asked Questions
What is the 34SSTT481230-EC625X used for?
The 34SSTT481230-EC625X is used in OEM motion-control applications. Contact us to match torque, speed, and mounting to your design.
Can you customize this model?
Yes. Shafts, windings, ratios, encoders, cables, and mounting interfaces can be customized for OEM programs.
How do I get pricing and lead time?
Request a quote with your quantity, target specs, and timeline. We typically respond within one business day.
