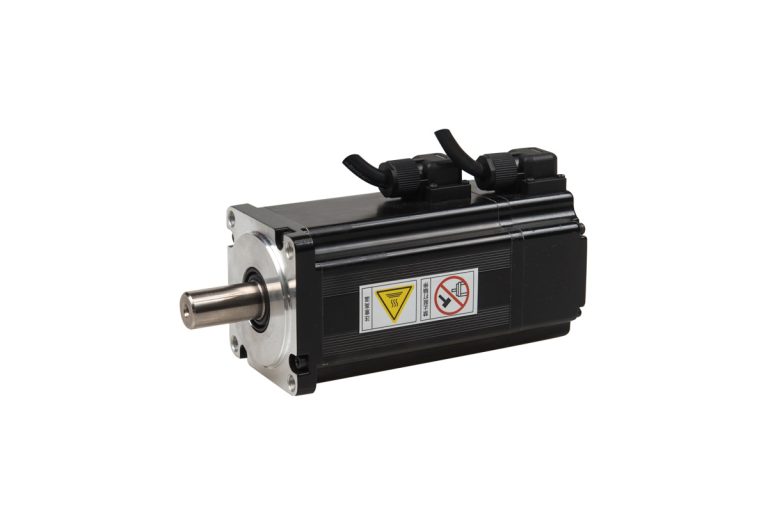

BLDC Servo Motors24SDTT482030 EC625X 1
24SDTT482030-EC625X-1
The 24SDTT482030-EC625X-1 is available from Source Engineering Inc. in Santa Clara, CA for OEM bldc servo motors programs. Contact us for sizing, customization, samples, and volume pricing.
24SDTT482030-EC625X-1
Product Details
- 60mm
- 3 Phase
- 10 Pole
- Length: 76mm
- Voltage: 48 VDC
- Power: 200W
- Speed : 3000
- Encoder resolution: 1000, 1024, 2500/17bit, 23bit
Note: Motor can be customized to meet the customers requirements.
Technical Specifications
| Motor Specification | 24SDTT482030-EC625X-1 |
|---|---|
| Number of phase | 3 |
| Number of Poles | 10 |
| Rated Voltage | 48VDC |
| Rated Speed | 3000rpm |
| Rated Torque | 0.64N. m |
| Rated Power | 200W |
| Rated Current | 5.6A |
| Peak Current | 11.2A |
| Peak Torque | 1.28N.m |
| Resistance | TBD |
| Inductance | TBD |
| Torque Constant | 0.11Nm/A |
| Voltage Constant | 10.5V/kRPM |
| Rotor Inertia | 0.25Kg. cm2 |
| Weight | 0.5Kg |
| Insulation Class | Class B |
| Dielectric Strength | 500VDC for one minute |
| Insulation Resistance | 100MΩMin., 500VDC |
Wiring Diagram

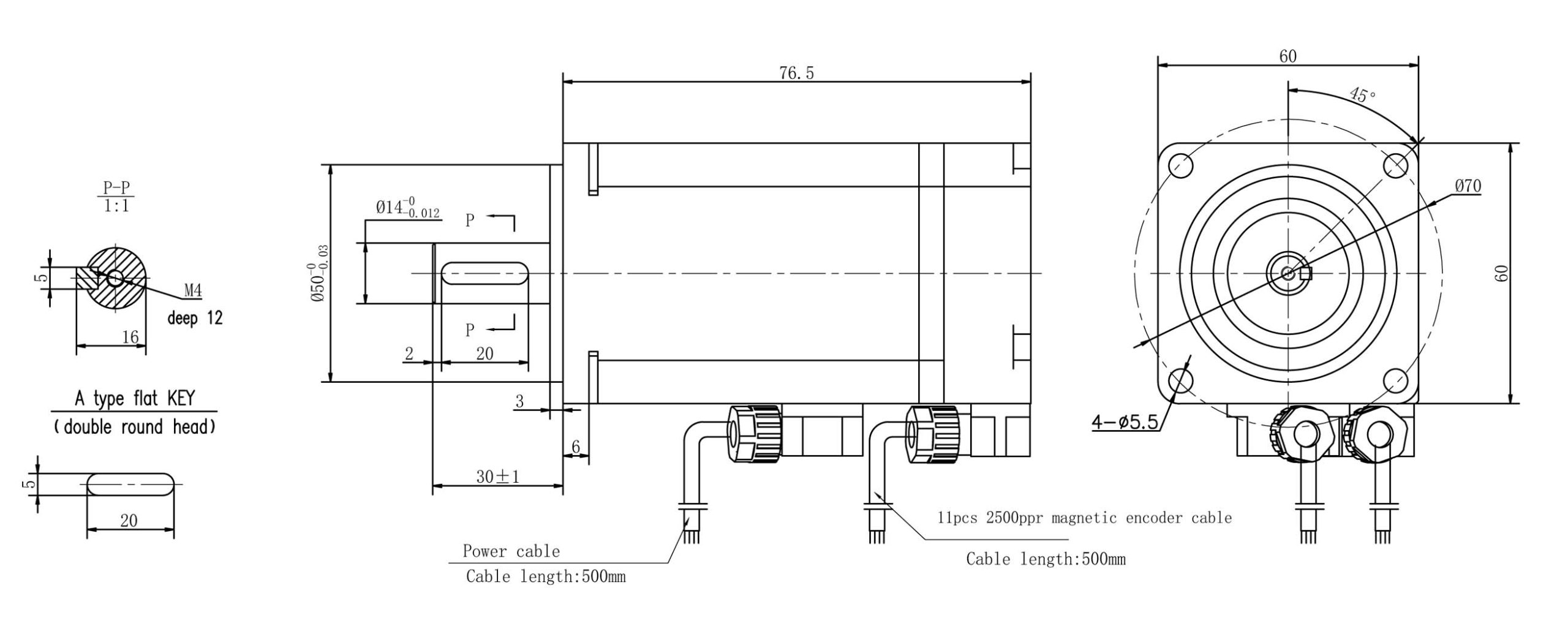

Motor Dimensions (mm)
OEM Service
Source Engineering has established a team of manufacturing partners in Asia to provide our customers with high-quality cost-effective Motors, Gearmotor and Motion Control products for the OEM marketplace.
Key Features
- 24SDTT482030-EC625X-1: OEM motion component configured for your application
- Custom shafts, windings, and mounts available
- US engineering support with overseas manufacturing cost structure
- Prototype to production volumes
Configuration Options
- Custom shafts, windings, encoders, and cable assemblies on request
- Prototype samples through production volumes
Downloads
Applications
- Robotics
- Automation
- Battery-powered servos
- Medical
- Packaging
When to Choose This Model
Choose BLDC servo motors for closed-loop low-voltage motion with encoder feedback.
