AC Gearmotors120W INDUCTION
120W Induction AC Motor/Gear Motor
The 120W Induction AC Motor/Gear Motor is available from Source Engineering Inc. in Santa Clara, CA for OEM ac gearmotors programs. Contact us for sizing, customization, samples, and volume pricing.
120W Induction AC Motor/Gear Motor
120W Induction AC Gear Motor
6IK
104
120
100-380
Right Angle Type
3-200
Motor Specification
| Model · Type Upper: Pinion Shaft Below: Round Shaft | Output power W | Voltage V | Frequency Hz | Current A | Starting Torque mN.m | Rated Torque mN.m | Rated Speed r/min | Capacitor μF | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Lead Wire Type Dimensions① | Terminal Box Type Dimensions② | |||||||||
| 6IK120GU-AF | 6IK120GU-AFT | 120 | 1ph 100 | 50 | 2.10 | 600 | 930 | 1250 | 30 | |
| 60 | 2.50 | 750 | 1550 | |||||||
| 6IK120GU-EF | 6IK120GU-EFT | 120 | 1ph 110 | 60 | 1.70 | 600 | 750 | 1550 | 20 | |
| 1ph 120 | 1.80 | |||||||||
| 6IK120GU-CF | 6IK120GU-CFT | 120 | 1ph 220 | 50 | 0.95 | 750 | 930 | 1250 | 8.0 | |
| 1ph 230 | ||||||||||
| 6IK120GU-HF | 6IK120GU-HFT | 120 | 1ph 220 | 60 | 0.95 | 700 | 750 | 1550 | 8.0 | |
| 1ph 230 | 1.00 | |||||||||
| 6IK120GU-SF | 6IK120GU-SFT | 120 | 3ph 220 | 50 | 0.75 | 2200 | 890 | 1300 | ||
| 60 | 0.70 | 2000 | 730 | 1600 | ||||||
| 6IK120GU-S3F | 6IK120GU-S3FT | 120 | 3ph 380 | 50 | 0.43 | 2200 | 890 | 1300 | ||
| 60 | 0.40 | 2000 | 730 | 1600 | ||||||
- When the motor is approved under various safety standards, the model name on the nameplate is the approved model name.
- Note: “-A” it means the voltage 110V, the assembly capacitor value it is according the label.
Gear Motor Specification: ( N.m) / (kgf.cm)
| Type Motor/Gearhead | Gear Ratio | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Speed r/min | 50Hz | 200 | 166 | 120 | 100 | 83 | 60 | 50 | 42 | 30 | 25 | 20 | 16 | 15 | 12 | 10 | 8 | ||
| 60Hz | 240 | 200 | 144 | 120 | 100 | 72 | 60 | 50 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 | |||
| 6IK120GU-AF□ 6IK120GU-EF□ 6IK120GU-CF□ 6IK120GU-HF□ 6IK120GU-SF□ 6IK120GU-S3F□ | 6GU□RC 6GU□RT | Allowance Torque | 50Hz | 4.26 | 5.68 | 7.89 | 9.47 | 11.4 | 15.8 | 18.9 | 22.7 | 28.4 | 34.1 | 42.6 | 51.1 | 56.8 | 60.0 | 60.0 | 60.0 |
| 43.5 | 58.0 | 80.5 | 96.6 | 116 | 161 | 193 | 232 | 290 | 348 | 435 | 522 | 580 | 600 | 600 | 600 | ||||
| 60Hz | 3.44 | 4.58 | 6.36 | 7.64 | 9.16 | 12.7 | 15.3 | 18.3 | 22.9 | 27.5 | 34.4 | 41.2 | 45.8 | 55.0 | 60.0 | 60.0 | |||
| 35.1 | 46.7 | 64.9 | 77.9 | 93.5 | 130 | 156 | 187 | 234 | 280 | 351 | 421 | 467 | 561 | 600 | 600 | ||||

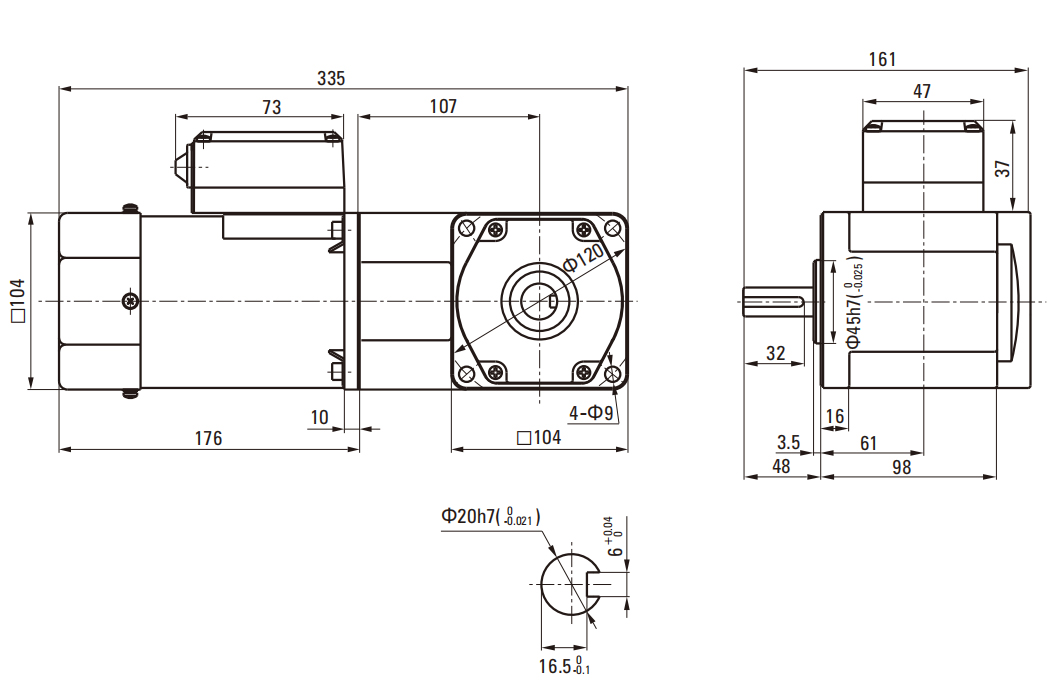

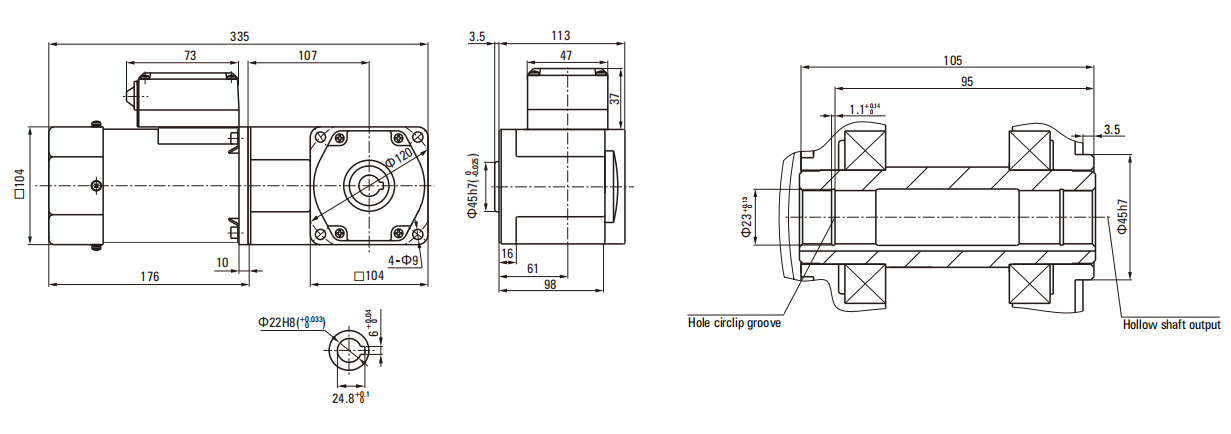

Dimensions (Unit: mm)
- Motor Size Chart
6IK120GU-AF□/6GU□RC 6IK120GU-CF□/6GU□RC 6IK120GU-SF□/6GU□RC 6IK120GU-EF□/6GU□RC 6IK120GU-HF□/6GU□RC 6IK120GU-S3F□/6GU□RC
6IK120GU-AF□/6GU□RT 6IK120GU-CF□/6GU□RT 5IK120GU-SF□/6GU□RT 6IK120GU-EF□/6GU□RT 6IK120GU-HF□/6GU□RT 5IK120GU-S3F□/6GU□RT
Key Features
- 120W Induction AC Motor/Gear Motor: OEM motion component configured for your application
- Custom shafts, windings, and mounts available
- US engineering support with overseas manufacturing cost structure
- Prototype to production volumes
Configuration Options
- Custom shafts, windings, encoders, and cable assemblies on request
- Prototype samples through production volumes
Applications
- Conveyors
- Pumps
- Packaging
- Industrial machinery
- Material handling
When to Choose This Model
Choose AC gearmotors for continuous-duty industrial drives on mains power with parallel or right-angle gearheads.
