120W Induction AC Motor/Gear Motor

The 120W Induction AC Motor/Gear Motor is available from Source Engineering Inc. in Santa Clara, CA for OEM ac gearmotors programs. Contact us for sizing, customization, samples, and volume pricing.

Request a Quote(408) 980-9822
120W Induction AC Motor/Gear Motor

120W Induction AC Motor/Gear Motor

120W Induction AC Gear Motor

13 5IK 90 120 100-380 Parallel shaft 3-200

Motor Specification

Model •Type Upper:Pinion Shaft Below:Round ShaftOutput power WVoltage VFrequency HzCurrent AStarting Torque mN.mRated Torque mN.mRated Speed r/minCapacitor μF
Lead Wire Type Dimensions ①Terminal Box Type Dimensions ②
5IK120GU-AF (5IK120A-AF)5IK120GU-AFT (5IK120A-AFT)1201ph 100502.1600930125030.0
602.57501550
5IK120GU-EF (5IK120A-EF )5IK120GU-EFT (5IK120A-EFT)1201ph 110601.65600750155025.0
1ph 1201.80
5IK120GU-CF (5IK120A-CF)5IK120GU-CFT (5IK120A-CFT)1201ph 220501.065093012507.0
1ph 2300.95
5IK120GU-HF (5IK120A-HF)5IK120GU-HFT (5IK120A-HFT)1201ph 220601.06007501550
1ph 2300.95
5IK120GU-SF (5IK120A-SF)5IK120GU-SFT (5IK120A-SFT)1203ph 220500.7018509301250–
600.6016007501550
5IK120GU-S3F (5IK120A-S3F)5IK120GU-S3FT (5IK120A-S3FT)1203ph 380500.4018509301250–
600.3516007501550

Gear Motor Specification: ( N.m) / (kgf.cm)

Type Motor/GearheadGear Ratio33.6567.5912.5151825303650607590100120150180
Speed r/min50Hz50041730025020016612010083605042302520161512108
60Hz6005003603002402001441201007260503630242018151210
5IK120GU-AF□5GU□RC 5GU□RTAllowable Torque50Hz1.702.052.843.414.735.687.899.4711.415.818.920.020.020.020.020.020.020.020.020.0
5IK120GU-EF□
5IK120GU-CF□
5IK120GU-HF□17.420.929.034.848.358.080.596.6116161193200200200200200200200200200
5IK120GU-SF□60Hz1.371.652.292.753.824.586.367.649.1612.715.316.520.020.020.020.020.020.020.020.0
5IK120GU-S3F□14.016.823.428.039.046.764.977.993.5130156168200200200200200200200200

Dimensions (Unit: mm)

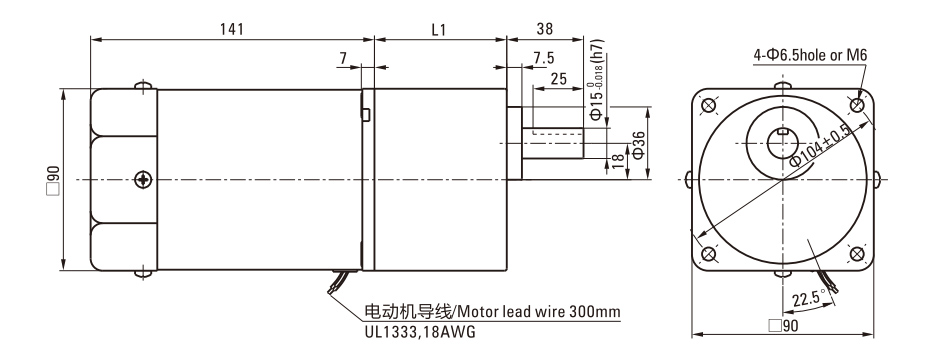

  • Lead Wiring Type①
120W Induction AC Motor/Gear Motor drawing
Motor ModelGearhead ModelGear RatioL1
5IK120GU-AF 5IK120GU-EF 5IK120GU-CF 5IK120GU-HF 5IK120GU-SF 5IK120GU-S3F5GU□KB3~20065.5

Enter the gear ratio in the box(□)within the model name

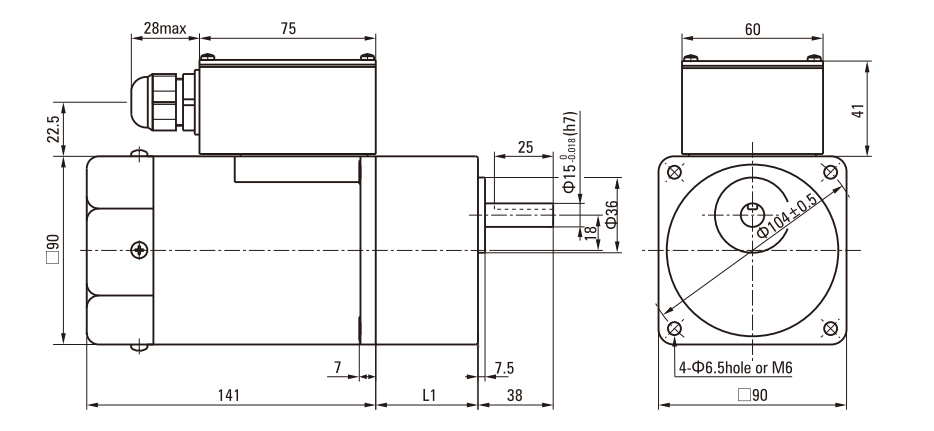

  • Terminal Box Type②
120W Induction AC Motor/Gear Motor drawing

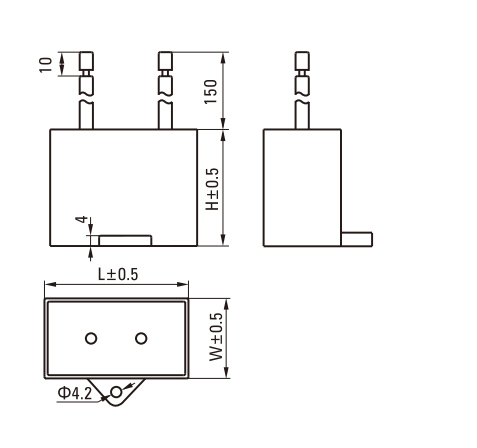

Capacitor

ModelCapacitor ModelLWH
Pinion ShaftRound Shaft
5IK120GU-AF□5IK120A-AF□ZD300CFAUL582638
5IK120GU-EF□5IK120A-EF□ZD250CFAUL472737
5IK120GU-CF□5IK120A-CF□ZD70BFAUL472437
120W Induction AC Motor/Gear Motor drawing

Key Features

  • 120W Induction AC Motor/Gear Motor: OEM motion component configured for your application
  • Custom shafts, windings, and mounts available
  • US engineering support with overseas manufacturing cost structure
  • Prototype to production volumes

Configuration Options

  • Custom shafts, windings, encoders, and cable assemblies on request
  • Prototype samples through production volumes

Applications

  • Conveyors
  • Pumps
  • Packaging
  • Industrial machinery
  • Material handling

When to Choose This Model

Choose AC gearmotors for continuous-duty industrial drives on mains power with parallel or right-angle gearheads.

Frequently Asked Questions

What is the 120W Induction AC Motor/Gear Motor used for?

The 120W Induction AC Motor/Gear Motor is used in OEM motion-control applications. Contact us to match torque, speed, and mounting to your design.

Can you customize this model?

Yes. Shafts, windings, ratios, encoders, cables, and mounting interfaces can be customized for OEM programs.

How do I get pricing and lead time?

Request a quote with your quantity, target specs, and timeline. We typically respond within one business day.
