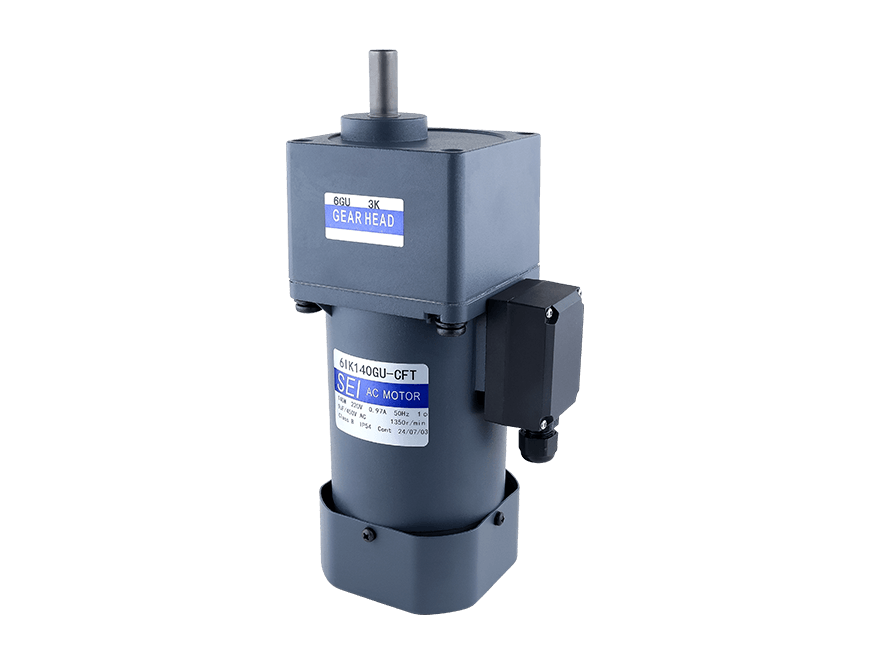

140W Induction AC Motor/Gear Motor
The 140W Induction AC Motor/Gear Motor is available from Source Engineering Inc. in Santa Clara, CA for OEM ac gearmotors programs. Contact us for sizing, customization, samples, and volume pricing.
140W Induction AC Motor/Gear Motor
140W Induction AC Gear Motor
12 6IK 104 140 100-380 Parallel shaft 3-200
Motor Specification
| Model •Type Upper:Pinion Shaft Below:Round Shaft | Output power W | Voltage V | Frequency Hz | Current A | Starting Torque mN.m | Rated Torque mN.m | Rated Speed r/min | Capacitor μF | |
|---|---|---|---|---|---|---|---|---|---|
| Lead Wire Type Dimensions ① | Terminal Box Type Dimensions ② | ||||||||
| 6IK140GU-AF (6IK140A-AF) | 6IKH0GU-AFT (6IK140A-AFT) | 140 | 1ph 100 | 50 | 2.7 | 700 | 1080 | 1250 | 35.0 |
| 60 | 3.0 | 870 | 1550 | ||||||
| 6IK140GU-EF (6IKH0A-EF) | 6IK140GU-EFT (6IK140A-EFT) | 140 | 1ph 110 | 60 | 1.80 | 700 | 850 | 1600 | 25.0 |
| 1ph 120 | 1.95 | ||||||||
| 6IK140GU-CF (6IK140A-CF) | 6IK140GU-CFT (6IK140A-CFT) | 140 | 1ph 220 | 50 | 1.05 | 850 | 1040 | 1350 | 10.0 |
| 1ph 230 | 1.15 | ||||||||
| 6IK140GU-HF (6IK140A-HF ) | 6IK140GU-HFT (6IK140A-HFT) | 140 | 1ph 220 | 60 | 1.05 | 750 | 850 | 1600 | |
| 1ph 230 | 1.15 | ||||||||
| 6IK140GU-SF (6IKH0A-SF) | 6IK140GU-SFT (6IK140A-SFT) | 140 | 3ph 220 | 50 | 0.85 | 2700 | 1080 | 1250 | – |
| 60 | 0.75 | 2200 | 870 | 1550 | |||||
| 6IK140GU-S3F (6IK140A-S3F) | 6IK140GU-S3FT (6IK140A-S3FT) | 140 | 3ph 380 | 50 | 0.49 | 2700 | 1080 | 1250 | – |
| 60 | 0.43 | 2200 | 870 | 1550 | |||||
Gear Motor Specification: ( N.m) / (kgf.cm)
| Type Motor/Gearhead | Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 3.6 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Speed r/min | 50Hz | 500 | 417 | 300 | 250 | 200 | 166 | 120 | 100 | 83 | 60 | 50 | 417 | 30 | 25 | 20 | 16 | 15 | 12 | 10 | 8 | ||
| 60Hz | 600 | 500 | 360 | 300 | 240 | 200 | 144 | 120 | 100 | 72 | 60 | 500 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 | |||
| 6IK140GU-AF□ 6IK140GU-EF□ 6IK140GU-CF□ 6IK140GU-HF□ 6IK140GU-SF□6IK140GU-S3F□ | 6GU□RC 6GU□RT | Allowable Torque | 50Hz | 1.99 | 2.39 | 3.31 | 3.98 | 4.97 | 6.63 | 9.21 | 11.0 | 13.3 | 18.4 | 22.1 | 26.5 | 33.1 | 39.8 | 49.7 | 59.6 | 60.0 | 60.0 | 60.0 | 60.0 |
| 20.3 | 24.3 | 33.8 | 40.6 | 50.7 | 67.6 | 93.9 | 113 | 135 | 188 | 225 | 271 | 338 | 406 | 507 | 600 | 600 | 600 | 600 | 600 | ||||
| 60Hz | 1.60 | 1.92 | 2.67 | 3.21 | 4.01 | 5.34 | 7.42 | 8.91 | 10.7 | 14.8 | 17.8 | 21.4 | 26.7 | 32.1 | 40.1 | 48.1 | 53.4 | 60.0 | 60.0 | 60.0 | |||
| 16.4 | 19.6 | 27.3 | 32.7 | 40.9 | 54.5 | 75.8 | 90.9 | 109 | 152 | 182 | 218 | 273 | 327 | 409 | 491 | 545 | 600 | 600 | 600 | ||||

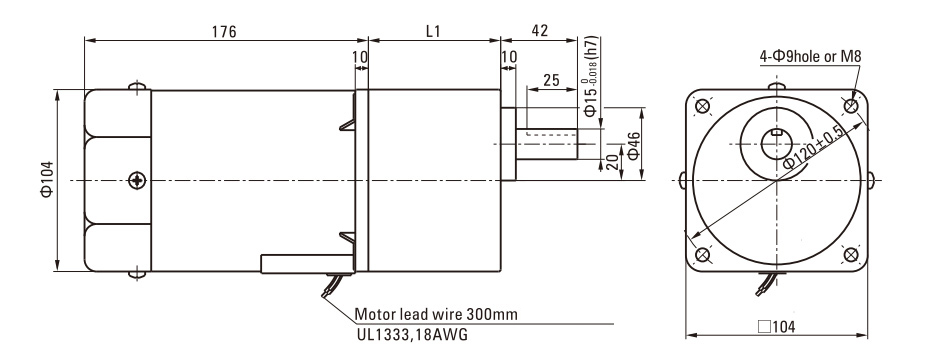

Dimensions (Unit: mm)
- Lead Wiring Type①
| Motor Model | Gearhead Model | Gear Ratio | L1 |
|---|---|---|---|
| 6IK140GU-AF | 6GU□K | 3~200 | 72 |
| 6IK140GU-EF | |||
| 6IK140GU-CF | |||
| 6IK140GU-HF | |||
| 6IK140GU-SF | |||
| 6IK140GU-S3F |
Enter the gear ratio in the box (□) within the model name

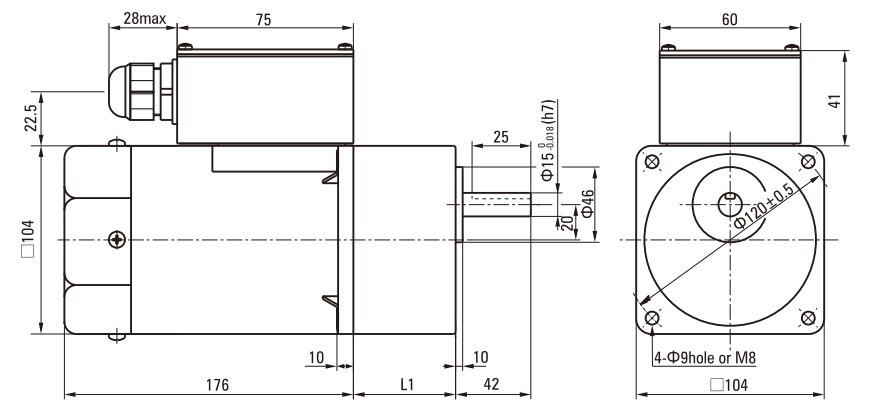

- Terminal Box Type②

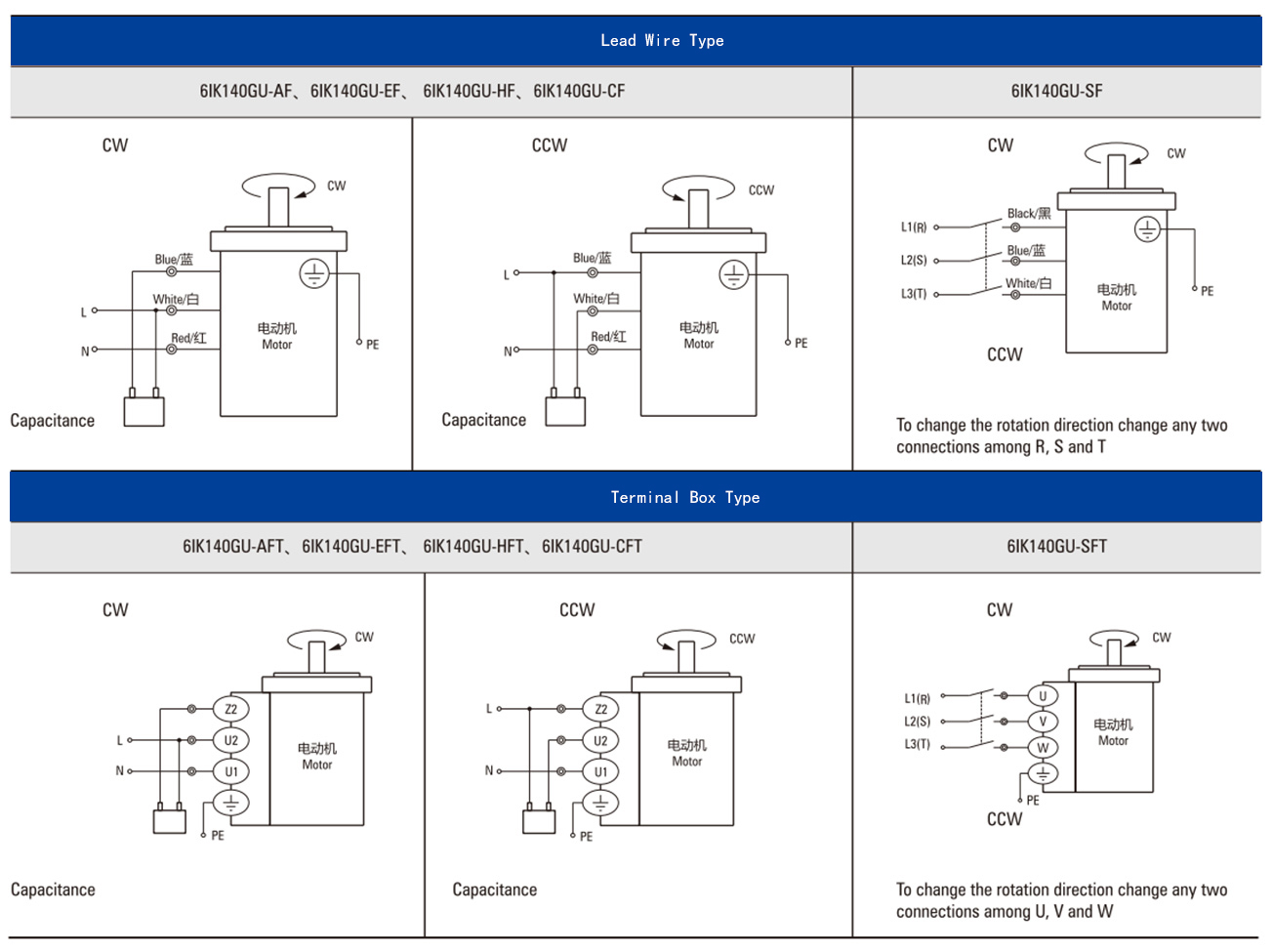

Wiring Diagram
- The direction of motor rotation is as viewed from the shaft end of motor. CW represents the clockwise direction，while CCW represents the counterclockwise direction.
- Name indicated in the list is pinion shaft type，also valid for the equivalent round shaft type.
Note:
Change the direction of single-phase motor rotation only after bring the motor to a stop. If an attempt is made to change the direction of rotation while the motor is rotating, motor may ignore reversing command or change its direction of rotation after some delay.

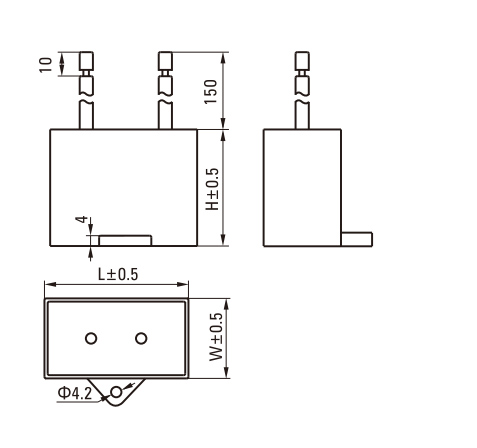

Capacitor
| Model | Capacitor Model | L | W | H | |
|---|---|---|---|---|---|
| Pinion Shaft | Round Shaft | ||||
| 6IK140GU-AF | 6IK140A-AF | ZD350CFAUL | 58 | 30 | 40 |
| 6IK140GU-EF | 6IK140A-EF | ZD250CFAUL | 47 | 27 | 37 |
| 6IK140GU-CF | 6IK140A-CF | ZD100BFAUL | 58 | 26 | 38 |
- Note: Conventional capacitor is a lead wire type. Inserted 187# is optional
- Enter the code that represents the terminal box type (T) in the box (□) within the model name
Key Features
- 140W Induction AC Motor/Gear Motor: OEM motion component configured for your application
- Custom shafts, windings, and mounts available
- US engineering support with overseas manufacturing cost structure
- Prototype to production volumes
Configuration Options
- Custom shafts, windings, encoders, and cable assemblies on request
- Prototype samples through production volumes
Applications
- Conveyors
- Pumps
- Packaging
- Industrial machinery
- Material handling
When to Choose This Model
Choose AC gearmotors for continuous-duty industrial drives on mains power with parallel or right-angle gearheads.
