120W Induction AC Motor/Gear Motor 90mm
The 120W Induction AC Motor/Gear Motor 90mm is available from Source Engineering Inc. in Santa Clara, CA for OEM ac gearmotors programs. Contact us for sizing, customization, samples, and volume pricing.

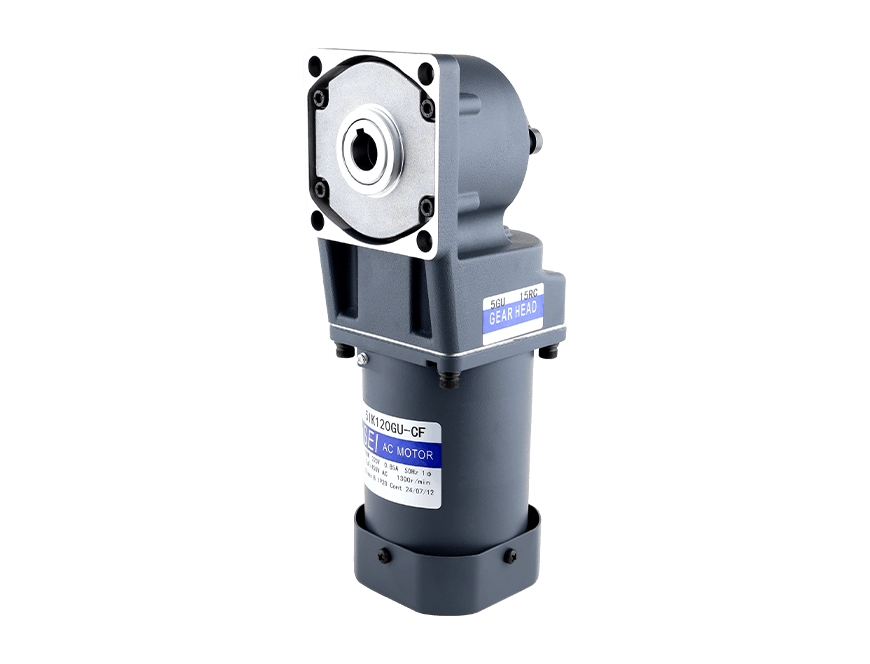

120W Induction AC Motor/Gear Motor 90mm
120W Induction AC Gear Motor 90mm
5IK
90
120
100-380
Right Angle Type
3-200
Motor Specification
| Model · Type Upper: Pinion Shaft Below: Round Shaft | Output power W | Voltage V | Frequency Hz | Current A | Starting Torque mN.m | Rated Torque mN.m | Rated Speed r/min | Capacitor μF | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Lead Wire Type Dimensions① | Terminal Box Type Dimensions② | |||||||||
| 5IK120GU-AF | 5IK120GU-AFT | 120 | 1ph 100 | 50 | 2.10 | 600 | 930 | 1250 | 30 | |
| 60 | 2.50 | 750 | 1550 | |||||||
| 5IK120GU-EF | 5IK120GU-EFT | 120 | 1ph 110 | 60 | 1.65 | 600 | 750 | 1550 | 25 | |
| 1ph 120 | 1.80 | |||||||||
| 5IK120GU-CF | 5IK120GU-CFT | 120 | 1ph 220 | 50 | 1.00 | 650 | 930 | 1250 | 7.0 | |
| 1ph 230 | 0.95 | |||||||||
| 5IK120GU-HF | 5IK120GU-HFT | 120 | 1ph 220 | 60 | 1.00 | 600 | 750 | 1550 | 7.0 | |
| 1ph 230 | 0.95 | |||||||||
| 5IK120GU-SF | 5IK120GU-SFT | 120 | 3ph 220 | 50 | 0.70 | 1850 | 930 | 1250 | – | |
| 60 | 0.60 | 1600 | 750 | 1550 | ||||||
| 5IK120GU-S3F | 5IK120GU-S3FT | 120 | 3ph 380 | 50 | 0.40 | 1850 | 930 | 1250 | – | |
| 60 | 0.35 | 1600 | 750 | 1550 | ||||||
- When the motor is approved under various safety standards, the model name on the nameplate is the approved model name.
- Note: “-A” it means the voltage 110V, the assembly capacitor value it is according the label.
Gear Motor Specification: ( N.m) / (kgf.cm)
| Type Motor/Gearhead | Gear Ratio | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Speed r/min | 50Hz | 200 | 166 | 120 | 100 | 83 | 60 | 50 | 42 | 30 | 25 | 20 | 16 | 15 | 12 | 10 | 8 | |||
| 60Hz | 240 | 200 | 144 | 120 | 100 | 72 | 60 | 50 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 | ||||
| 5IK120GU-AF□ 5IK120GU-EF□ 5IK120GU-CF□ 5IK120GU-HF□ 5IK120GU-SF□ 5IK120GU-S3F□ | 5GU□RC 5GU□RT | Allowance Torque | 50Hz | 4.73 | 5.68 | 7.89 | 9.47 | 11.4 | 15.8 | 18.9 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | |
| 48.3 | 58.0 | 80.5 | 96.6 | 116 | 161 | 193 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | |||||
| 60Hz | 3.82 | 4.58 | 6.36 | 7.64 | 9.16 | 12.7 | 15.3 | 16.5 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | ||||
| 39.0 | 46.7 | 64.9 | 77.9 | 93.5 | 130 | 156 | 168 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | |||||
Dimensions (Unit: mm)

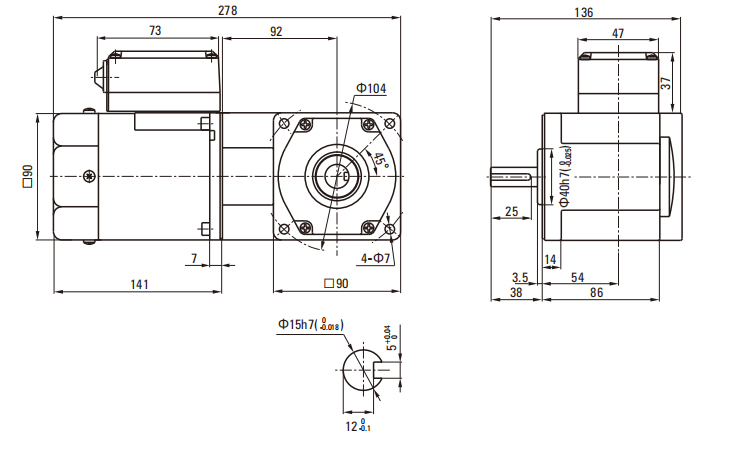

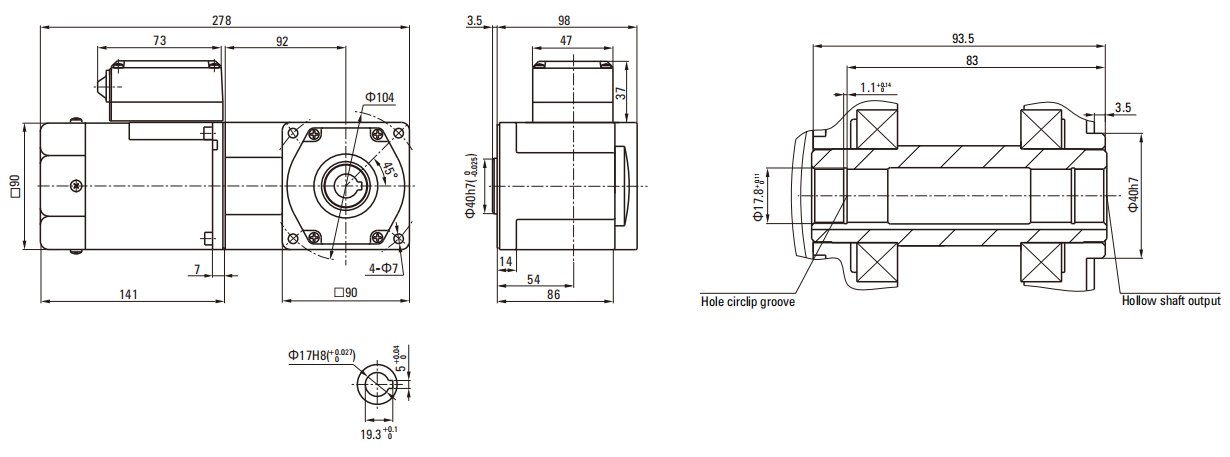

- Motor Size Chart
5IK120GU-AF□/5GU□RC 5IK120GU-CF□/5GU□RC 5IK120GU-SF□/5GU□RC 5IK120GU-EF□/5GU□RC 5IK120GU-HF□/5GU□RC 5IK120GU-S3F□/5GU□RC
5IK120GU-AF□/5GU□RT 5IK120GU-CF□/5GU□RT 5IK120GU-SF□/5GU□RT 5IK120GU-EF□/5GU□RT 5IK120GU-HF□/5GU□RT 5IK120GU-S3F□/5GU□RT
