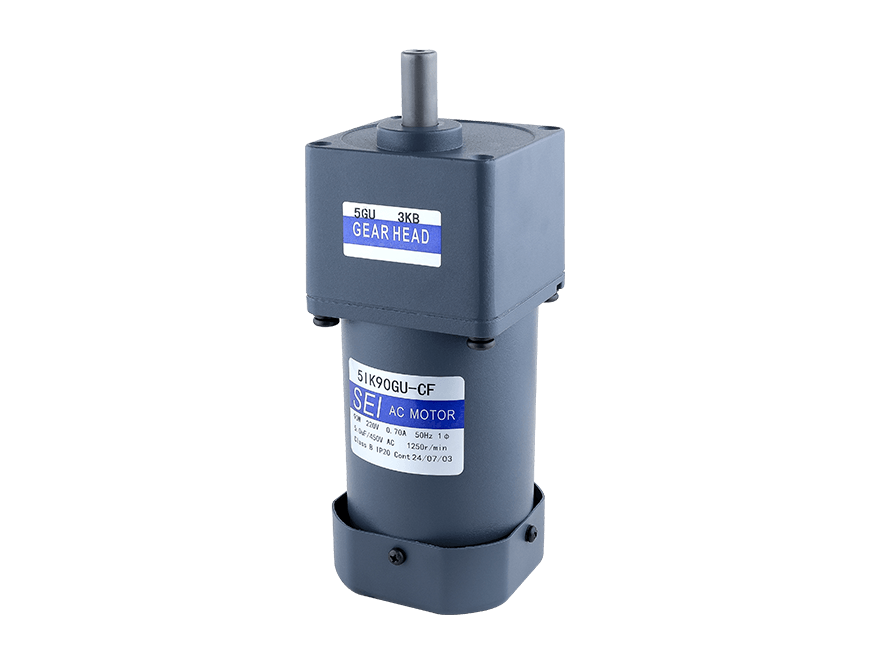

90W Induction AC Motor/Gear Motor
The 90W Induction AC Motor/Gear Motor is available from Source Engineering Inc. in Santa Clara, CA for OEM ac gearmotors programs. Contact us for sizing, customization, samples, and volume pricing.
90W Induction AC Motor/Gear Motor
90W Induction AC Gear Motor
14 5IK 90 90 100-380 Parallel shaft 3-200
Motor Specification
| Model •Type Upper:Pinion Shaft Below:Round Shaft | Output power W | Voltage V | Frequency Hz | Current A | Starting Torque mN.m | Rated Torque mN.m | Rated Speed r/min | Capacitor μF | |
|---|---|---|---|---|---|---|---|---|---|
| Lead Wire Type Dimensions ① | Terminal Box Type Dimensions ② | ||||||||
| 5IK90GU-AF (5IK90A-AF) | 5IK90GU-AFT (5IK90A-AFT) | 90 | 1ph 100 | 50 | 1.55 | 450 | 700 | 1250 | 25.0 |
| 60 | 1.85 | 570 | 1550 | ||||||
| 5IK90GU-EF (5IK90A-EF ) | 5IK90GU-EFT (5IK90A-EFT) | 90 | 1ph 110 | 60 | 1.40 | 500 | 570 | 1550 | 20.0 |
| 1ph 120 | 1.45 | ||||||||
| 5IK90GU-CF (5IK90A-CF) | 5IK90GU-CFT (5IK90A-CFT) | 90 | 1ph 220 | 50 | 0.72 | 450 | 700 | 1250 | 5.0 |
| 1ph 230 | 0.70 | ||||||||
| 5IK90GU-HF (5IK90A-HF ) | 5IK90GU-HFT (5IK90A-HFT) | 90 | 1ph 220 | 60 | 0.71 | 450 | 570 | 1550 | |
| 1ph 230 | 0.75 | ||||||||
| 5IK90GU-SF (5IK90A-SF) | 5IK90GU-SFT (5IK90A-SFT) | 90 | 3ph 220 | 50 | 0.60 | 1350 | 700 | 1250 | – |
| 60 | 0.55 | 1100 | 570 | 1550 | |||||
| 5IK90GU-S3F (5IK90A-S3F) | 5IK90GU-S3FT (5IK90A-S3FT) | 90 | 3ph 380 | 50 | 0.35 | 1350 | 700 | 1250 | – |
| 60 | 0.32 | 1100 | 570 | 1550 | |||||
Gear Motor Specification: ( N.m) / (kgf.cm)
| Type Motor/Gearhead | Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Speed r/min | 50Hz | 500 | 417 | 300 | 250 | 200 | 166 | 120 | 100 | 83 | 60 | 50 | 42 | 30 | 25 | 20 | 16 | 15 | 12 | 10 | 8 | ||
| 60Hz | 600 | 500 | 360 | 300 | 240 | 200 | 144 | 120 | 100 | 72 | 60 | 50 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 | |||
| 5IK90GU-AF□ 5IK90GU-EF□ 5IK90GU-CF□ 5IK90GU-HF□ 5IK90GU-SF□ 5IK90GU-S3F□ | 5GU□RC 5GU□RT | Allowable Torque | 50Hz | 1.28 | 1.53 | 2.13 | 2.56 | 3.55 | 4.26 | 5.92 | 7.10 | 8.52 | 11.8 | 14.2 | 15.3 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 |
| 13.0 | 15.7 | 21.7 | 26.1 | 36.2 | 43.5 | 60.4 | 72.5 | 87.0 | 121 | 145 | 157 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | ||||
| 60Hz | 1.03 | 1.24 | 1.72 | 2.06 | 2.86 | 3.44 | 4.77 | 5.73 | 6.87 | 9.54 | 11.5 | 12.4 | 17.2 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | |||
| 10.5 | 12.6 | 17.5 | 21.0 | 29.2 | 35.1 | 48.7 | 58.4 | 70.1 | 97.4 | 117 | 126 | 175 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | ||||

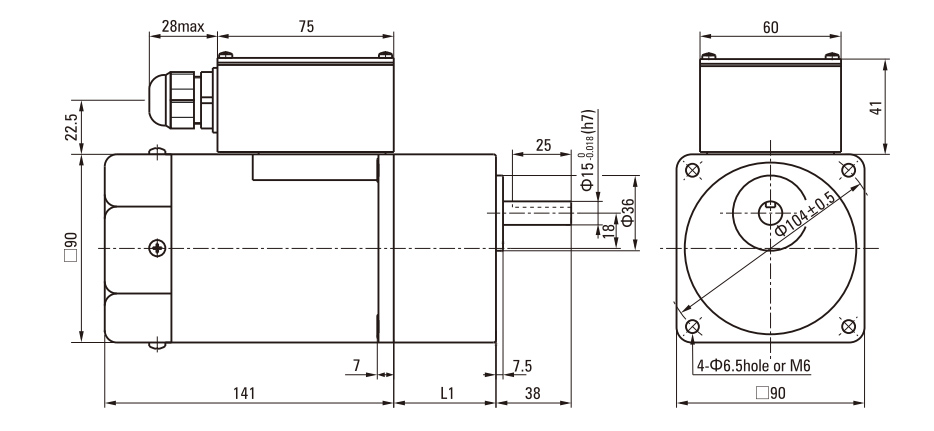

Dimensions (Unit: mm)

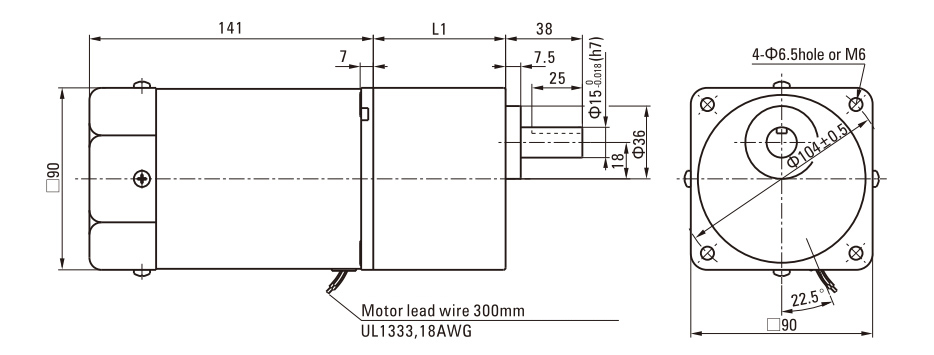

- Lead Wiring Type①
| Motor Model | Gearhead Model | Gear Ratio | L1 |
|---|---|---|---|
| 5IK90GU-AF 5IK90GU-EF 5IK90GU-CF 5IK90GU-HF 5IK90GU-SF 5IK90GU-S3F | 5GU□KB | 3~200 | 65.5 |
- Terminal Box Type②
Key Features
- 90W Induction AC Motor/Gear Motor: OEM motion component configured for your application
- Custom shafts, windings, and mounts available
- US engineering support with overseas manufacturing cost structure
- Prototype to production volumes
Configuration Options
- Custom shafts, windings, encoders, and cable assemblies on request
- Prototype samples through production volumes
Applications
- Conveyors
- Pumps
- Packaging
- Industrial machinery
- Material handling
When to Choose This Model
Choose AC gearmotors for continuous-duty industrial drives on mains power with parallel or right-angle gearheads.
