AC Gearmotors6W INDUCTION
6W Induction AC Motor/Gear Motor
The 6W Induction AC Motor/Gear Motor is available from Source Engineering Inc. in Santa Clara, CA for OEM ac gearmotors programs. Contact us for sizing, customization, samples, and volume pricing.
6W Induction AC Motor/Gear Motor

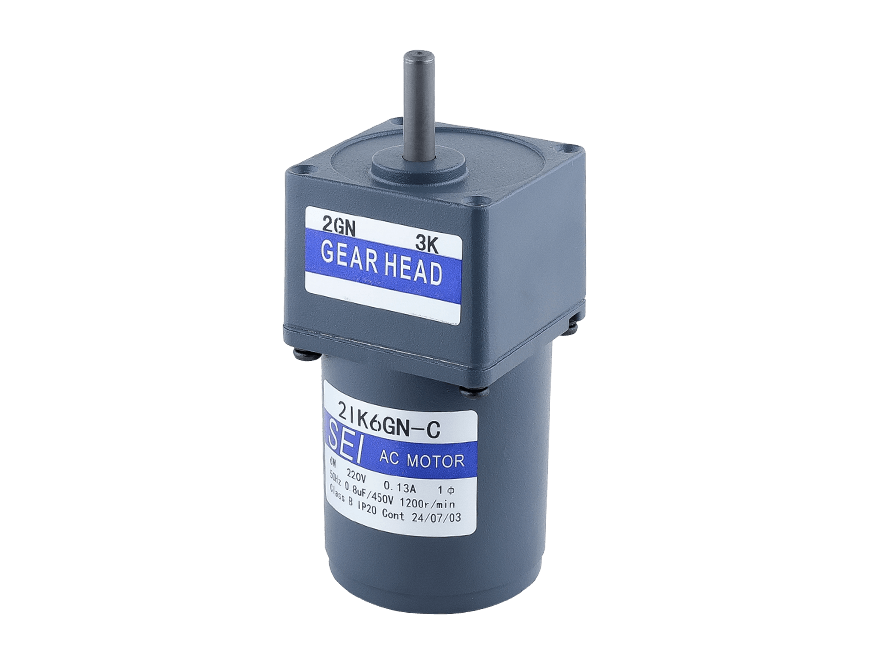

6W Induction AC Gear Motor
19 2IK 60 6 100-380 Parallel shaft 3-200
Motor Specification
| Model•Type | Output power | Voltage | Frequency | Current | Starting | Rated | Rated | Capacitor | |
|---|---|---|---|---|---|---|---|---|---|
| Lead Wire Type | W | V | Hz | A | Torque | Torque | Speed | μF | |
| Pinion Shaft | Round Shaft | mN.m | mN.m | r/min | |||||
| 2IK6GN-A | 2IK6A-A | 6 | 1ph 100 | 50 | 0.24 | 55 | 48 | 1200 | ３.5 |
| 60 | 0.25 | 50 | 40 | 1450 | |||||
| 2IK6GN-E | 2IK6A-E | 6 | 1ph 110 | 60 | 0.16 | 40 | 40 | 1450 | 2 |
| 1ph 120 | 0.18 | ||||||||
| 2IK6GN-C | 2IK6A-C | 6 | 1ph 220 | 50 | 0.13 | 50 | 48 | 1200 | 0.8 |
| 1ph 230 | 0.14 | 40 | 1450 | ||||||
| 2IK6GN-H | 2IK6A-H | 1ph 220 | 60 | 0.13 | 55 | 40 | 1450 | ||
| 1ph 230 | 0.14 | ||||||||
| 2IK6GN-S | 2IK6A-S | 6 | ３ph 220 | 50 | 0.076 | 85 | 48 | 1200 | – |
| 60 | 0.065 | 70 | 40 | 1450 | |||||
| 2IK6GN-S3 | 2IK6A-S3 | 6 | 3 ph 380 | 50 | 0.044 | 85 | 48 | 1200 | – |
| 60 | 0.038 | 70 | 40 | 1450 | |||||
Gear Motor Specification: ( N.m) / (kgf.cm)
| Type Motor/Gearhead | Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Speed r/min | 50Hz | 500 | 417 | ３00 | 250 | 200 | 166 | 120 | 100 | 83 | 60 | 50 | 41 | 30 | 25 | 20 | 16 | 15 | 12.5 | 10 | 8.3 | 7.5 | |
| 60Hz | 600 | 500 | 360 | 300 | 240 | 200 | 144 | 120 | 100 | 72 | 60 | 50 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 | 9 | ||
| 2IK6GN-A 2IK6GN-E 2IK6GN-C 2IK6GN-H 2IK6GN-S 2IK6GN-S3 | 2GN□K | 50Hz | 0.12 | 0.14 | 0.19 | 0.23 | 0.29 | 0.35 | 0.49 | 0.58 | 0.70 | 0.88 | 1.1 | 1.3 | 1.6 | 1.9 | 2.4 | 2.9 | 3 | 3 | 3 | 3 | 3 |
| 1.22 | 1.43 | 1.94 | 2.35 | 2.96 | 3.57 | 5.0 | 5.92 | 7.14 | 8.98 | 11.2 | 13.3 | 16.3 | 19.4 | 24.5 | 29.6 | 30 | 30 | 30 | 30 | 30 | |||
| 60Hz | 0.10 | 0.12 | 0.16 | 0.19 | 0.24 | 0.29 | 0.41 | 0.49 | 0.58 | 0.73 | 0.88 | 1.1 | 1.3 | 1.6 | 2.0 | 2.4 | 2.6 | 3 | 3 | 3 | 3 | ||
| 1.02 | 1.22 | 1.63 | 1.94 | 2.45 | 2.96 | 4.18 | 5.0 | 5.92 | 7.45 | 8.98 | 11.2 | 13.3 | 16.3 | 20.4 | 24.5 | 26.5 | 30 | 30 | 30 | 30 | |||

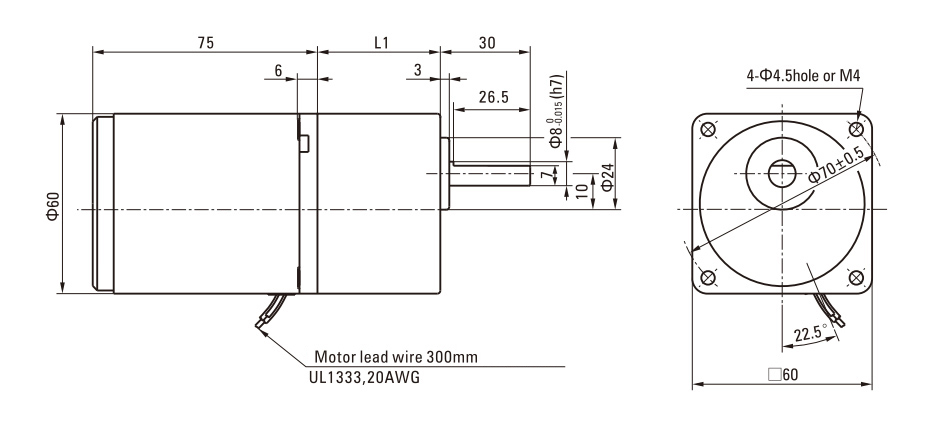

Dimensions (Unit: mm)
| Motor Model | Gearhead Model | Gear Ratio | L1 |
|---|---|---|---|
| 2IK6GN-A 2IK6GN-E 2IK6GN-C 2IK6GN-H 2IK6GN-S 2IK6GN-S3 | 2GN□K | 3~18 | 32 |
| 25~200 | 41.5 |

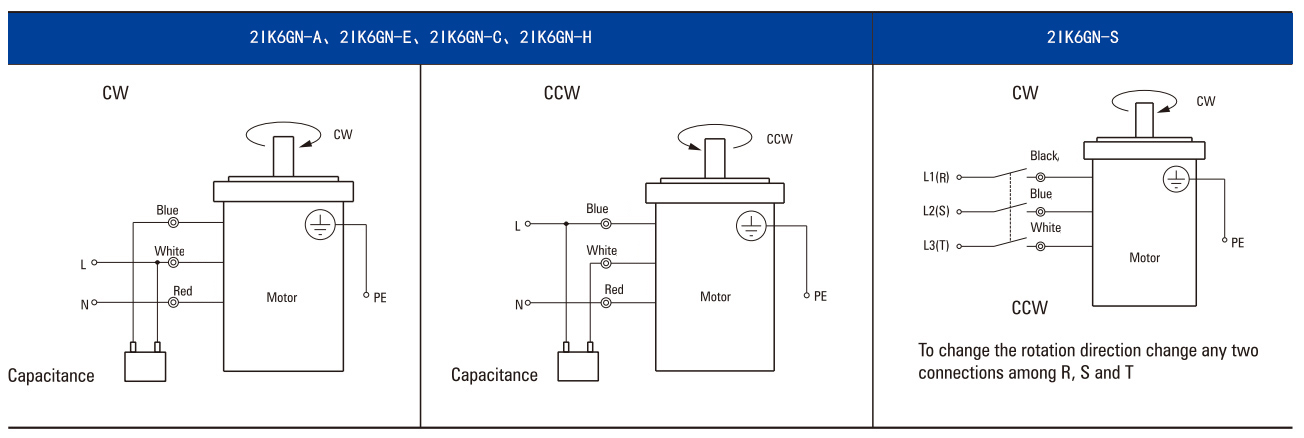

Wiring Diagram
- The direction of motor rotation is as viewed from the shaft end of motor. CW represents the clockwise direction, while CCW represents the counterclockwise direction.
- Name indicated in the list is pinion shaft type, also valid for the equivalent round shaft type.
Note:
- Change the direction of single-phase motor rotation only after bring the motor to a stop.
- If an attempt is made to change the direction of rotation while the motor is rotating，motor may ignore reversing command or change its direction of rotation after some delay.

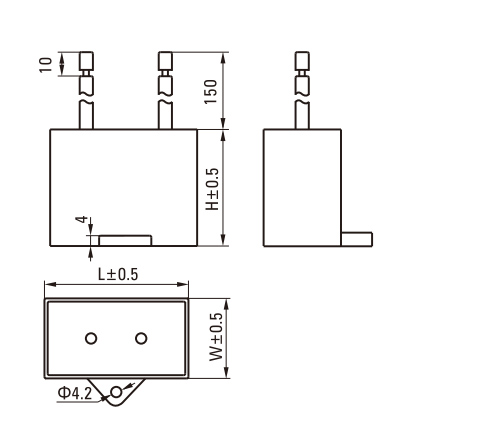

Capacitor
| Model | Capacitor Model | L | W | H | |
|---|---|---|---|---|---|
| Pinion Shaft | Round Shaft | ||||
| 2IK6GN-A | 2IK6A-A | ZD35CFAUL | 38 | 19.5 | 31 |
| 2IK6GN-E | 2IK6A-E | ZD20CFAUL | 36 | 15 | 25 |
| 2IK6GN-C | 2IK6A-C | ZD08CFAUL | 36 | 10.5 | 20 |
Note: Conventional capacitor is a lead wire type. Inserted 187# is optional
