60W Induction AC Motor/Gear Motor
The 60W Induction AC Motor/Gear Motor is available from Source Engineering Inc. in Santa Clara, CA for OEM ac gearmotors programs. Contact us for sizing, customization, samples, and volume pricing.
60W Induction AC Motor/Gear Motor

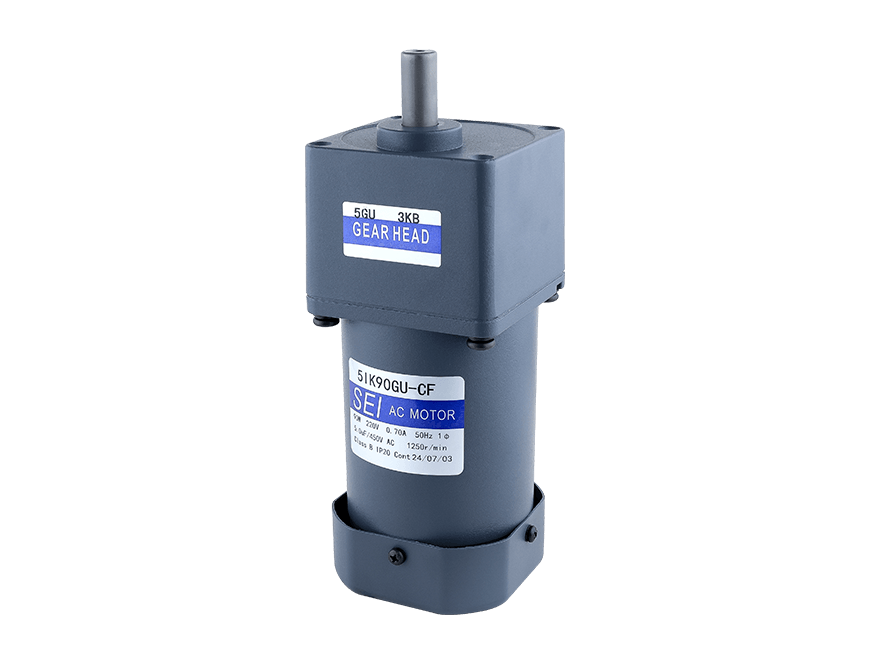

60W Induction AC Gear Motor
15 5IK 90 60 100-380 Parallel shaft 3-200
Motor Specification
| Model Type Upper:Pinion Shaft Below:Round Shaft | Output power W | Voltage V | Frequency Hz | Current A | Starting Torque mN.m | Rated Torque mN.m | Rated Speed r/min | Capacitor μF | |
|---|---|---|---|---|---|---|---|---|---|
| Lead Wire Type Dimensiors ① | Terminal Box Type Dimensions② | ||||||||
| 5IK60GN-AF (5IK60A-AF) | 5IK60G-AFT (5IK60A-AFT) | 60 | 1ph 100 | 50 | 1.00 | 320 | 470 | 1250 | 20.0 |
| 60 | 1.10 | 380 | 1550 | ||||||
| 5IK60GN-EF (5IK60A-EF ) | 5IK60GN-EFT ( 5IK60A-EFT ) | 60 | 1ph 110 | 60 | 0.80 | 300 | 380 | 1550 | 12.0 |
| 1ph 120 | 0.85 | ||||||||
| 5IK60GN-CF (5IK60A-CF ) | 5IK60GN-CFT (5IK60A-CFT) | 60 | 1ph 220 | 50 | 0.50 | 340 | 470 | 1250 | 4.0 |
| 1ph 230 | 0.55 | ||||||||
| 5IK60GN-HF (5IK60A-HF) | 5IK60GN-HFT (5IK60A-HFT) | 60 | 1ph 220 | 60 | 0.50 | 340 | 380 | 1550 | |
| 1ph 230 | 0.55 | ||||||||
| 5IK60GN-SF (5IK60A-SF) | 5IK60GN-SFT (5IK60A-SFT) | 60 | 3ph 220 | 50 | 0.45 | 1000 | 470 | 1250 | – |
| 60 | 0.40 | 800 | 380 | 1550 | |||||
| 5IK60GN-S3F (5IK60A-S3F) | 5IK60GN-S3FT (5IK60A-S3FT) | 60 | 3ph 380 | 50 | 0.26 | 1000 | 470 | 1250 | – |
| 60 | 0.23 | 800 | 380 | 1550 | |||||
Gear Motor Specification: ( N.m) / (kgf.cm)
| Type Motor/Gearhead | Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Speed r/min | 50Hz | 500 | 417 | 300 | 250 | 200 | 166 | 120 | 100 | 83 | 60 | 50 | 42 | 30 | 25 | 20 | 16 | 15 | 12 | 10 | 8 | ||
| 60Hz | 600 | 500 | 360 | 300 | 240 | 200 | 144 | 120 | 100 | 72 | 60 | 50 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 | |||
| 5IK60GU-AF□ 5IK60GU-EF□ 5IK60GU-CF□ 5IK60GU-HF□ 5IK60GU-SF□ 5IK60GN-S3F□ | 5GU□RC 5GU□RT | Allowable Torque | 50Hz | 0.85 | 1.02 | 1.42 | 1.70 | 2.37 | 2.84 | 3.95 | 4.73 | 5.68 | 7.89 | 9.47 | 10.2 | 14.2 | 17.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 |
| 8.70 | 10.4 | 14.5 | 17.4 | 24.2 | 29.0 | 40.3 | 48.3 | 58.0 | 80.5 | 96.6 | 104 | 145 | 174 | 200 | 200 | 200 | 200 | 200 | 200 | ||||
| 60Hz | 0.69 | 0.82 | 1.15 | 1.37 | 1.91 | 2.29 | 3.18 | 3.82 | 4.58 | 6.36 | 7.64 | 8.25 | 11.5 | 13.7 | 17.2 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | |||
| 6.73 | 8.08 | 11.2 | 13.5 | 19.48 | 23.37 | 32.46 | 38.96 | 46.75 | 64.93 | 77.92 | 84.1 | 117 | 140 | 175 | 200 | 200 | 200 | 200 | 200 | ||||

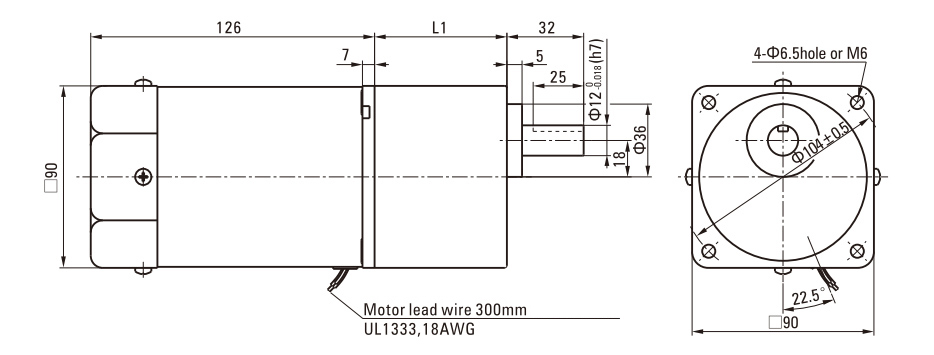

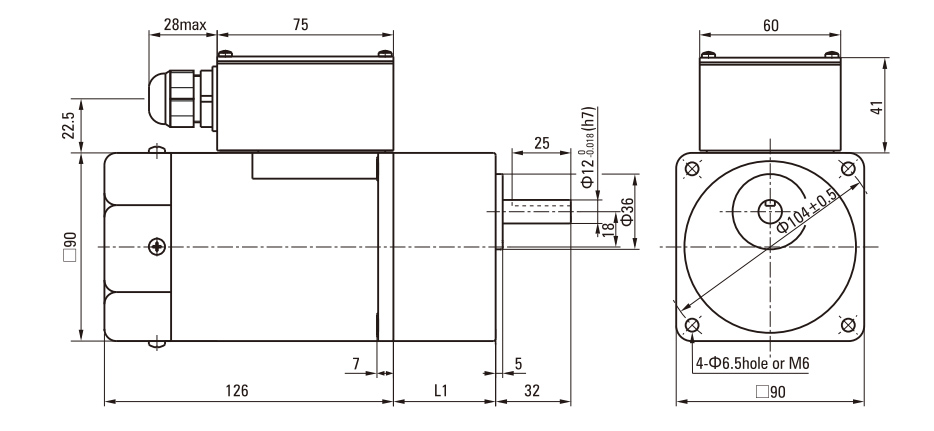

Dimensions (Unit: mm)
- Lead Wiring Type①
| Motor Model | Gearhead Model | Gear Ratio | L1 |
|---|---|---|---|
| 5IK60GN-AF 5IK60GN-EF 5IK60GN-CF 5IK60GN-HF 5IK60GN-SF5IK60GN-S3F | 5GN□K | 3~18 | 42 |
| 25~200 | 60 |
Enter the gear ratio in the box (□) within the model name
- Terminal Box Type①
| Motor Model | Gearhead Model | Gear Ratio | L1 |
|---|---|---|---|
| 5IK60GN-AFT 5IK60GN-EFT 5IK60GN-CFT 5IK60GN-HFT 5IK60GN-SFT 5IK60GN-S3FT | 5GN□K | 3~18 | 42 |
| 25~200 | 60 |

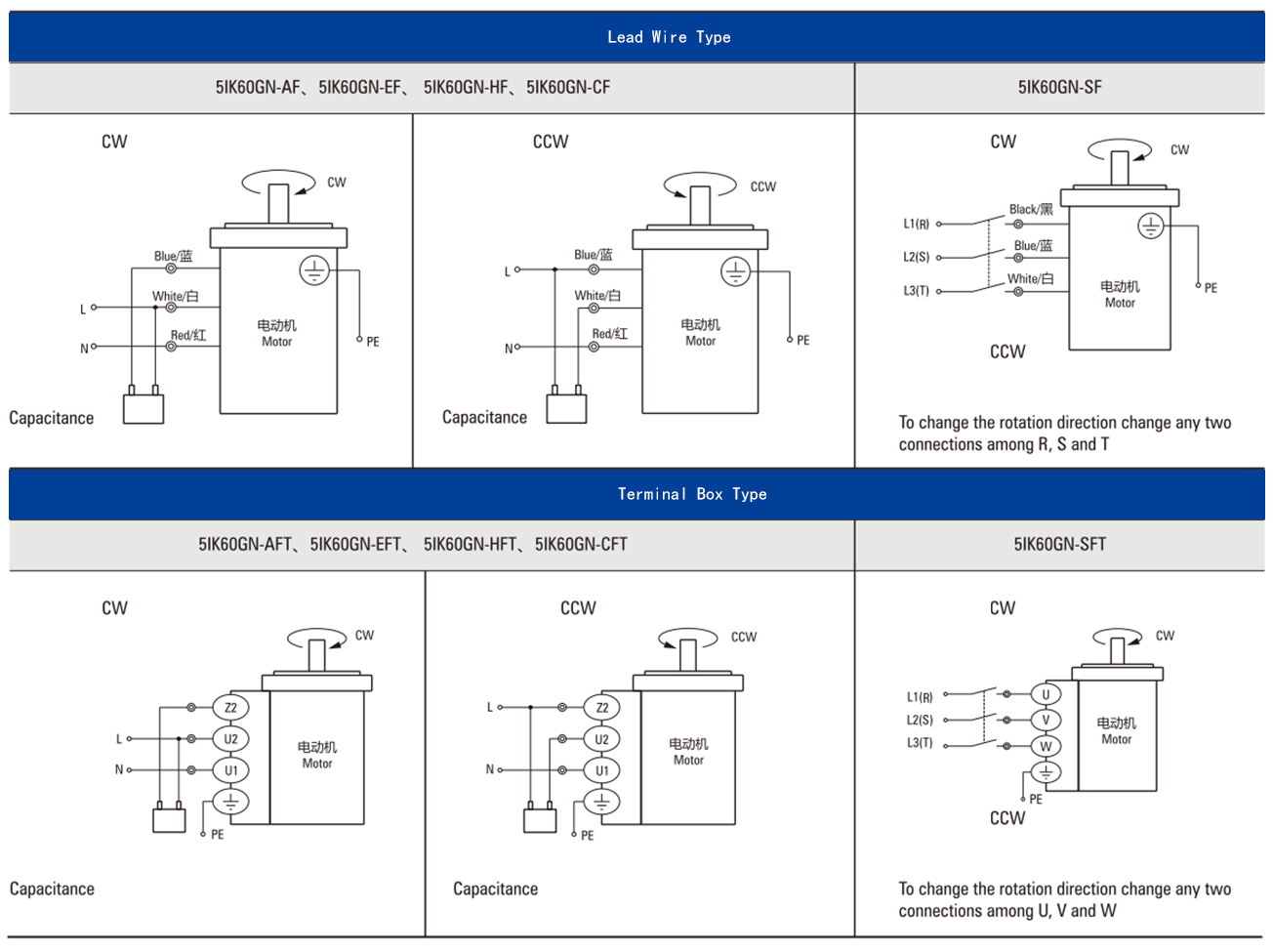

Wiring Diagram
- The direction of motor rotation is as viewed from the shaft end of motor.CW represents the clockwise direction，while CCW represents the counterclockwise direction.
- Name indicated in the list is pinion shaft type，also valid for the equivalent round shaft type.
