40W Induction AC Motor/Gear Motor
The 40W Induction AC Motor/Gear Motor is available from Source Engineering Inc. in Santa Clara, CA for OEM ac gearmotors programs. Contact us for sizing, customization, samples, and volume pricing.
40W Induction AC Motor/Gear Motor
40W Induction AC Gear Motor
16 5IK 90 40 100-380 Parallel shaft 3-200
Motor Specification
| Model •Type | Output power | Voltage | Frequency | Current | Starting Torque | Rated | Rated | Capacitor | |
|---|---|---|---|---|---|---|---|---|---|
| Upper:Pinion Shaft | W | V | Hz | A | mN.m | Torque | Speed | μF | |
| Below:Round Shaft | mN.m | r/min | |||||||
| Lead Wire Type Dimensions ① | Terminal Box Type Dimensions ② | ||||||||
| 5IK40GN-A (5IK40A-A ) | 5IK40GN-AT (5IK40A-AT ) | 40 | 1ph 100 | 50 | 0.65 | 220 | 315 | 1250 | 12 |
| 60 | 0.7 | 260 | 1550 | ||||||
| 5IK40GN-E (5IK40A-E) | 5IK40GN-ET (5IK40A-ET) | 40 | 1ph 110 | 60 | 0.55 | 200 | 260 | 1550 | 8 |
| 1ph120 | 0.6 | ||||||||
| 5IK40GN-C (5IK40A-C ) | 5IK40GN-CT (5IK40A-CT) | 40 | 1ph 220 | 50 | 0.35 | 220 | 315 | 1250 | 2.5 |
| 1ph 230 | 0.4 | ||||||||
| 5IK40GN-H (5IK40A-H) | 5IK40GN-HT (5IK40A-HT) | 40 | 1ph 220 | 60 | 0.35 | 200 | 260 | 1550 | |
| 1ph 230 | 0.4 | ||||||||
| 5IK40GN-S (5IK40A-S ) | 5IK40GN-ST (5IK40A-ST) | 40 | 3ph 220 | 50 | 0.3 | 800 | 315 | 1250 | – |
| 60 | 0.25 | 660 | 250 | 1550 | |||||
| 5IK40GN-S3 (5IK40A-S3) | 5IK40GN-S3T (5IK40A-S3T) | 40 | 3ph 380 | 50 | 0.17 | 800 | 315 | 1250 | – |
| 60 | 0.14 | 660 | 250 | 1550 | |||||
Gear Motor Specification: ( N.m) / (kgf.cm)
| e Motor/Gearhead | Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Speed r/min | 50Hz | 500 | 417 | 300 | 250 | 200 | 166 | 120 | 100 | 83 | 60 | 50 | 41 | 30 | 25 | 20 | 16 | 15 | 12.5 | 10 | 8.3 | 7.5 | |
| 60Hz | 600 | 500 | 360 | 300 | 240 | 200 | 144 | 120 | 100 | 72 | 60 | 50 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 | 9 | ||
| 5IK40GN-A□ 5IK40GN-E□ 5IK40GN-C□ 5IK40GN-H□ 5IK40GN-S□ 5IK40GN-S3□ | 5GN□K | 50Hz | 0.77 | 0.92 | 1.3 | 1.5 | 1.9 | 2.3 | 3.2 | 3.8 | 4.6 | 5.7 | 6.9 | 8.3 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| 7.85 | 9.38 | 13.2 | 15.3 | 19.4 | 23.4 | 32.6 | 38.7 | 46.9 | 58.1 | 70.4 | 84.7 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |||
| 60Hz | 0.63 | 0.76 | 1.1 | 1.3 | 1.6 | 1.9 | 2.6 | 3.2 | 3.8 | 4.7 | 5.7 | 6.8 | 8.6 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | ||
| 6.42 | 7.75 | 11.2 | 13.2 | 16.3 | 19.3 | 26.5 | 32.6 | 38.7 | 47.9 | 58.1 | 69.3 | 87.7 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |||
Dimensions (Unit: mm)

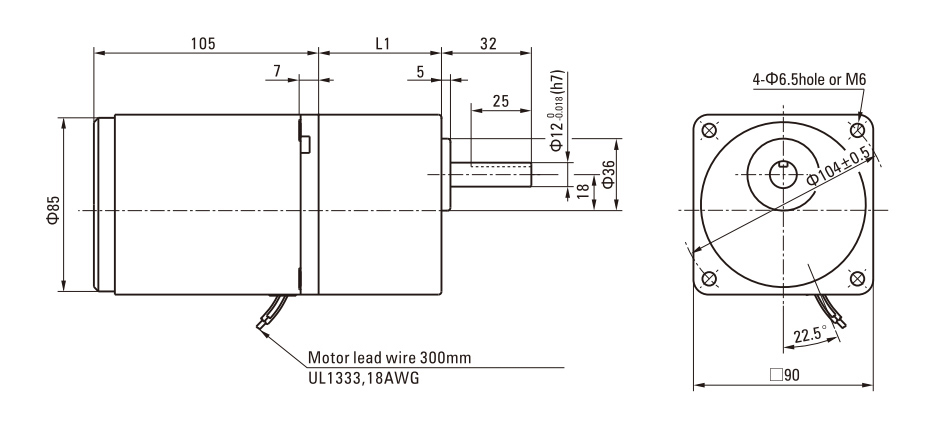

- Lead Wiring Type①
| Motor Model | Gearhead Model | Gear Ratio | L1 |
|---|---|---|---|
| 5IK40GN-A 5IK40GN-E 5IK40GN-C 5IK40GN-H 5IK40GN-S 5IK40GN-S3 | 5GN□K | 3~18 | 42 |
| 25~200 | 60 |

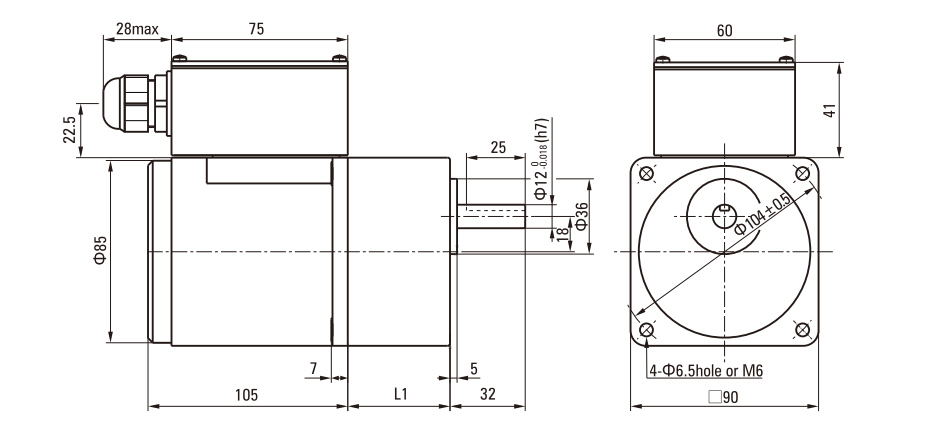

- Terminal Box Type②

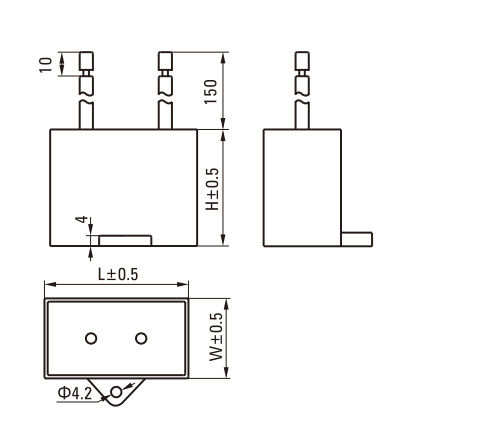

Capacitor Dimension
Note: Conventional capacitor is a lead wire type. Inserted 187# is optional
- Enter the code that represents the terminal box type (T) in the box (□ ) within the model name
| Model | Capacitor Model | L | W | H | |
|---|---|---|---|---|---|
| Pinion Shaft | Round Shaft | ||||
| 5IK40GN-A□ | 5IK40A-A□ | ZD120CFAUL | 47 | 17 | 31 |
| 5IK40GN-E□ | 5IK40A-E□ | ZD80CFAUL | 48 | 26.5 | 38 |
| 5IK40GN-C□ | 5IK40A-C□ | ZD25BFAUL | 38 | 17 | 28 |
