AC Gearmotors3W INDUCTION

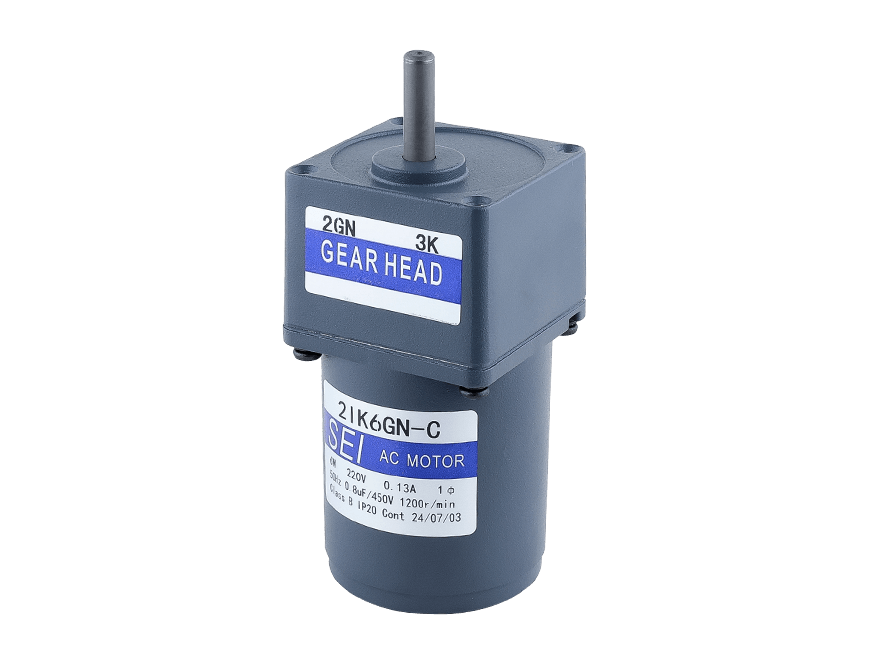

3W Induction AC Motor/Gear Motor
The 3W Induction AC Motor/Gear Motor is available from Source Engineering Inc. in Santa Clara, CA for OEM ac gearmotors programs. Contact us for sizing, customization, samples, and volume pricing.
3W Induction AC Motor/Gear Motor
3 W Induction AC Gear Motor
- 60 mm
- Variable speed versions available
- Single phase 110-220 VAC
- Electromagnetic brake Avaiable
- Round shaft
- Gear ratio 3-200
Motor Specification
| Model•Type | Output power | Voltage | Frequency | Current | Starting Torque | Rated | Rated | Capacitor | |
|---|---|---|---|---|---|---|---|---|---|
| Lead Wire Type | W | V | Hz | A | mN.m | Torque | Speed | μF | |
| Pinion Shaft | Round Shaft | mN.m | r/min | ||||||
| 0IK3GN-B | 0IK3A-B | 3 | 1ph 110 | 50 | 0.12 | 5 | 11 | 2500 | 1.5 |
| 60 | 0.13 | 10 | 3000 | ||||||
| 0IK3GN-D | 0IK3A-D | 3 | 1ph 220 | 50 | 0.06 | 5 | 11 | 2500 | 0.35 |
| 60 | 0.064 | 10 | 3000 | ||||||
Gear Motor Specification: ( N.m) / (kgf.cm)
| Type Motor/Gearhead | Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Speed r/min | 50Hz | 1000 | 833 | 600 | 500 | 400 | 333 | 240 | 200 | 166 | 120 | 100 | 83 | 60 | 50 | |
| 60Hz | 1200 | 1000 | 720 | 600 | 480 | 400 | 288 | 240 | 200 | 144 | 120 | 100 | 72 | 60 | ||
| 0IK3GN-B 0IK3GN-D | 0GN□K | 50Hz | 0.027 | 0.032 | 0.045 | 0.053 | 0.067 | 0.080 | 0.10 | 0.12 | 0.14 | 0.18 | 0.22 | 0.26 | 0.36 | 0.44 |
| 0.28 | 0.33 | 0.46 | 0.54 | 0.68 | 0.82 | 1.02 | 1.22 | 1.43 | 1.84 | 2.24 | 2.65 | 3.67 | 4.49 | |||
| 60Hz | 0.024 | 0.029 | 0.041 | 0.049 | 0.061 | 0.073 | 0.091 | 0.1 | 0.13 | 0.17 | 0.20 | 0.24 | 0.33 | 0.40 | ||
| 0.24 | 0.30 | 0.42 | 0.50 | 0.62 | 0.74 | 0.93 | 1.12 | 1.33 | 1.73 | 2.04 | 2.45 | 3.67 | 4.08 | |||

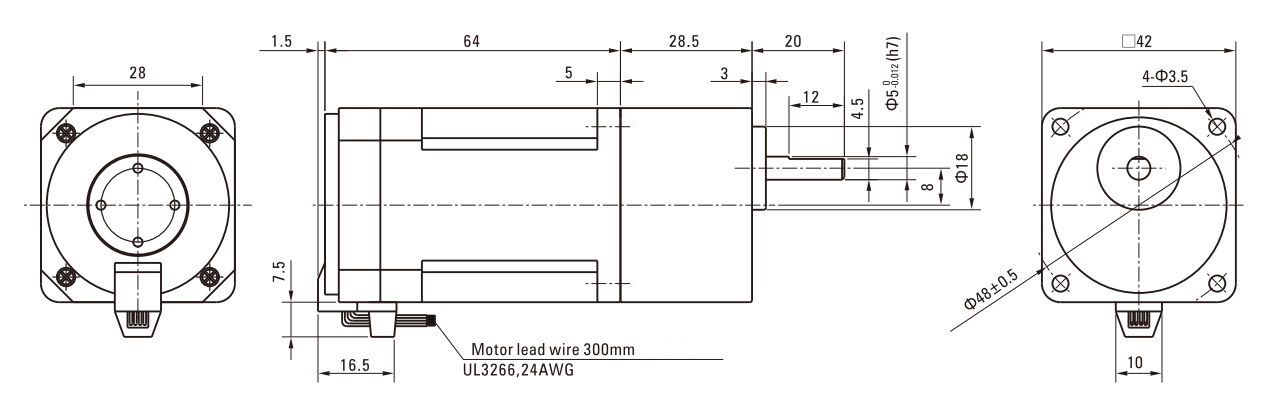

Dimensions (Unit: mm)
Mounting screws are included with gearhead.
Lead Wiring Type
Weight：Motor：0.3kg Gearhead：0.2kg

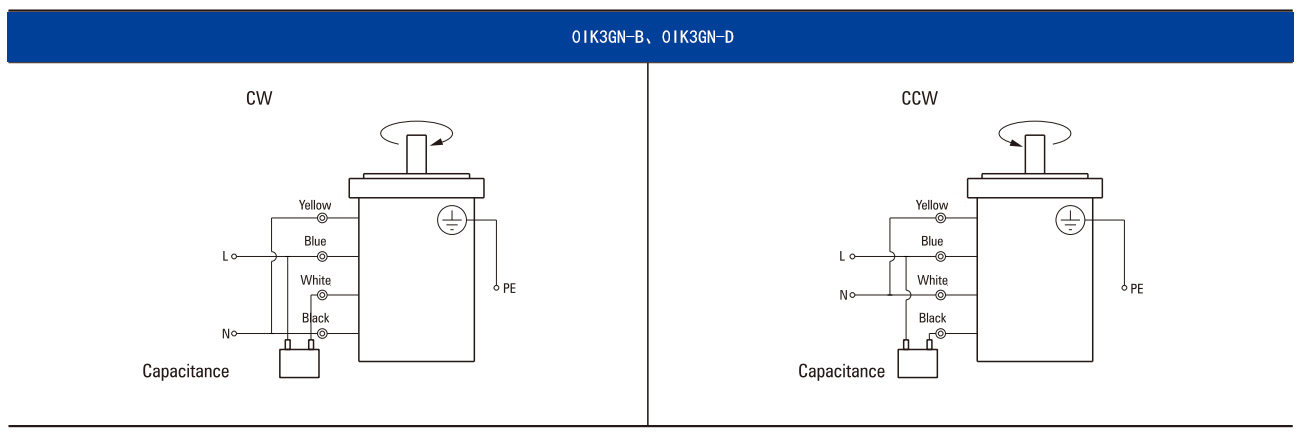

Wiring Diagram
- The direction of motor rotation is as viewed from the shaft end of motor. CW represents the clockwise direction, while CCW represents the counterclockwise direction
- Name indicated in the list is pinion shaft type, also valid for the equivalent round shaft type.
Note:
Change the direction of single-phase motor rotation only after bring the motor to a stop.
If an attempt is made to change the direction of rotation while the motor is rotating，motor may ignore reversing command or change its direction of rotation after some delay.
Key Features
- 3W Induction AC Motor/Gear Motor: OEM motion component configured for your application
- Custom shafts, windings, and mounts available
- US engineering support with overseas manufacturing cost structure
- Prototype to production volumes
Configuration Options
- Custom shafts, windings, encoders, and cable assemblies on request
- Prototype samples through production volumes
Applications
- Conveyors
- Pumps
- Packaging
- Industrial machinery
- Material handling
When to Choose This Model
Choose AC gearmotors for continuous-duty industrial drives on mains power with parallel or right-angle gearheads.
