NEMA 23 Standard (Round)
The NEMA 23 Standard (Round) is available from Source Engineering Inc. in Santa Clara, CA for OEM stepping motors programs. Contact us for sizing, customization, samples, and volume pricing.
NEMA 23 Standard (Round)

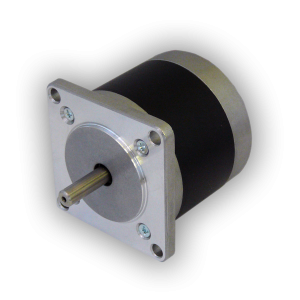

NEMA 23 Standard (Round) Stepping motor
Features:
- 1.8 degree Round Body Motors
- Torque ranging from 10 oz-in up to 4500 oz-in
- NEMA 23 to 42
- High quality Sealed Ball Bearings
- Stainless Steel Shafts
- Multiple Stack Lengths and Windings
Options: Custom windings, Multiple Shaft Configurations, Shaft Seals, Connectors, Cabling and Encoders
Size 23 Standard Stepping Motor Specifications
| Model No. | Rated Voltage | Per Phase | Holding Torque | # of Leads | Rotor Inertia | Weight | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Current | Resistance | Inductance | ||||||||
| Single Shaft | Double Shaft | V | A | Ω | MH | Oz-in | Kg-cm | g-cm2 | Kg | |
| 23H160-110-6A | 23H160-110-6B | 4 | 1.1 | 3.6 | 3.6 | 40 | 2.88 | 6 | 57 | 0.54 |
| 23H160-040-6A | 23H160-040-6B | 12 | 0.4 | 30 | 30 | |||||
| 23H160-156-4A | 23H160-156-4B | 2.8 | 1.56 | 1.8 | 3.6 | 56 | 4 | 4 | ||
| 23H200-085-6A | 23H200-085-6B | 6 | 0.85 | 7.1 | 9 | 69 | 4.97 | 6 | 110 | 0.6 |
| 23H200-042-6A | 23H200-042-6B | 12 | 0.42 | 29 | 36 | |||||
| 23H200-280-4A | 23H200-280-4B | 1.8 | 2.8 | 0.65 | 1.6 | 96 | 6.9 | 4 | ||
| 23H220-120-6A | 23H220-120-6B | 6 | 1.2 | 5 | 8 | 84 | 6.05 | 6 | 135 | 0.65 |
| 23H220-060-6A | 23H220-060-6B | 12 | 0.6 | 20 | 32 | |||||
| 23H220-280-4A | 23H220-280-4B | 2.8 | 2.55 | 1.1 | 3.6 | 117 | 8.4 | 4 | ||
| 23H300-150-6A | 23H300-150-6B | 5.4 | 1.5 | 3.6 | 6 | 125 | 9 | 6 | 200 | 0.95 |
| 23H300-068-6A | 23H300-068-6B | 12 | 0.68 | 17.7 | 30 | |||||
| 23H300-270-4A | 23H300-270-4B | 2.7 | 3.3 | 0.85 | 3 | 175 | 12.5 | 4 | ||
