ZPNΦ72 Brushless Planetary DC Gear Motor
The ZPNΦ72 Brushless Planetary DC Gear Motor is available from Source Engineering Inc. in Santa Clara, CA for OEM planetary dc gearmotors programs. Contact us for sizing, customization, samples, and volume pricing.

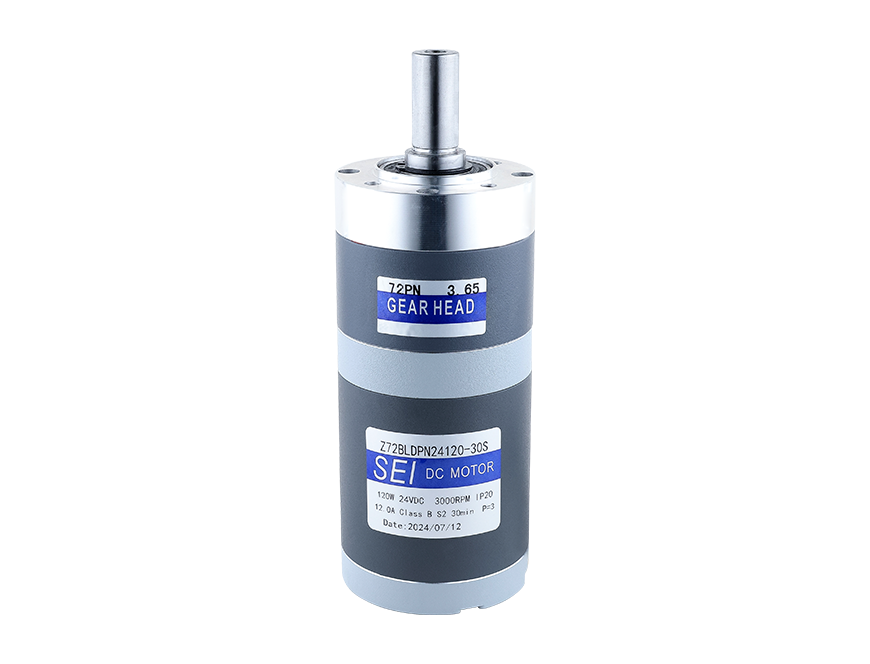

ZPNΦ72 Brushless Planetary DC Gear Motor
Product Images

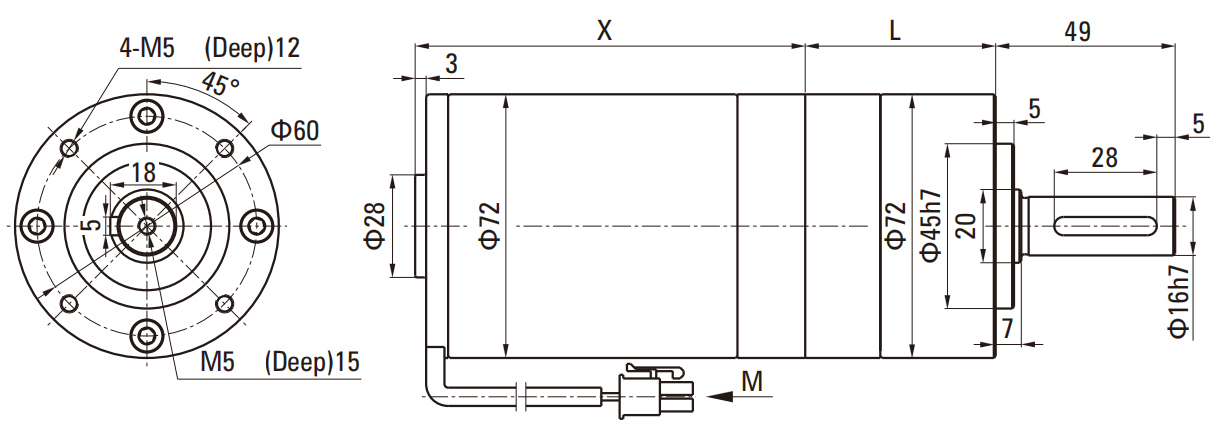

Outside Diameter 72mm DC Brushless Motor
| Motor Type | Dimension | Gearbox Model | Gear Ratio | Dimension |
|---|---|---|---|---|
| Z72BLDPN24120-30S | 106.5 | 72PN□ | 3.65～8.63 | 52.0 |
| 13.53～58.22 | 72.15 | |||
| Z72BLDPN24150-30S | 129.5 | |||
| 67.08～392.98 | 92.3 |
BLDC Motor Technical Data
| Motor Type | Voltage V | Rated Power W | Bated Current A | Rated Speed RPM | Rated Torque N.m | Grade Protection IP |
|---|---|---|---|---|---|---|
| Z72BLDPN24120-30S | 24 | 120 | 6.6 | 3000 | 0.382 | 20 |
| Z72BLDPN24150-30S | 24 | 150 | 8.5 | 3000 | 0.478 | 20 |
BLDC Planetary Gear Motor Technical Data-Z72BLDPN24120-30S
| Ratio | 3.65 | 5.36 | 6.55 | 8.63 | 13.53 | 18.92 | 24.65 | 28.05 | 33.92 | 44.69 | 58.22 | 67.08 | 81.11 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output shaft speed | 822 | 560 | 458 | 348 | 222 | 159 | 122 | 107 | 88 | 67 | 52 | 45 | 37 |
| Allowable torque | 1.25 | 1.84 | 2.25 | 2.97 | 4.19 | 5.85 | 7.63 | 8.68 | 10.50 | 13.83 | 18.01 | 18.71 | 22.62 |
| Reduction stage | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 3 |
BLDC Planetary Gear Motor Technical Data-Z72BLDPN24120-30S (2)
| Ratio | 91.36 | 102.88 | 118.98 | 127.74 | 145.36 | 165.64 | 191.56 | 231.61 | 301.68 | 392.98 |
|---|---|---|---|---|---|---|---|---|---|---|
| Output shaft speed | 33 | 29 | 25 | 23 | 21 | 18 | 16 | 13 | 10 | 8 |
| Allowable torque | 25.48 | 28.69 | 33.18 | 35.62 | 40.50 | 46.19 | 53.42 | 64.59 | 84.00 | 84.00 |
| Reduction stage | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
