Planetary DC GearmotorsZPNPHI72 BRUSH

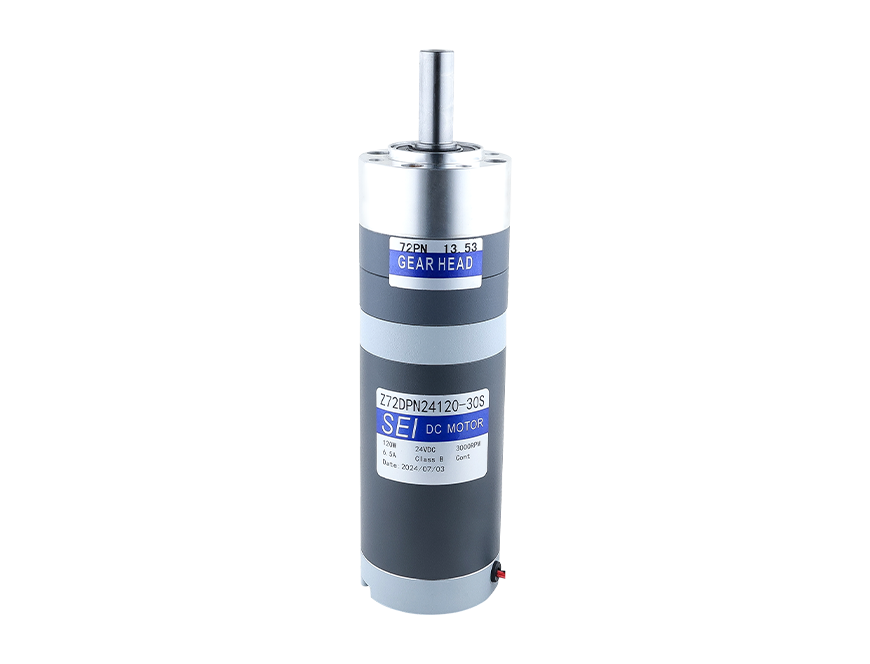

ZPNΦ72 Brush DC Planetary Gear Motor
The ZPNΦ72 Brush DC Planetary Gear Motor is available from Source Engineering Inc. in Santa Clara, CA for OEM planetary dc gearmotors programs. Contact us for sizing, customization, samples, and volume pricing.
ZPNΦ72 Brush DC Planetary Gear Motor
Product Images

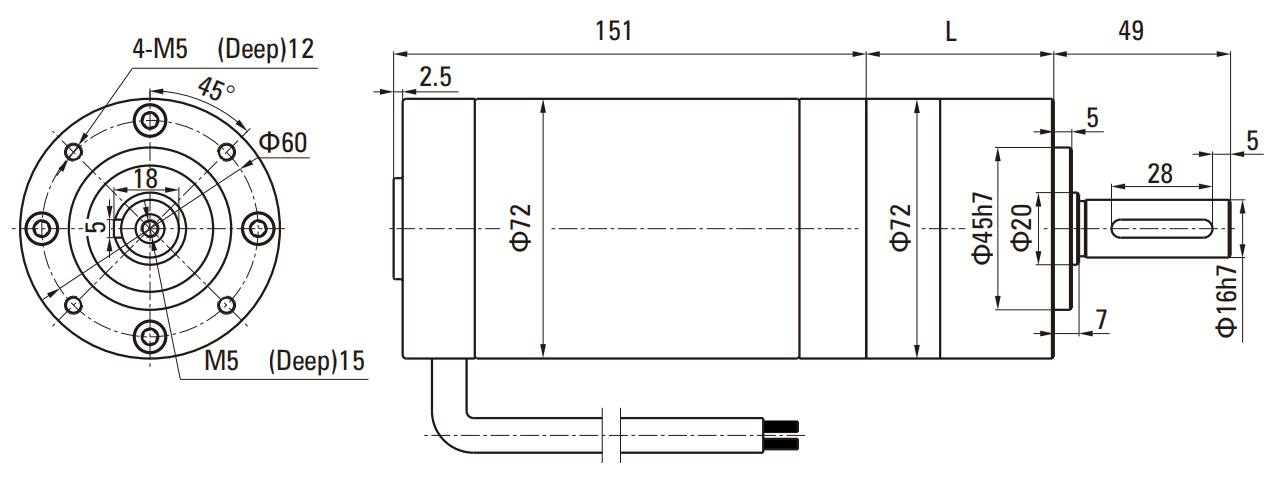

Outside Diameter 72mm DC Brush Motor
| Motor Type | Gearbox Model | Gear Ratio | Dimension |
|---|---|---|---|
| Z72DPN | 72PN□ | 3.65~8.63 | 52.00 |
| 13.53~58.22 | 72.15 | ||
| 67.08~392.98 | 92.30 |
Brush DC Motor Technical Data
| Motor Type | Voltage V | Rated Power W | No-load Current A | No-load Speed RPM | Rated Current A | Rated Speed RPM | Rated Torque N.m | Motor Life H |
|---|---|---|---|---|---|---|---|---|
| Z72DPN1260-30S | 12 | 60 | 2.0 | 3500 | 7.2 | 3000 | 0.191 | 2000 |
| Z72DPN2490-30S | 24 | 90 | 2.0 | 3400 | 5.5 | 3000 | 0.287 | 2000 |
| 72DPN24120-30S | 24 | 120 | 2.0 | 3500 | 7.2 | 3000 | 0.382 | 2000 |
Brush DC Planetary Gear Motor Technical Data-Z72DPN2490-30S
| Ratio | 3.65 | 5.36 | 6.55 | 8.63 | 13.53 | 18.92 | 24.65 | 28.05 | 33.92 | 44.69 | 58.22 | 67.08 | 81.11 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output shaft speed | 822 | 560 | 458 | 348 | 222 | 159 | 122 | 107 | 89 | 67 | 52 | 45 | 37 |
| Allowable torque | 0.94 | 1.38 | 1.69 | 2.23 | 3.15 | 4.40 | 5.73 | 6.52 | 7.89 | 10.39 | 13.53 | 14.05 | 16.99 |
| Reduction stage | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 3 |
Brush DC Planetary Gear Motor Technical Data-Z72DPN2490-30S (2)
| Ratio | 91.36 | 102.88 | 118.98 | 127.74 | 145.36 | 165.64 | 191.56 | 231.61 | 301.68 | 392.98 |
|---|---|---|---|---|---|---|---|---|---|---|
| Output shaft speed | 33 | 29 | 25 | 24 | 21 | 18 | 16 | 13 | 9.9 | 7.6 |
| Allowable torque | 19.14 | 21.55 | 24.93 | 26.76 | 30.45 | 34.70 | 40.13 | 48.52 | 63.20 | 82.33 |
| Reduction stage | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
