Planetary DC GearmotorsZPNPHI52 BRUSH
ZPNΦ52 Brush DC Planetary Gear Motor
The ZPNΦ52 Brush DC Planetary Gear Motor is available from Source Engineering Inc. in Santa Clara, CA for OEM planetary dc gearmotors programs. Contact us for sizing, customization, samples, and volume pricing.
ZPNΦ52 Brush DC Planetary Gear Motor

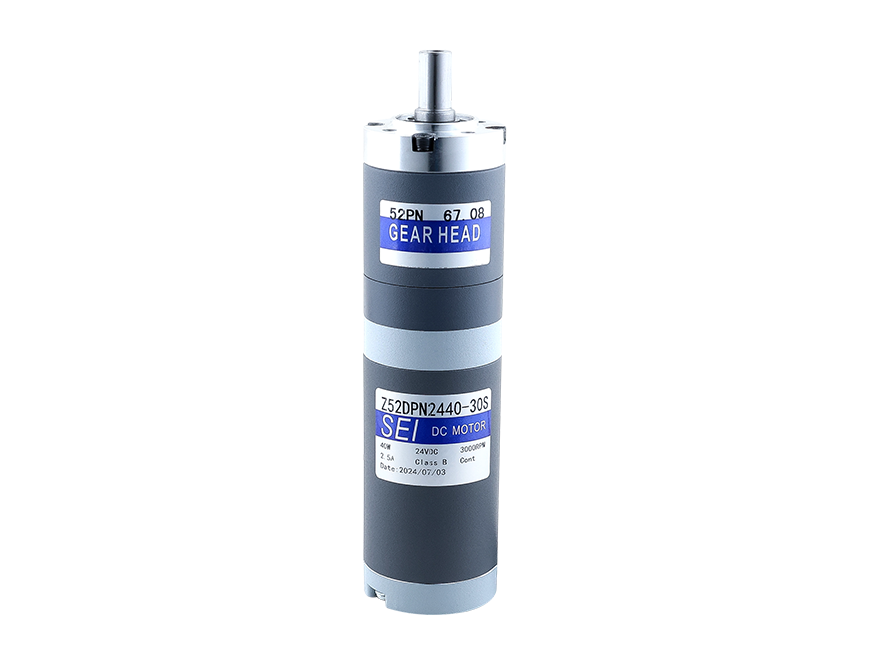

Product Images

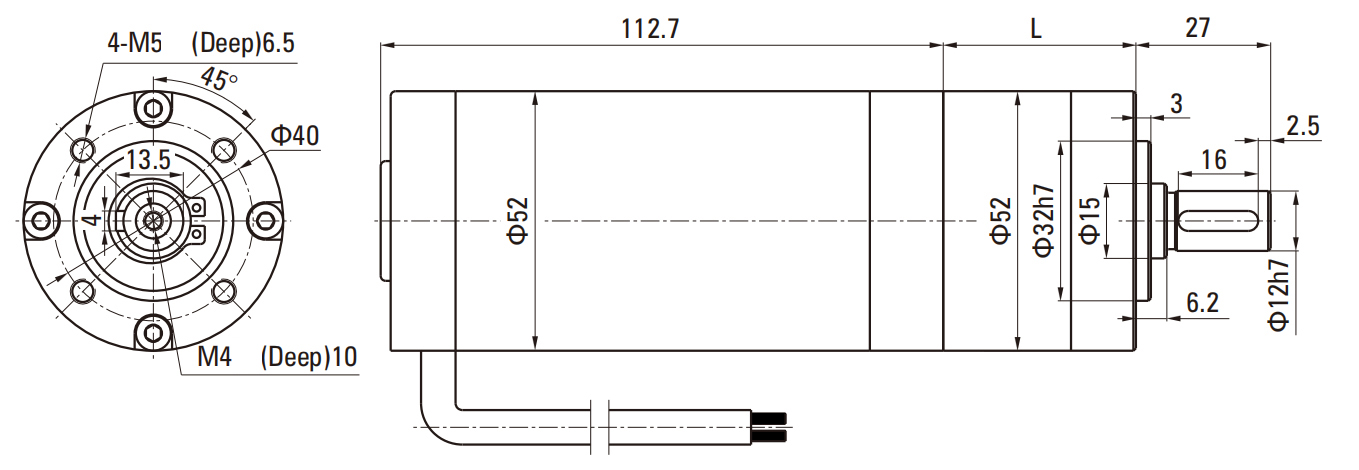

Outside Diameter 52mm DC Brush Motor
| Motor Type | Gearbox Model | Gear Ratio | Dimension |
|---|---|---|---|
| Z52DPN | 52PN□ | 3.65~8.63 | 38.6 |
| 13.53~58.22 | 54.2 | ||
| 67.08~392.98 | 69.8 |
Brush DC Motor Technical Data
| Motor Type | Voltage V | Power W | No-load Current A | No-load Speed RPM | Rated Current A | Rated Speed RPM | Rated Torque N.m | Motor Life H |
|---|---|---|---|---|---|---|---|---|
| Z52DPN2440-30S | 24 | 25 | 1.0 | 3500 | 2.5 | 3000 | 0.127 | 2000 |
| Z52DPN2460-30S | 24 | 60 | 1.2 | 3600 | 4.0 | 3000 | 0.191 | 2000 |
Brush DC Planetary Gear Motor Technical Data-Z52DPN2440-30S
| Ratio | 3.65 | 5.36 | 6.55 | 8.63 | 13.53 | 18.92 | 24.65 | 28.05 | 33.92 | 44.69 | 58.22 | 67.08 | 81.11 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output shaft speed | 822 | 560 | 458 | 348 | 222 | 159 | 122 | 107 | 89 | 67 | 52 | 45 | 37 |
| Allowable torque | 0.42 | 0.61 | 0.75 | 0.99 | 1.39 | 1.95 | 2.54 | 2.89 | 3.49 | 4.60 | 5.99 | 6.22 | 7.52 |
| Reduction stage | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 3 |
Brush DC Planetary Gear Motor Technical Data-Z52DPN2440-30S (2)
| Ratio | 91.36 | 102.88 | 118.98 | 127.74 | 145.36 | 165.64 | 191.56 | 231.61 | 301.68 | 392.98 |
|---|---|---|---|---|---|---|---|---|---|---|
| Output shaft speed | 33 | 29 | 25 | 24 | 21 | 18 | 16 | 13 | 9.9 | 7.6 |
| Allowable torque | 8.47 | 9.54 | 11.03 | 11.84 | 13.48 | 15.36 | 17.76 | 21.47 | 25.00 | 25.00 |
| Reduction stage | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
Key Features
- ZPNΦ52 Brush DC Planetary Gear Motor: OEM motion component configured for your application
- Custom shafts, windings, and mounts available
- US engineering support with overseas manufacturing cost structure
- Prototype to production volumes
Configuration Options
- Custom shafts, windings, encoders, and cable assemblies on request
- Prototype samples through production volumes
Applications
- Robotics
- Automation
- Medical
- Instruments
- Mobile platforms
When to Choose This Model
Choose planetary DC gearmotors for high torque density and low noise in round packages.
