Brush DC Gearmotors40W RIGHT ANGLE
40W Right Angle DC Brush Gear Motor
The 40W Right Angle DC Brush Gear Motor is available from Source Engineering Inc. in Santa Clara, CA for OEM brush dc gearmotors programs. Contact us for sizing, customization, samples, and volume pricing.
40W Right Angle DC Brush Gear Motor

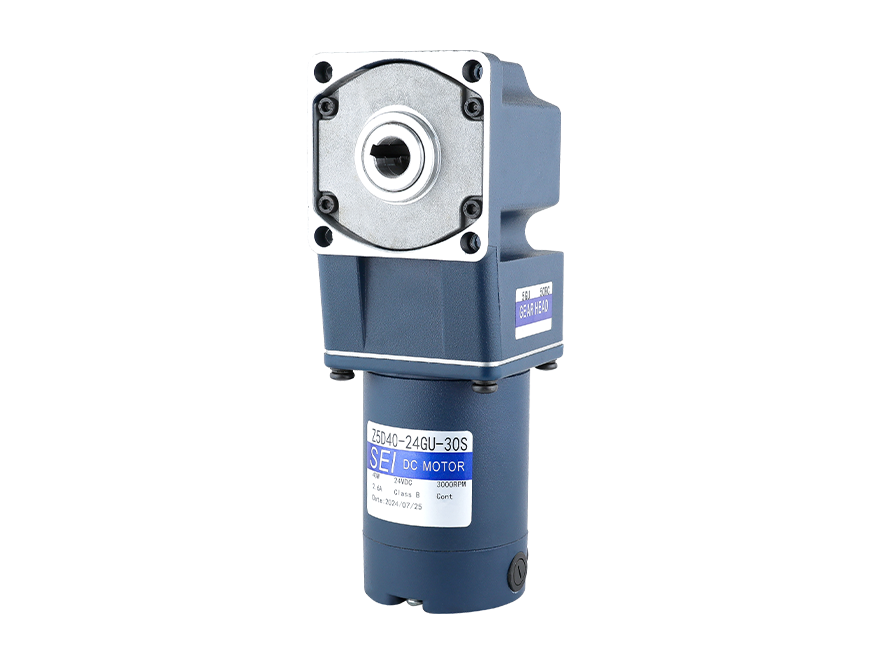

90mm Right Angle DC Brush Gear Motor(GU Type)
Spiral Bevel Right Angle Gearmotor
- 40 Watt
- 12, 24, 90VDC
- 3-200:1 Ratio
- Custom shafts
- GU Type – Heavy Duty Gears with Higher Torque Capabilities
Motor Performance Parameters
| Model | Voltage | Power | No-load Parameters | Load Parameters | Brush Life | Motor Weight | |||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Torque | Current | |||||
| V | W | r/min | A | r/min | mN.m | A | H | kg | |
| Z5D40-12□ | 12 | 40 | 3100 | 2.0Max. | 2800 | 136 | 5.2 | 2000 | 1.9 |
| Z5D40-24□ | 24 | 40 | 3000 | 1.0Max. | 2800 | 136 | 2.6 | 2000 | 1.9 |
| Z5D40-90□ | 90 | 40 | 3200 | 0.3Max. | 3000 | 127 | 0.7 | 2000 | 1.9 |
Gear Motor Specification: (N.m) / (kgf.cm)
| Type Motor/Gearhead | Gear Ratio | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Speed r/min | 373 | 311 | 224 | 186 | 155 | 112 | 93 | 77 | 56 | 46 | 37 | 31 | 28 | 23 | 18 | 15 | |
| Z5D40-24GU-28S | 5GU□RC 5GU□RT | 0.75 | 0.90 | 1.24 | 1.49 | 1.79 | 2.32 | 2.78 | 3.01 | 4.18 | 5.37 | 6.71 | 8.06 | 8.95 | 10.7 | 13.4 | 16.1 |
| 7.65 | 9.18 | 12.6 | 15.2 | 18.3 | 23.7 | 28.4 | 30.7 | 42.6 | 54.8 | 68.4 | 82.2 | 91.3 | 109 | 137 | 164 |

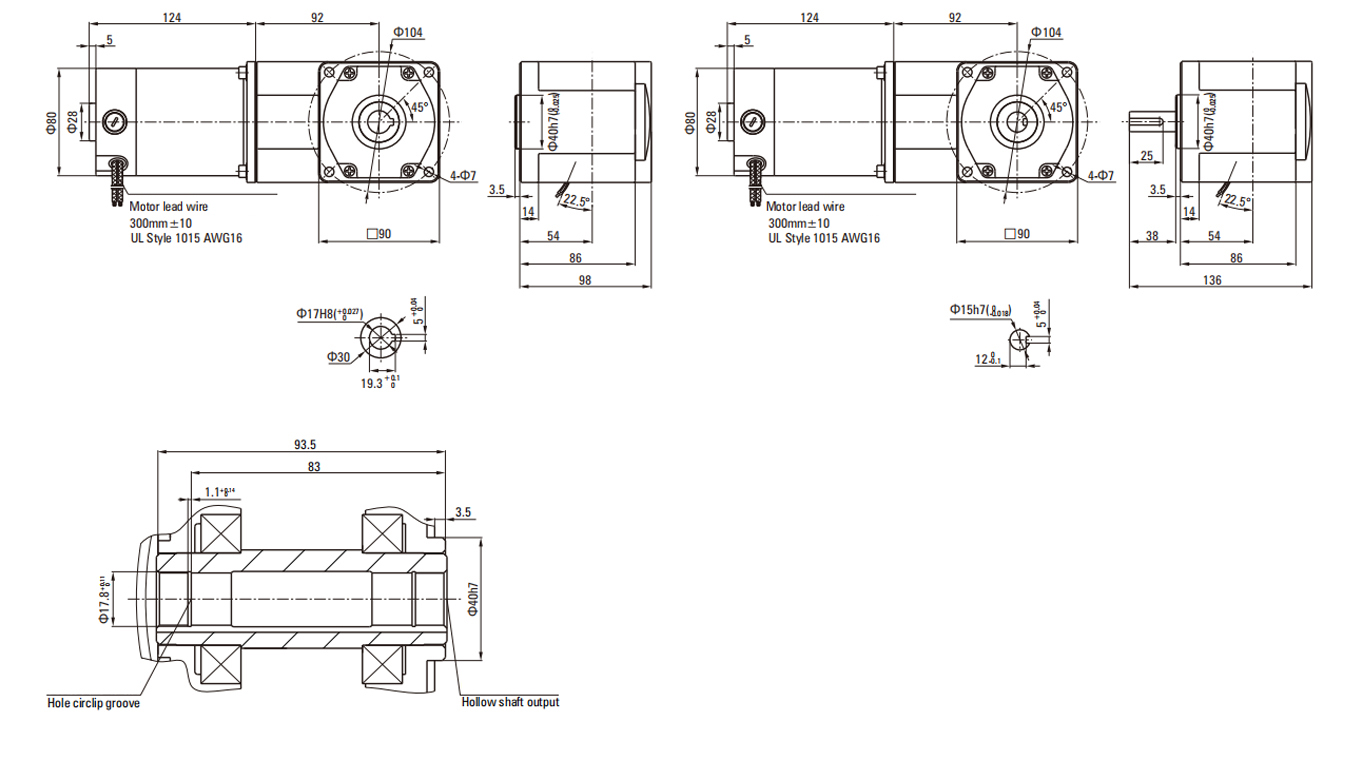

Dimensions (Unit: mm)

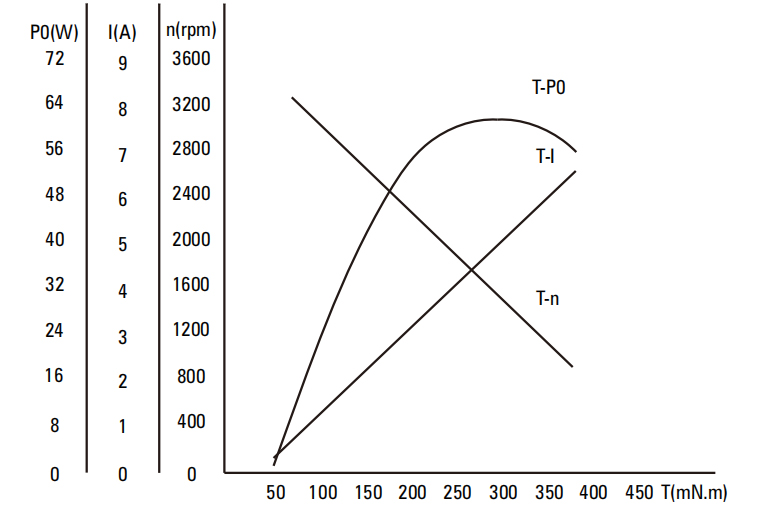

Characteristic Curve Of Motor
Wiring Diagram Of Motor
Standard length of lead wire: 300mm±10, Model: Ul1015, Type: AWG20; Lead wire length, model will be customized by client request meant under allowed circumstance of adoptable dimension.
