25W Brush DC Gear Motor 70mm
The 25W Brush DC Gear Motor 70mm is available from Source Engineering Inc. in Santa Clara, CA for OEM brush dc gearmotors programs. Contact us for sizing, customization, samples, and volume pricing.
25W Brush DC Gear Motor 70mm

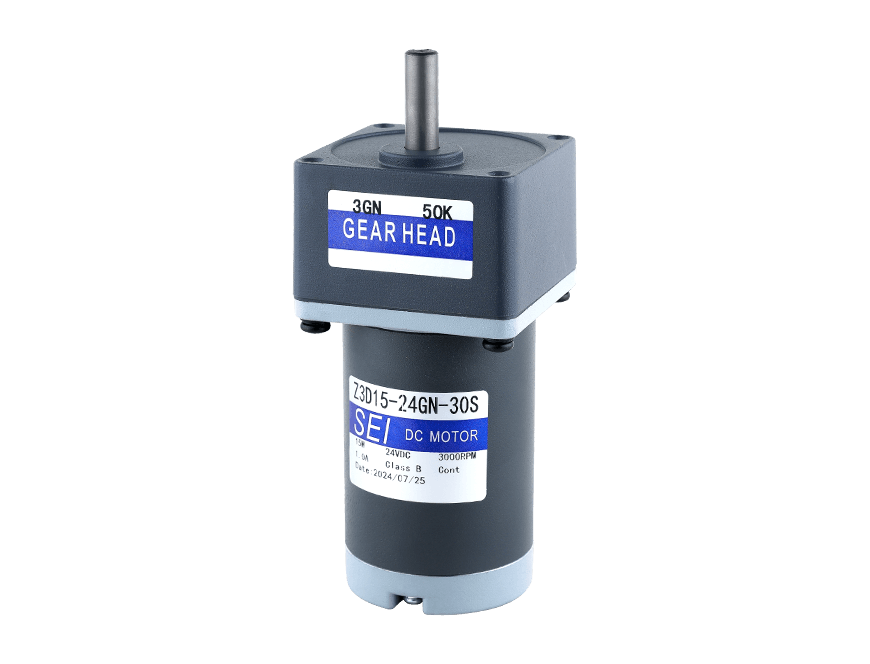

25W Brush DC Gear Motor
Parallel shaft gearbox
- aa
- bb
- cc
- Custom shafts
Motor Performance Parameters
| Model | Voltage | Power | No-load Parameters | Load Parameters | Brush Life | Motor Weight | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Torque | Current | ||||||||||||
| V | W | r/min | A | r/min | mN.m | A | H | kg | ||||||||
| Z3D25-12□ | 12 | 25 | 3300 | 1.0Max. | 3000 | 80 | 3.5 | 2000 | 1.0 | |||||||
| Z3DW25-12□ | 12 | 25 | 3300 | 1.0Max. | 3000 | 80 | 3.5 | 2000 | 1.0 | |||||||
| Z3D25-24□ | 24 | 25 | 3200 | 0.5Max. | 2800 | 85 | 1.6 | 2000 | 1.0 | |||||||
| Z3DW25-24□ | 24 | 25 | 3200 | 0.5Max | 2800 | 85 | 1.6 | 2000 | 1.0 | |||||||
| Z3D25-90□ | 90 | 25 | 3100 | 0.3Max. | 2700 | 88 | 0.6 | 2000 | 1.0 | |||||||
| Z3DW25-90□ | 90 | 25 | 3100 | 0.3Max | 2700 | 88 | 0.6 | 2000 | 1.0 | |||||||
- Motor voltage, power and speed will be customized according to his request under the allowed circumstance of adoptable dimension.
- We use W after D in the model to express the external brush motor, such as Z2DW06-12GN. If no W, it means the standard internal brush motor. For external brush motor, you can replace the brush directly. For internal ones, we need to disassembly the motor.
Gear Motor Specification: (N.m) / (kgf.cm)
| Type | Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Z3D25-24GN | Speed r/min | 933 | 778 | 560 | 467 | 373 | 311 | 280 | 224 | 187 | 156 | 140 | 112 | 93 | 78 | 70 | 56 | 47 | 37 | 31 | 28 | 23 | 19 | 16 | 14 |
| 3GN□K | 0.21 | 0.25 | 0.35 | 0.41 | 0.52 | 0.62 | 0.69 | 0.86 | 1.04 | 1.24 | 1.24 | 1.55 | 1.86 | 2.24 | 2.49 | 3.11 | 3.73 | 4.66 | 5.00 | 5.00 | 5.00 | 5.00 | 5.00 | 5.00 | |
| 2.03 | 2.44 | 3.38 | 4.06 | 5.08 | 6.09 | 6.77 | 8.46 | 10.2 | 12.2 | 12.2 | 15.2 | 18.3 | 21.9 | 24.4 | 30.5 | 36.6 | 45.7 | 50.0 | 50.0 | 50.0 | 50.0 | 50.0 | 50.0 |

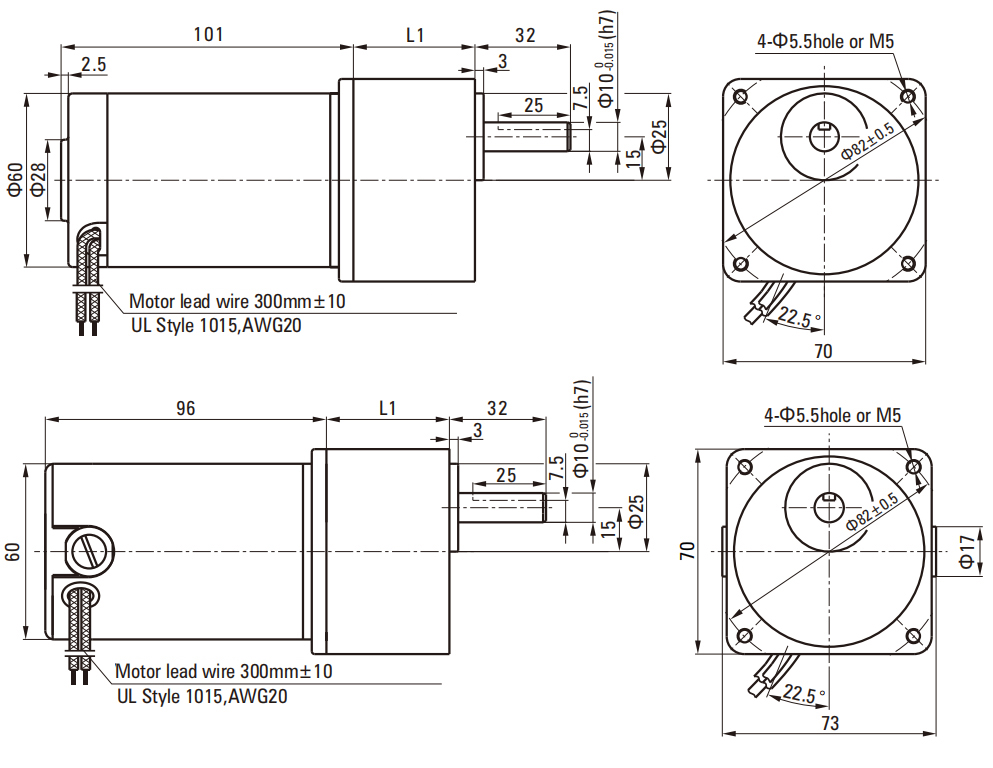

Dimensions (Unit: mm)
Lead Wiring Type
| Motor Model | Gearhead Model | Gear Ratio | L1 |
|---|---|---|---|
| Z3D25-12GN Z3DW25-12GN Z3D25-24GN Z3DW25-24GN Z3D25-90GN Z3DW25-90GN | 3GN□K | 3～200 | 42 |
- Enter the gear ratio in the box (□) within the model name.
- Gear ratio 3~18, short case is possible (L1=32).
Wiring Diagram Of Motor
Standard length of lead wire: 300mm±10, Model: Ul1015, Type: AWG20; Lead wire length, model will be customized by client request meant under allowed circumstance of adoptable dimension.
