Brush DC Gearmotors250W 90MM
250W Brush DC Gear Motor 90mm
The 250W Brush DC Gear Motor 90mm is available from Source Engineering Inc. in Santa Clara, CA for OEM brush dc gearmotors programs. Contact us for sizing, customization, samples, and volume pricing.

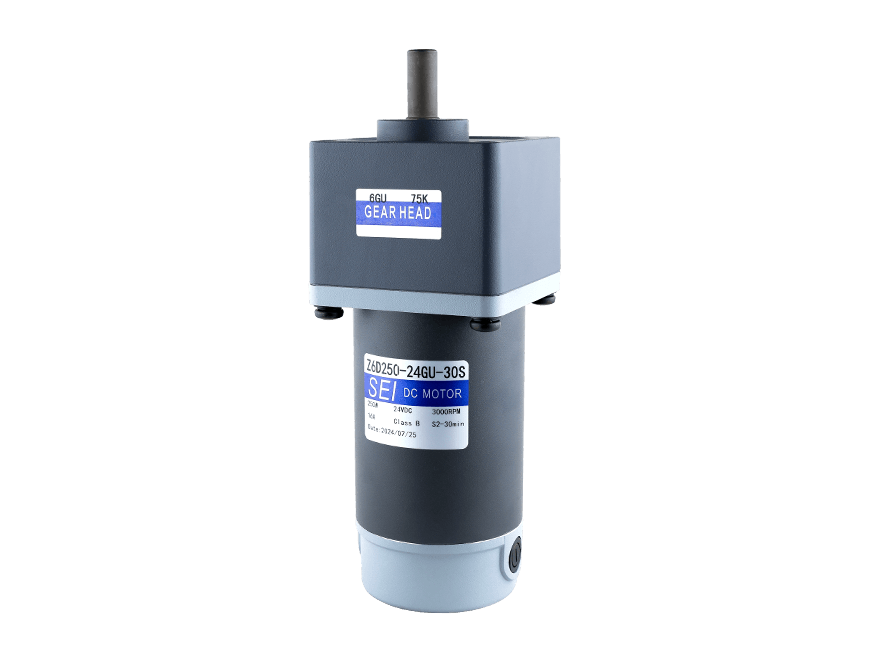

250W Brush DC Gear Motor 90mm
90mm Brush DC Gear Motor(GU Type)
Parallel shaft gearbox
- 250 Watt
- 12, 24, 90VDC
- 3-200:1 Ratio
- Custom shafts
- GU Type – Heavy Duty Gears, High torque capabilities
Motor Performance Parameters
| Model | Voltage | Power | No-load Parameters | Load Parameters | Brush Life | Motor Weight | |||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Torque | Current | |||||
| V | W | r/min | A | r/min | mN.m | A | H | kg | |
| Z55D250-24□ | 24 | 250 | 3400 | 3.0Max. | 3000 | 796 | 16.0 | 2000 | 3.2 |
| Z55D250-90□ | 90 | 250 | 3300 | 1.2Max. | 3000 | 796 | 4.20 | 2000 | 3.2 |
| Z55D250-220□ | 220 | 250 | 3300 | 0.9Max. | 3000 | 796 | 2.20 | 2000 | 3.2 |
Gear Motor Specification: (N.m) / (kgf.cm)
| Type | Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Z55D250-24GU | Speed r/min | 1000 | 833 | 600 | 500 | 400 | 333 | 300 | 240 | 200 | 167 | 150 | 120 | 100 | 83 | 75 | 60 | 50 | 40 | 33 | 30 | 25 | 20 | 17 | 15 |
| 5GU□KB | 1.93 | 2.32 | 3.22 | 3.87 | 4.83 | 5.80 | 5.80 | 7.25 | 8.70 | 10.4 | 10.4 | 13.1 | 15.7 | 18.8 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | |
| 19.0 | 22.7 | 31.6 | 37.9 | 47.4 | 56.9 | 56.9 | 71.1 | 85.3 | 102 | 102 | 128 | 154 | 184 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 |

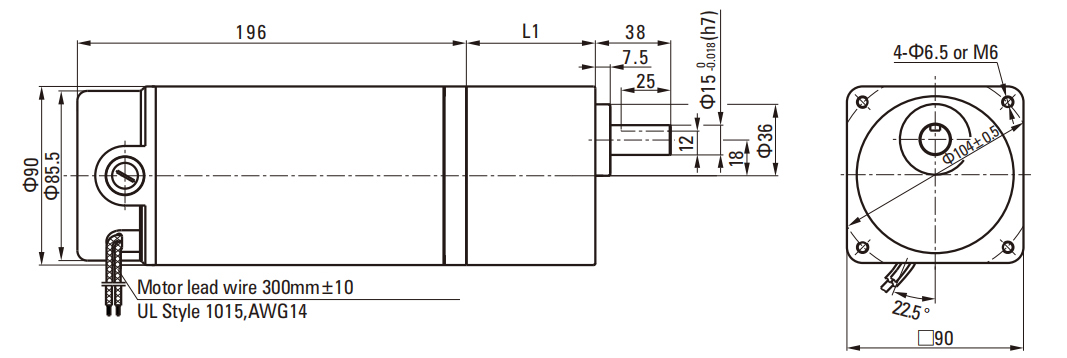

Dimensions (Unit: mm)
| Motor Model | Gearhead Model | Gear Ratio | L1 |
|---|---|---|---|
| Z55D250-24GU | 5GU□KB | 3～200 | 65.5 |
| Z55D250-90GU | |||
| Z55D250-220GU |

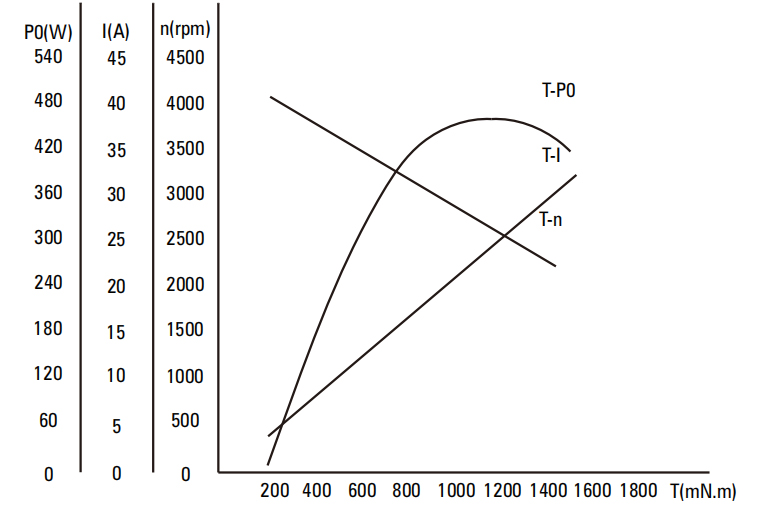

Characteristic Curve Of Motor
Wiring Diagram Of Motor
Standard length of lead wire: 300mm±10, Model: Ul1015, Type: AWG20; Lead wire length, model will be customized by client request meant under allowed circumstance of adoptable dimension.
