Brush DC Gearmotors15W 70MM
15W Brush DC Gear Motor 70mm
The 15W Brush DC Gear Motor 70mm is available from Source Engineering Inc. in Santa Clara, CA for OEM brush dc gearmotors programs. Contact us for sizing, customization, samples, and volume pricing.
15W Brush DC Gear Motor 70mm

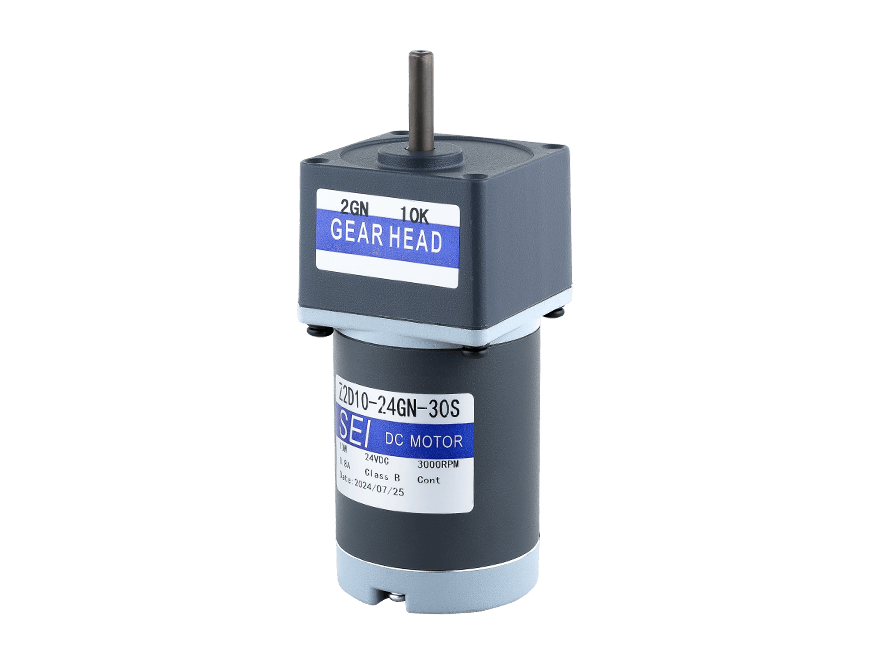

60mm Brush DC Gear Motor
Parallel shaft gearbox
- 15 Watt
- 12, 24, 90VDC
- 3-200:1 Ratio
- Custom shafts
Motor Performance Parameters
| Model | Voltage | Power | No-load Parameters | Load Parameters | Brush Life | Motor Weight | |||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Torque | Current | |||||
| V | W | r/min | A | r/min | mN.m | A | H | kg | |
| Z2D15-12□ | 12 | 15 | 3200 | 0.8Max. | 2950 | 48 | 2.0 | 2000 | 0.9 |
| Z2DW15-12□ | 12 | 15 | 3200 | 0.8Max. | 2950 | 48 | 2.0 | 2000 | 0.9 |
| Z2D15-24□ | 24 | 15 | 3300 | 0.4Max. | 3000 | 48 | 1.0 | 2000 | 0.9 |
| Z2DW15-24□ | 24 | 15 | 3300 | 0.4Max. | 3000 | 48 | 1.0 | 2000 | 0.9 |
| Z2D15-90□ | 90 | 15 | 3200 | 0.2Max. | 3000 | 48 | 0.4 | 2000 | 0.9 |
| Z2DW15-90□ | 90 | 15 | 3200 | 0.2Max. | 3000 | 48 | 0.4 | 2000 | 0.9 |
Gear Motor Specification: (N.m) / (kgf.cm)
| Type | Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Z2D15-24GN | Speed r/min | 1000 | 833 | 600 | 500 | 400 | 333 | 300 | 240 | 200 | 167 | 150 | 120 | 100 | 83 | 75 | 60 | 50 | 40 | 33 | 30 | 25 | 20 | 17 | 15 |
| 2GN□K | 0.12 | 0.14 | 0.19 | 0.23 | 0.29 | 0.35 | 0.39 | 0.48 | 0.58 | 0.70 | 0.70 | 0.87 | 1.04 | 1.25 | 1.39 | 1.74 | 1.88 | 2.35 | 2.82 | 3.00 | 3.00 | 3.00 | 3.00 | 3.00 | |
| 1.14 | 1.36 | 1.90 | 2.27 | 2.84 | 3.41 | 3.79 | 4.74 | 5.69 | 6.82 | 6.82 | 8.53 | 0.23 | 12.28 | 13.65 | 17.1 | 18.4 | 23.0 | 27.6 | 30.0 | 30.0 | 30.0 | 30.0 | 30.0 |

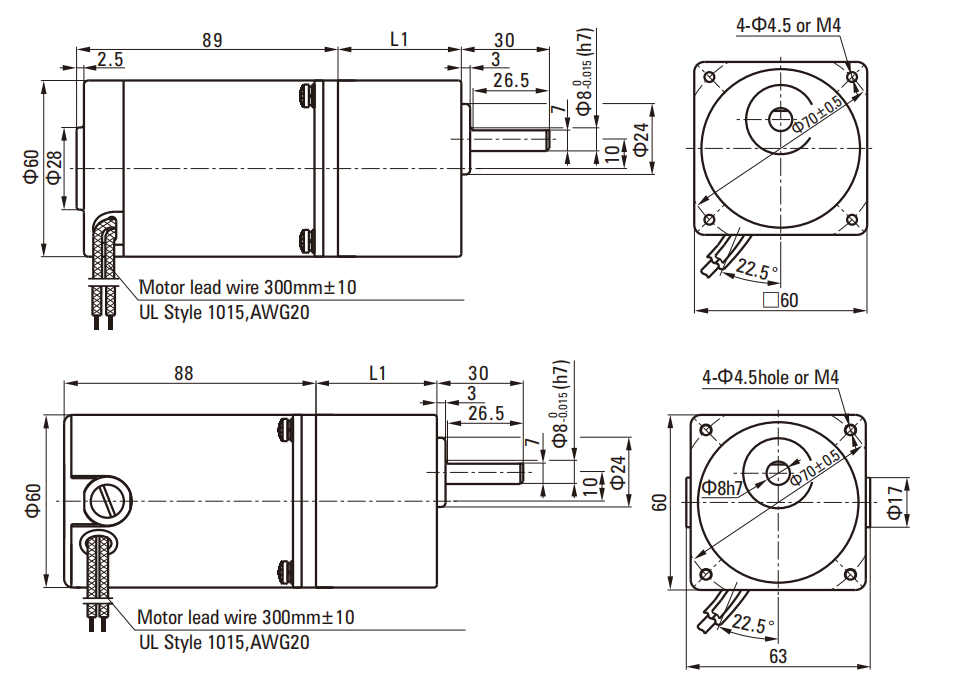

Dimensions (Unit: mm)
| Motor Model | Gearhead Model | Gear Ratio | L1 |
|---|---|---|---|
| Z2D15-12GN | 2GN□K | 3～200 | 41 |
| Z2DW15-12GN | |||
| Z2D15-24GN | |||
| Z2DW15-24GN | |||
| Z2D15-90GN | |||
| Z2DW15-90GN |

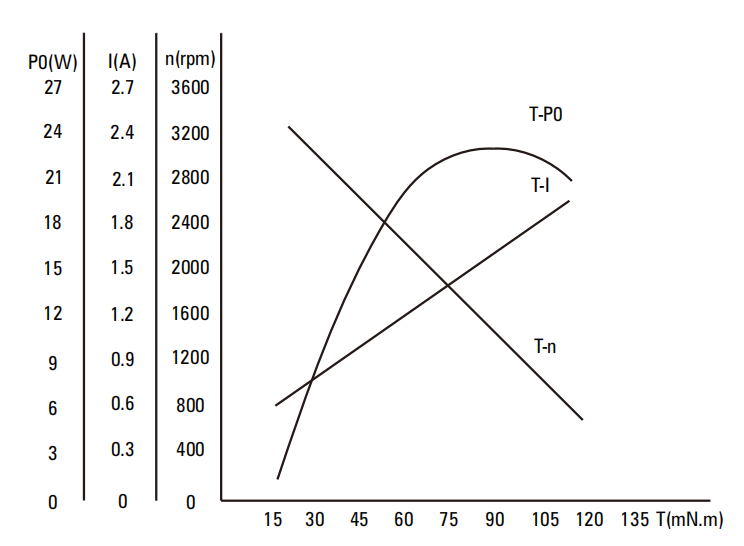

Characteristic Curve Of Motor
Wiring Diagram Of Motor
Standard length of lead wire: 300mm±10, Model: Ul1015, Type: AWG20; Lead wire length, model will be customized by client request meant under allowed circumstance of adoptable dimension.
