RV/ Harmonic Reducer

SHF(Simple Unit Type)

PDF Drawing + Contact us

Symbol\Model		14	17	20	25	32
φA h6		50	60	70	85	110
φB1		14	18	21	26	26
φC H7	Standard	6	8	9	11	14
φC H7	Max	8	10	13	15	15
D*	SHF	28.5⁺⁰_-0.8	32.5⁺⁰_-0.9	33.5⁺⁰_-1.0	37⁺⁰_-1.1	44⁺⁰_-1.1
E		23.5	26.5	29	34	42
F*		5	6	4.5	3	2
G		2.4	3	3	3.3	3.6
H		14.1	16	17.5	18.7	23.4
I		7	7.5	8.5	12	15
J		6	6.5	7.5	10	14
K*	SHF	0.4	0.3	0.1	2.1	2.5
L	SHF	17.6⁺⁰_-0.1	19.5⁺⁰_-0.1	20.1⁺⁰_-0.1	20.2⁺⁰_-0.1	22⁺⁰_-0.1
φM1		70	80	90	110	142
φM2		48	60	70	88	114
0		8	12	12	12	12
φP		3.5	3.5	3.5	4.5	5.5
φ0		0.25	0.25	0.25	0.25	0.25
ΦR		64	74	84	102	132
S		2	4	4	4	4
T1		M3X6	M3X6	M3X8	M3X8	M4X8
T2		22.5°	15°	15°	15°	15°
φU		44	54	62	77	100
V		一	一	10.4	12.8	16.3
W Js9		一	一	3	4	5
X1		12 E.A.8	20 E.A.16	16	16	16
X2		M3X5	M3X6	M3X6	M4X7	M5X8
Y1		φ3.5X6	φ3.5X6.5	φ3.5X7.5	φ4.5X10	φ5.5X14
Y2		0.25	0.25	0.25	0.25	0.25
Z1		4	4	4	4	4
Z2		M3X6	M3X6	M3X8	M3X10	M4X16
Housing inner wall	Φa	38	45	53	66	86
	b	1	1	1.5	1.5	1.5
	Φc	31	38	45	56	73
d		1.7	2.1	2	2	2
e		D49585	D59685	D69785	D84945	D1101226
Weight(kg)		0.41	0.57	0.81	1.31	2.94

*Specification with * mark: The D/F/K indicate the mounting positions in the shaft direction and allowance of the three parts--wave generator, flex spline, circular spline.
Strictly follow the requirement of these specifications as they affect the performance and intensity.

*Please note that in the circular spline there does not incorporate an O-ring groove (ymbol f). Please provide alternate sealing arrangements during the designing and installing.

*Due to the deformation of the Flexspline during operation, it is necessary to provide a minimum housing clearance, dimensions Φa, b, c.

*The wave generator is packed separately when the product is delivered.

*The following dimensions can be modified to accommodate customer-specific requirements.
Wave Generator: C
Flexspline: O and P

Circular Spline: X1 and X2

Note 1: It is recommended to have a housing undercut on the install concave.

Note 2: Refer to the confirmation drawing for detailed dimensions. Especially be certain to check the delivered specifications since the configuration of the wave generator varies depends on the size.

Symbol\Model		14	17	20	25	32
ΦA h6		50	60	70	85	110
φB1		-	-	-	-	-
C		52.5⁺⁰ _-0.1	56.5⁺⁰ _-0.1	51.5⁺⁰ _-0.1	55.5⁺⁰ _-0.1	65.5⁺⁰ _-0.1
D1*	SHF	16^+0.8₊₀	16^+0.9₊₀	9.5^+1.0₊₀	10^+1.1₊₀	12^+1.1₊₀
D2		23.5	26.5	29	34	42
D3*		13	14	13	11.5	11.5
E1		2.4	3	3	3.3	3.6
E2		14.1	16	17.5	18.7	23.4
E3		7	7.5	8.5	12	15
F		6	6.5	7.5	10	14
φG H6		48	60	70	88	114
φH h6		70	80	90	110	142
Wave generator dimensions	l1	20±0.1	21.5±0.1	19±0.1	20±0.1	29±0.1
	l2	20±0.1	21.5±0.1	20±0.1	22.5±0.1	23.5±0.1
	(13)	12.5	13.5	12.5	13	13
	J1	2.5	2.5	-	-	-
	J2	7	7	7	6.5	-
	J3	7	7	7	6.5	-
	J4	-	-	-	-	-
	K1	-	-	-	-	-
	K2	-	-	-	-	-
	φL1	22	27	32	42	47
	φL2 j6	20	25	30	40	45
	φL3 h9	-	-	-	38	-
	φL4 H7	14	19	21	29	36
	φL5 f7	20	25	30	-	45
	ΦM1	22	27	32	42	49
	φM2 h7	20	25	30	38	45
	φM3	-	-	-	-	42.5
	φM4 H7	14	19	21	29	36
	ΦN1 j6	20	25	30	40	45
	ΦN2	14.5	19.5	21.5	29.5	36.5
	01	10	10	10	10	10
	02	22.5	24.5	(19.5)	22.5	(30.5)
	03	20	22	22	23	25
P1		3	3	6	6	6
P2		M3	M3	M3X6	M3X6	M3X6
φP3		-	-	0.25	0.25	0.25
Q1		8	12	12	12	12
φ02		3.5	3.5	3.5	4.5	5.5
φ03		0.25	0.25	0.25	0.25	0.25
ΦR		64	74	84	102	132
φS		-	-	25.5	33.5	40.5
T1		2	4	4	4	4
T2		M3X6	M3X6	M3X8	M3X8	M4X8
T3(angle)		22.5°	15°	15°	15°	15°
φU		44	54	62	/	100
V1		8 parts of 12 equally divided ones	16 parts of 20 equally divided ones	16	16	16
V2		M3X5	M3X6	M3X6	M4X7	M5X8
V3		φ3.5X6	φ3.5X6.5	φ3.5X7.5	φ4.5X10	φ5.5X14
V4		0.25	0.25	0.25	0.25	0.25
W1		4	4	4	4	4
W2		M3X6	M3X6	M3X8	M3X10	M4X16
Minimum housing clearance	φa	38	45	53	66	86
	b	1	1	1.5	1.5	1.5
	Φc	31	38	45	56	73
d		1.7	2.1	2	2	2
e		D49585	D59685	D69785	D84945	D1101226

*Specification with * mark: The D/F/K indicate the mounting positions in the shaft direction and allowance of the three parts--wave generator, flex spline, circular spline.
Strictly follow the requirement of these specifications as they affect the performance and intensity.
*Please note that in the circular spline there does not incorporate an O-ring groove (Symbol f). Please provide alternate sealing arrangements during the designing and installing.

*Due to the deformation of the Flexspline during operation, it is necessary to provide a minimum housing clearance, dimensions Φa, b, c.

*The wave generator is packed separately when the product is delivered.

*The following dimensions can be modified to accommodate customer-specific requirements.
Wave Generator: C
Flexspline: O and P

Circular Spline: X1 and X2

RV/ Harmonic Reducer

SHF(Unit Type)

PDF Drawing + Contact us

Model	Reduction ratio	Rated torque @2000 r/min (N ·m)	Permissible peak torque of starting/stopping (N ·m)	Permissible max. value of ave. load torque (N ·m)	Instantaneous permissible max torque (N ·m)	Permissible max. input rotational speed (r/min)	Permissible ave input rotational speed (r/min)	Inertia moment (×10^-4kgm²)	Life in design (h)
14	50	5.4	18	6.9	35	8500	3500	0.033	10000
	80	7.8	23	11	47
	100	7.8	28	11	54
17	50	16	34	26	70	7300	3500	0.079	10000
	80	22	43	27	87
	100	24	54	39	108
20	50	25	56	34	98	6500	3500	0.193	10000
	80	34	74	47	127
	100	40	82	49	147
	120	40	87	49	147
25	50	39	98	55	186	5600	3500	0.413	10000
	80	63	137	87	255
	100	67	157	108	284
	120	67	167	108	304
32	50	76	216	108	382	4800	3500	1.690	10000
	80	118	304	167	568
	100	137	333	216	647
	120	137	353	216	686

Transmission accuracy

Model\Reduction ratio	14	17	20	25	32
50	1.8	1.8	1.5	1.5	1.5
80 or more	1.5	1.5	1.2	1.2	1.2

Lost motion

Model\Reduction ratio	14	17	20	25	32
50	2.0	2.0	2.0	2.0	2.0
80 or more	1.0	1.0	1.0	1.0	1.0

Max. backlash quantity

Model\Reduction ratio	14	17	20	25	32
50	60	60	36	36	36
80	40	40	32	32	32
100	35	35	35	30	30
120				28	28

Model	Reduction ratio	Rated torque @2000 r/min (N ·m)	Permissible peak torque of starting/stopping (N ·m)	Permissible max. value of ave.load torque (N ·m)	Instantaneous permissible max torque (N ·m)	Permissible max. input rotational speed (r/min)	Permissible ave input rotational speed (r/min)	Inertia moment (×10⁴kgm²)	Life in design (h)
14	50	5.4	18	6.9	35	8500	3500	0.033	10000
	80	7.8	23	11	47
	100	7.8	28	11	54
17	50	16	34	26	70	7300	3500	0.079	10000
	80	22	43	27	87
	100	24	54	39	108
20	50	25	56	34	98	6500	3500	0.193	10000
	80	34	74	47	127
	100	40	82	49	147
	120	40	87	49	147
25	50	39	98	55	186	5600	3500	0.413	10000
	80	63	137	87	255
	100	67	157	108	284
	120	67	167	108	304
32	50	76	216	108	382	4800	3500	1.690	10000
	80	118	304	167	568
	100	137	333	216	647
	120	137	353	216	686

Transmission accuracy

Model\Reduction ratio	14	17	20	25	32
50	1.8	1.8	1.5	1.5	1.5
80 or more	1.5	1.5	1.2	1.2	1.2

Lost motion

Model\Reduction ratio	14	17	20	25	32
50	2.0	2.0	2.0	2.0	2.0
80 or more	1.0	1.0	1.0	1.0	1.0

Max. backlash quantity

Model\Reduction ratio	14	17	20	25	32
50	60	60	36	36	36
80	40	40	32	32	32
100	35	35	35	30	30
120				28	28

Note 1: It is recommended to have a housing undercut on the install concave. Please check the confirmation drawing or contact us for dimension tolerances which are not shown in the drawing.

Symbol\Model		14	17	20	25	32
T₁	N·m	2.00	3.90	7.00	14.0	29.0
T₂	N·m	6.90	12.0	25.0	48.0	108
Reduction ratio 50	K₁ (×10⁴N-m/rad)	0.34	0.81	1.30	2.50	5.40
	K₂ (×10⁴N-m/rad)	0.47	1.10	1.80	3.40	7.80
	K₃ (×10⁴N-m/rad)	0.57	1.30	2.30	4.40	9.80
	θ₁ (arc min)	2.00	1.70	1.80	1.90	1.90
	θ₂ (arc min)	5.60	4.20	5.30	5.40	5.40
Reduction ratio 80 or more	K₁ (×10⁴N-m/rad)	0.47	1.00	1.60	3.10	6.70
	K₂ (×10⁴N-m/rad)	0.61	1.40	2.50	5.00	11.0
	K₃ (×10⁴N-m/rad)	0.71	1.60	2.90	5.70	12.0
	θ₁ (arc min)	1.40	1.30	1.50	1.50	1.50
	θ₂ (arc min)	4.20	3.30	3.90	3.80	4.00

Symbol\Model	14	17	20	25	32
φA H7	70	80	90	110	142
φB	54	64	75	90	115
φC h7	36	45	50	60	85
φD h7	74	84	95	115	147
φE h7	20	25	30	38	45
φF H7	14	19	21	29	36
G	52.5	56.5	51.5	55.5	65.5
H	12	12	5	6	7
I	20.5	23	25	26	32
J	20	21.5	21.5	23.5	26.5
K	6.5	6.5	一	一	一
L	9	10	10.5	10.5	12
M	8	8.5	9	8.5	9.5
N	7.5	8.5	7	6	5
0	21.7	23.9	25.5	29.6	36.4
ΦP(P)	(2.5)	(2.5)	25.5	33.5	40.5
0	3	3	6	6	6
R	M3	M3	M3X6	M3X6	M3X6
φS	64	74	84	102	132
T	8	12	12	12	12
φU	3.5	3.5	3.5	4.5	5.5
φV	44	54	62	77	100
W	12E.A.8	20 E.A.16	16	16	16
X	M3X5	M3X6	M3X6	M4X7	M5X8
X	φ3.5X11.5	φ3.5X12	φ3.5X13.5	φ4.5X15.5	φ5.5X20.5
φY	36	45	一	一	一
Z	5.5	5.5	一	一	一
a	6804ZZ	6805ZZ	6806ZZ	6808ZZ	6809ZZ
b	6804ZZ	6805ZZ	6806ZZ	6808ZZ	6809ZZ
C	D49585	D59685	D69785	D84945	D1101226
d	S20304.5	S25356	S30405	S38475	S48607
e	S20304.5	S25356	S30405	S38475	S45555
Mass(kg)	0.71	1.00	1.38	2.1	4.5

*The dimension tolerances are existing according to different manufacturing methods.

Note 1: It is recommended to have a housing undercut on the install concave.

Symbol\Model		14	17	20	25	32
T₁	N·m	2.00	3.90	7.00	14.0	29.0
T₂	N·m	6.90	12.0	25.0	48.0	108
Reduction ratio 50	K₁ (×10⁴N ·m/rad)	0.34	0.81	1.30	2.50	5.40
	K₂ (×10⁴N-m/rad)	0.47	1.10	1.80	3.40	7.80
	K₃ (×10⁴N-m/rad)	0.57	1.30	2.30	4.40	9.80
	θ₁ (arc min)	2.00	1.70	1.80	1.90	1.90
	θ₂ (arc min)	5.60	4.20	5.30	5.40	5.40
Reduction ratio 80 or more	K₁ (×10⁴N-m/rad)	0.47	1.00	1.60	3.10	6.70
	K₂ (×10⁴N-m/rad)	0.61	1.40	2.50	5.00	11.0
	K₃ (×10⁴N-m/rad)	0.71	1.60	2.90	5.70	12.0
	θ₁ (arc min)	1.40	1.30	1.50	1.50	1.50
	θ₂ (arc min)	4.20	3.30	3.90	3.80	4.00

Symbol\Model	14	17	20	25	32
DA H7	70	80	90	110	142
φB	54	64	75	90	115
φCh7	36	45	50	60	85
DD h7	74	84	95	115	147
φE h7	6	8	10	14	14
F	50.5	56	63.5	72.5	84.5
G	15	17	21	26	26
H	20.5	23	25	26	32
I	15	16	17.5	20.5	26.5
J	14	16	20	25	25
K	9	10	10.5	10.5	12
L	8	8.5	9	8.5	9.5
M	2.5	3	3	3	5
N	21.7	23.9	25.5	29.6	36.4
0	11	12	16.5	22.5	22.5
P	一	一	8.2⁺⁰ _-0.1	11⁺⁰ _-0.1	11⁺⁰ _-0.1
Q	0.5	0.5	3^-0 _-0.025	5^-0 _-0.03	5^-0 _-0.03
R	一	一	3^-0 _-0.025	5^-0 _-0.03	5^-0 _-0.03
S	一	一	M3X6	M5X10	M5X10
φT	64	74	84	102	132
U	8	12	12	12	12
φV	3.5	3.5	3.5	4.5	5.5
φW	44	54	62	77	100
X	12 E.A.8	20E.A.16	16	16	16
Y	M3X5	M3X6	M3X6	M4X7	M5X8
Y	φ3.5X11.5	φ3.5X12	φ3.5X13.5	φ4.5X15.5	φ5.5X20.5
a	698ZZ	6900ZZ	6902ZZ	6903ZZ	6904ZZ
b	695ZZ	697ZZ	698ZZ	6900ZZ	6902ZZ
C	D49585	D59685	D69785	D84945	D1101226
d	G8184	D10205	D15255	D15255	D20355
Mass(kg)	0.66	0.94	1.38	2.1	4.4

*The dimension tolerances are existing according to different manufacturing methods.

RV/ Harmonic Reducer

CSF Series Harmonic Drive Reducer

PDF Drawing + Contact us

Model	Reduction ratio	Rated torque@2000 r/min (N-m)	Permissible peak torque of starting/stopping (N-m)	Permissible max. value of ave. load torque (N-m)	Instantaneous permissible max. torque (N ·m)	Permissible max input rotational speed (r/min)	Permissible ave input rotational speed (r/min)	Inertia moment (×10^-4kgm²)	Life indesign (h)
14	50	5.4	18	6.9	35	8500	3500	0.033	10000
	80	7.8	23	11	47
	100	7.8	28	11	54
17	50	16	34	26	70	7300	3500	0.079	10000
	80	22	43	27	87
	100	24	54	39	108
20	50	25	56	34	98	6500	3500	0.193	10000
	80	34	74	47	127
	100	40	82	49	147
	120	40	87	49	147
25	50	39	98	55	186	5600	3500	0.413	10000
	80	63	137	87	255
	100	67	157	108	284
	120	67	167	108	304
32	50	76	216	108	382	4800	3500	1.690	10000
	80	118	304	167	568
	100	137	333	216	647
	120	137	353	216	686

Transmission accuracy

Model\Reduction ratio	14	17	20	25	32
50	1.8	1.8	1.5	1.5	1.5
80 or more	1.5	1.5	1.2	1.2	1.2

Lost motion

Model\Reduction ratio	14	17	20	25	32
50	2.0	2.0	2.0	2.0	2.0
80 or more	1.0	1.0	1.0	1.0	1.0

Max. backlash quantity

Model\Reduction ratio	14	17	20	25	32
50	60	60	36	36	36
80	40	40	32	32	32
100	35	35	35	30	30
120				28	28

Symbol\Model		14	17	20	25	32
T₁	N·m	2.00	3.90	7.00	14.0	29.0
T₂	N·m	6.90	12.0	25.0	48.0	108
Reduction ratio 50	K₁ (×10⁴N-m/rad)	0.34	0.81	1.30	2.50	5.40
	K₂ (×10⁴N-m/rad)	0.47	1.10	1.80	3.40	7.80
	K₃ (×10⁴N-m/rad)	0.57	1.30	2.30	4.40	9.80
	θ₁ (arc min)	2.00	1.70	1.80	1.90	1.90
	θ₂ (arc min)	5.60	4.20	5.30	5.40	5.40
Reduction ratio 80 or more	K₁ (×10⁴N-m/rad)	0.47	1.00	1.60	3.10	6.70
	K₂ (×10⁴N-m/rad)	0.61	1.40	2.50	5.00	11.0
	K₃ (×10⁴N-m/rad)	0.71	1.60	2.90	5.70	12.0
	θ₁ (arc min)	1.40	1.30	1.50	1.50	1.50
	θ₂ (arc min)	4.20	3.30	3.90	3.80	4.00

Note: The engagement length of bolt should be less than the depth of internal thread. ΦS represents the shape of the through hole which leads to the inside of the product. The shape of the output flange will be different according to different models of reducers. For details of dimensions, please confirm the delivered outline drawing with reducer.

Symbol\Model		14	17	20	25	32
ΦA		73	79	93	107	138
B*		41⁺⁰_-0.9	45⁺⁰_-0.9	45.5⁺⁰_-1.0	52⁺⁰_-1.0	62⁺⁰_-1.1
C		34	37	38	46	57
D*	CSF	7⁺⁰_-0.8	8⁺⁰_-0.9	7.5⁺⁰_-1.0	6⁺⁰_-1.0	5⁺⁰_-1.1
E		27	29	28	36	46
F		7	8	10	10	12
G		2	2	3	3	3
H		3.5	4	5	5	5
I		16.5	16.5	16.5	18.5	22.5
J		4.5	4.5	4	4.5	5.5
K		12	12	12.5	14	17
L		0.5	0.5	0.5	0.5	1.0
M1		9.4	9.5	9	12	15
N(⁺⁰ _-0.1)	CSF	17.6	19.5	20.1	20.2	22
φ0 h7		56	63	72	86	113
φP		55	62	70	85	112
φQ		42.5	49.5	58	73	96
ΦR1 H7		11	10	14	20	26
φS		8	7	10	15	20
ΦT h7		38	48	56	67	90
φU h7		6	8	12	14	14
V		一	9.4^+0.1₊₀	13.8^+0.1₊₀	16.3^+0.1₊₀	16.3^+0.1₊₀
W Js9			3	4	5	5
φX		23	27	32	42	55
Y		6	6	8	8	8
Z		M4X8	M5X10	M6X9	M8X12	M10X15
a		1	1	1.5	1.5	1.5
Φb		65	71	82	96	125
C	CSF	6	6	6	8	12
Φd		4.5	4.5	5.5	5.5	6.6
Φe		38	45	53	66	86
f	CSF	6	6	6	8	12
g		M4	M4	M5	M5	M6
h		29X0.5	34.5X0.8	40.64X1.14	53.28X0.99	S71:70.5X2
i		48X2	53X2	66X2	78X2	102X2
Φk		31	38	45	58	78
Φm		10	10.5	15.5	20	27
		21.4	23.5	23	29	37
t*	CSF	2	2	2.4	2.8	3
u*	CSF	6	7	7.4	8.8	11
Φy		14	18	21	26	26
Wight(kg)		0.52	0.68	0.98	1.5	3.2

*Specification with * mark: The B, D, t, u indicate the mounting positions in the shaft direction and allowance of the three parts--wave generator, flex spline, circular spline.
Strictly follow the requirement of these specifications as they affect the performance and intensity.

*The dimension tolerances are existing according to different manufacturing methods.

*The wave generator is packed separately when the product is delivered.

RV/ Harmonic Reducer

RCA(With Flange) Series RV Cycloidal Pin Wheel Reducer

PDF Drawing + Contact us

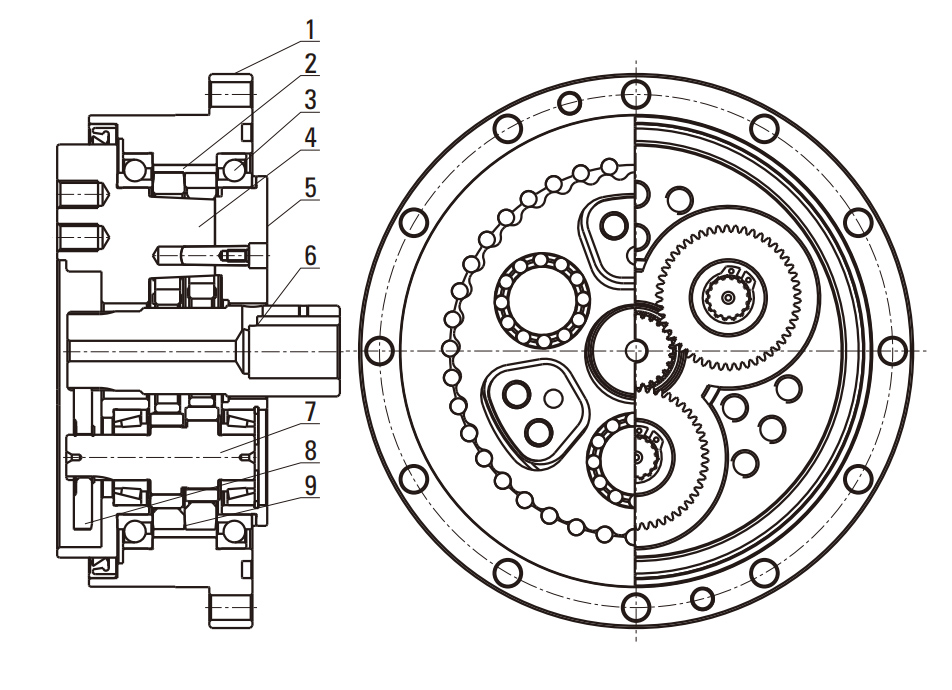

● C series reducer structure

1- Cycloidal gear

2- Output flange

3- Needle tooth shell

4- Pin gear

5- Main bearing

6- Supporting flange

7- Crankshaft

8- Planetary gear

9- Central gear

10- Low speed tube

Using Environment

In the following environmental conditions, the reducer should be able to operate normally:

—— The highest ambient temperature is changed by seasons and less than 40℃.
—— The lowest ambient temperature is -10℃.

Model Number

① Code, specific see table 1

C Series
Code	Outline dimension(mm)	The original code
10C	Φ145	150
27C	Φ181	180
50C	φ222	220
100C	φ250	250
200C	φ345	350
320C	Φ440	440

② BX: Cycloidal pin wheel reducer

③ 81: Gear ratio, specific see table 2

C Series
Code	Monomer reduction ratio
10CBX	27.00
27CBX	36.57
50CBX	32.54
100CBX	36.75
200CBX	34.86
320CBX	35.61
Note 1: Cseies gear ratio refers to the motor installed in the casing of the reduction ratio, if installed on the output flange side, the corresponding reduction ratio by 1.

④ Reducer type code
RVE: Main bearing built-in E type
RVC: Hollow type
REA: With input flange E type
RCA: With input flange hollow type

⑤ Enter the gear shaft type and motor shaft diameter
A: Standard Type A, E Series Input Gear A-axis.
C Series represents the standard sun gear.
B: Standard Type B, E Series Input Gear B-axis.
Z: Special matching type.
W: Nothing.
TB: C series synchronous pulley input type.

⑥ Reducer mounting type
B: Output shaft bolt fastening connection
P: Output shaft bolts and locating pins with the type

⑦ Motor shaft diameter

C output series torque and efficiency

Model\Qutput Speed Project	5 r/min		15 r/min			25 r/min		30 r/min		Maximum Allowable Loss Out Speed r/min
Model\Qutput Speed Project	Output Torque N.m	Input Power Kw	Output Torque N.m	Input Power Kw	Efficiency %	Output Torque N.m	Input Power Kw	Output Torque N.m	Input Power Kw	Maximum Allowable Loss Out Speed r/min
10CBX	134	0.09	98	0.20	78	89	0.3	87	0.35	80
27CBX	372	0.25	264	0.54	78	239	0.8	223	0.90	60
50CBX	745	0.50	490	1.00	78	447	1.5	434	1.75	50
100CBX	1490	1.00	980	2.00	78	894	3.0	819	3.30	40
120CBX	1490	1.00	1176	2.36	78	941	3.16	856	3.45	40
200CBX	2235	2.00	1960	4.00	78	1788	6.0	1638	6.60	30
320CBX	4470	3.00	3136	6.30	78	2830	9.5	/	/	25

Note 1: The rated torque is the output torque of the output speed of 15rpm. The input power considers the efficiency of the reducer.

Note 2: Torque calculation formula:

T=9549XPXη/N （T: Nm, P: Kw, N: RPM, η: % )。T=9549XPXη/N (T: Torque Nm, P: Power Kw, N: Speed RPM, η: Efficiency %).

Transmission Precision, Torsional Stiffness, Backlash And Backlash

* The torsional stiffness, backlash and backlash of the gear reducer shall meet the requirements of table 5 and table 6.

* The transmission accuracy of gear reducer shall conform to the requirements of table 5 and table 6.

Life

* When the reducer is working on rated speed and on-loading, reducer 's lift time is more than 6000 hours.

Allowable Torque (Bending Torque)

* The instant allowable torque is generally twice the allowable torque of the reducer.

* The allowable torque of the gear reducer shall meet to the requirements of table 5 and table 6.

Overload

* After reducer working under over-load for 5min with 125% rated torque, dudring the running, it have no noise and other damage.

Reducer Technical Parameters See Table

Model/Project	Retarder Monomer/Reduction Ratio	Allowable Moment N.m	Torsional Rigidity N.m/(Arc.min)	Stat And Stop Allowing Output Torque N.m	Instantaneous Maximum Torque N.m	Transmission Accuracy Arc. min	Backlash Of Backlash Arc.min	Life h	Retarder Inertia Moment Kg.m²	Weight kg
10CBX	27.00	686	47	245	490	1.0	1.0	6000	1.380X10^-5	4.60
27CBX	36.57	980	147	662	1323	1.0	1.0	6000	0.550X10^-4	8.50
50CBX	32.54	1764	255	1225	2450	1.0	1.0	6000	1.820X10^-4	14.6
100CBX	36.75	2450	510	2450	4900	1.0	1.0	6000	0.475X10^-3	19.5
120CBX	36.75	2940	588	2990	5880	1.0	1.0	6000	0.475X10^-3	19.5
200CBX	34.86	8820	980	4900	9800	1.0	1.0	6000	1.390X10^-3	55.6
320CBX	35.61	20580	1960	7840	15680	1.0	1.0	6000	0.518X10^-2	79.5

Note: Inertial moment value is the value of the reducer unit, without considering the inertial moment of the central gear and the input gear. For the inertia moment value converted by the motor shaft, refer to the following formula.

Lubrication

* The lubrication grease is not filled before gearbox leave factory. Please fill in the suggested lubrication grease during assembly, the amount is roughly 70~90% of the gearbox inside cavity volume

* Lubricating grease is generally replaced in 2000 hours. When the grease is contaminated or is used in harsh environments, it is necessary to check the condition of aging and pollution and to change the time

* Reducer using lubricating oil: Molywhite RE-00 or VIGO-grease REO other similar grade precision reducer special grease

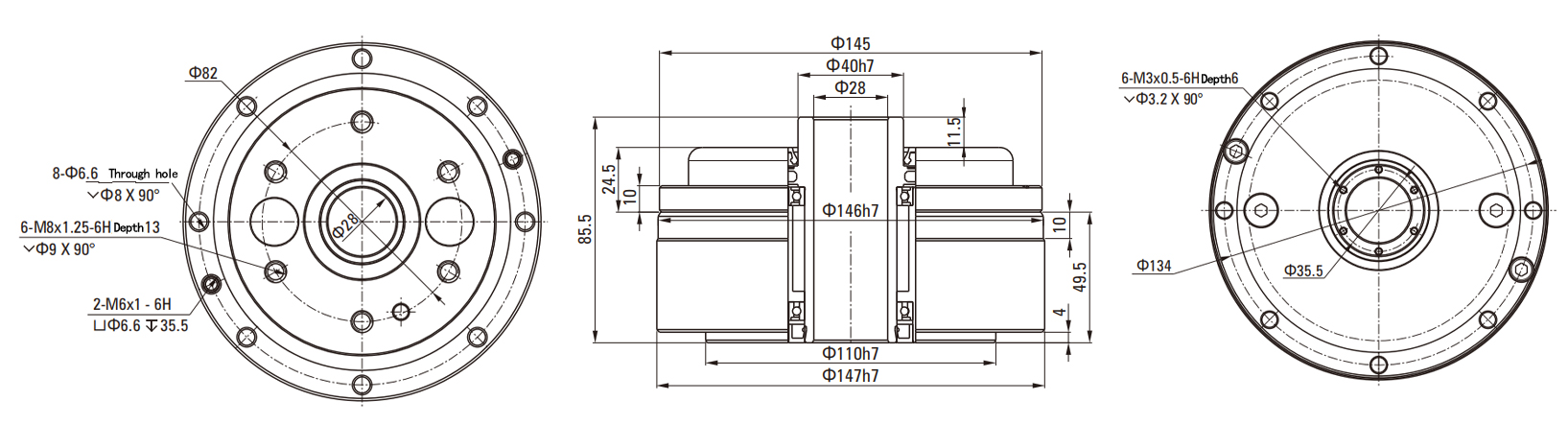

● 10CBX-RCA Outline Drawing

Type Motor	M41	M42	M51	M52
C	50	50	70	70
D	14	14	19	10 13
E	7	7	7	7
F	60	60	80	80
H	32	32	42	42
L	154.9	154.9	154.9	154.9
M	M4	M5	M5	M6
P	70	70	90	90

Note:
1. This picture shows the hollow 10CBX reducer.
2. Reducer speed ratio: (81,108,453,189,243):1.
3. Grease: VIGO GREASE RE0 or RE-00 (MOLYWHITE).
4. Rated output torque: 98N.m (output speed: 15R / Min).

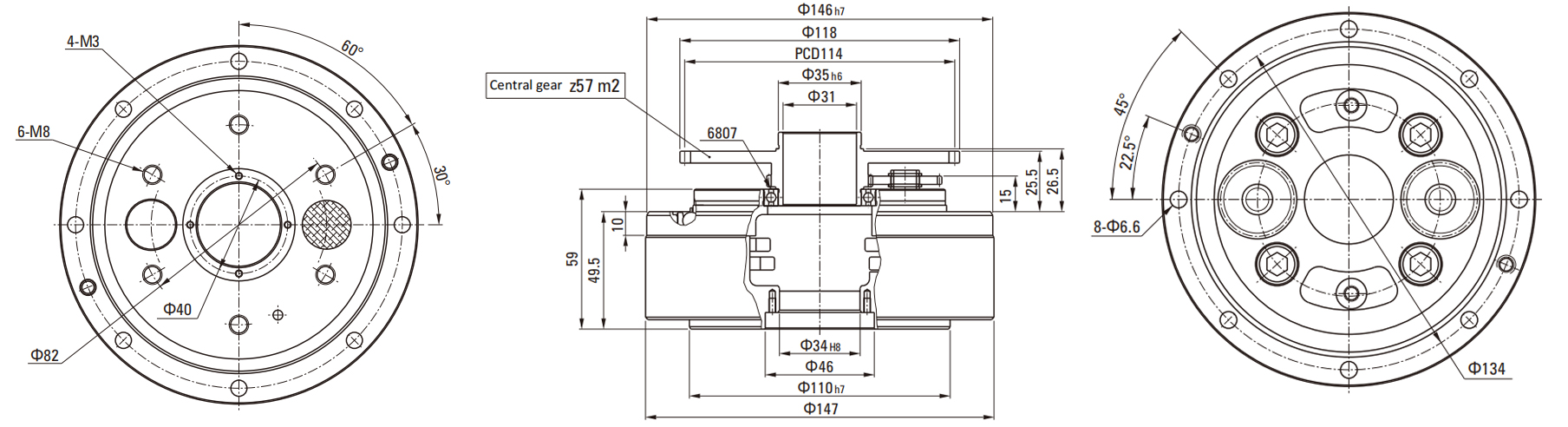

● 10CBX-27-RCA-TB Outline Drawing

Note:
1. This picture shows the hollow 10CBX reducer, the input end with timing pulley.
2. Reducer speed ratio: 27:1.
3. Grease: VIGO GREASE RE0 or RE-00 (MOLYWHITE).
4. Rated output torque: 98N.m (output speed: 15R / Min).
5. The installation flanges shall be specially designed and manufactured to ensure the center distance and the relevant requirements of the PRCs.

● 27CBX-RCA Outline Drawing

Type Motor	M51	M52	M53	M54	M54	M56	M57
C	70	70	80	110	110	95	95
D	19	19	19	19	22	19	22
E	7.5	7.5	7.5	23	23	20	20
F	80	80	90	130	130	100	100
H	42	42	42	58	58	55	55
K	6	6	6	6	8	6	8
L	176	176	176	191.5	191.5	188.5	188.5
M	M5	M6	M6	M8	M8	M6	M8
P	90	90	100	145	145	115	115

Note:

1. This picture shows the hollow 27CBX reducer.

2. Reducer speed ratio: (79,103,120,157,177,231.5):1.

3. Grease: VIGO GREASE RE0 or RE-00 (MOLYWHITE).

4. Rated output torque: 264N.m (output speed: 15R/Min).

● 27CBX-36.57-RCA-TB Outline Drawing

Note:
1. This picture shows the hollow 27CBX reducer, the input end with timing pulley.
2. Reducer speed ratio: 36.57:1.
3. Grease: VIGO GREASE RE0 or RE-00 (MOLYWHITE).
4. Rated output torque: 264N.m (output speed: 15R / Min).
5. The installation flanges shall be specially designed and manufactured to ensure the center distance and the relevant requirements of the PRCs.

● 50CBX-RCA Outline Drawing

Type Motor	M51	M52	M53	M71	M73	M74	M75
C	70	70	80	110	95	95	95
D	19	19	19	19/22/24	19/22/24	19/22/24	19/22/24
E	6	6	6	13.5	10.5	10.5	13.5
F	80	80	90	130	100	100	110
H	58	58	58	65	62	62	65
K	6	6	6	6/8	6/8	6/8	6/8
L	194	194	194	201.5	198.5	198.5	201.5
M	M5	M6	M6	M8	M6	M8	M8
P	90	90	100	145	115	115	130

Note:

1. This picture shows the hollow 50CBX reducer

2. Reducer speed ratio: (80,107,151,177,234):1.

3. Grease: VIGO GREASE RE0 or RE-00 (MOLYWHITE).

4. Rated output torque: 490N.m (output speed: 15R/Min.

● 50CBX-32.54-RCA-TB Outline Drawing

Note:
1. The figure applies with timing pulley.
2. Reducer speed ratio: 32.54:1.
3. Grease: VIGO GREASE RE0 or RE-00 (MOLYWHITE).
4. Rated output torque: 498N.m (output speed: 15R / Min).
5. System reduction ratio: 32.54 multiplied by the speed ratio belt.

● 100CBX-RCA Outline Drawing

Type Motor	M71	M73	M74	M75	M76	M91
C	110	95	95	95	130	114.3
D	22/24	22/24	22/24	22/24	22/24	28/35
E	11.5	8.5	8.5	11.5	11.5	25.5
F	130	100	100	110	142	175
H	20	58	58	60	60	82
K	6/8	6	6/8	6/8	6/8	8/10
L	226	223	223	226	226	240
M	M8	M6	M8	M8	M10	M12
P	145	115	115	130	165	200

Note:
1. This picture shows the hollow 100CBX reducer.
2. Reducer speed ratio: (76.3,100.2,124.7,152,214.3,264.6):1.
3. Grease: VIGO GREASE RE0 or RE-00 (MOLYWHITE).
4. Rated output torque: 980N.m (output speed: 15R / Min).

● 100CBX-36.75-RCA-TB Outline Drawing

Note:
1. The figure applies with timing pulley.
2. Reducer speed ratio: 36.75:1.
3. Grease: VIGO GREASE RE0 or RE-00 (MOLYWHITE).
4. Rated output torque: 980N.m (output speed: 15R / Min).
5. System reduction ratio: 36.75 multiplied by the speed ratio belt.

● 200CBX-RCA Outline Drawing

Type Motor	M71	M71	M91	M91
C	110	110	114.3	114.3
D	22/24	28	20 20	35
E	11.5	11.5	25.5	25.5
F	130	130	175	175
H	60	60	74	84
K	6/8	8	8	10
L	286.5	286.5	300.5	300.5
MI	M8	M8	M12	M12
P	145	145	200	200

Note:
1. This picture shows the hollow 200CBX reducer.
2. Reducer speed ratio: (106,122,156,206,245,281):1.
3. Grease: VIGO GREASE RE0 or RE-00 (MOLYWHITE).
4. Rated output torque: 1960N.m (output speed: 15R / Min).

● 200CBX-34.86-RCA-TB Outline Drawing

Note:
1. Reducer single reduction ratio: i = 34.86 (1499/43), weight of single reducer: about 55.6kg.
2. The sun gear shown in the figure is a standard type, which can be provided according to customer requirements.
3. Rated output torque: 1960N.m (output speed: 15RPM, input motor power 4KW)).

● 320CBX-RCA Outline Drawing

Type Motor	M91	M91
C	114.3	114.3
D	42	35
E	18	18
F	175	175
H	116	90
K	12	10
L	361.5	361.5
M	M12	M12
P	200	200

Note:
1. This picture shows the hollow 320CBX reducer, the input end with timing pulley.
2. Reducer speed ratio: (253 etc...):1.
3. Grease: VIGO GREASE RE0 or RE-00 (MOLYWHITE).
4. Rated output torque: 3160N.m (output speed: 15R / Min).

RV/ Harmonic Reducer

RVC Series RV Cycloidal Pin Wheel Reducer

PDF Drawing + Contact us

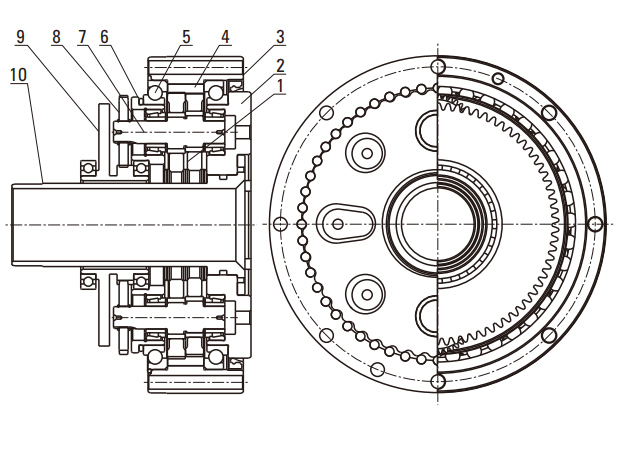

● C series reducer structure

1- Cycloidal gear

2- Output flange

3- Needle tooth shell

4- Pin gear

5- Main bearing

6- Supporting flange

7- Crankshaft

8- Planetary gear

9- Central gear

10- Low speed tube

Using Environment

In the following environmental conditions, the reducer should be able to operate normally:

—— The highest ambient temperature is changed by seasons and less than 40℃.
—— The lowest ambient temperature is -10℃.

Model Number

① Code, specific see table 1

C Series
Code	Outline dimension(mm)	The original code
10C	Φ145	150
27C	Φ181	180
50C	φ222	220
100C	φ250	250
200C	φ345	350
320C	Φ440	440

② BX: Cycloidal pin wheel reducer

③ 81: Gear ratio, specific see table 2

C Series
Code	Monomer reduction ratio
10CBX	27.00
27CBX	36.57
50CBX	32.54
100CBX	36.75
200CBX	34.86
320CBX	35.61
Note 1: Cseies gear ratio refers to the motor installed in the casing of the reduction ratio, if installed on the output flange side, the corresponding reduction ratio by 1.

④ Reducer type code
RVE: Main bearing built-in E type
RVC: Hollow type
REA: With input flange E type
RCA: With input flange hollow type

⑤ Enter the gear shaft type and motor shaft diameter
A: Standard Type A, E Series Input Gear A-axis.
C Series represents the standard sun gear.
B: Standard Type B, E Series Input Gear B-axis.
Z: Special matching type.
W: Nothing.
TB: C series synchronous pulley input type.

⑥ Reducer mounting type
B: Output shaft bolt fastening connection
P: Output shaft bolts and locating pins with the type

⑦ Motor shaft diameter

C output series torque and efficiency

Model\Qutput Speed Project	5 r/min		15 r/min			25 r/min		30 r/min		Maximum Allowable Loss Out Speed r/min
Model\Qutput Speed Project	Output Torque N.m	Input Power Kw	Output Torque N.m	Input Power Kw	Efficiency %	Output Torque N.m	Input Power Kw	Output Torque N.m	Input Power Kw	Maximum Allowable Loss Out Speed r/min
10CBX	134	0.09	98	0.20	78	89	0.3	87	0.35	80
27CBX	372	0.25	264	0.54	78	239	0.8	223	0.90	60
50CBX	745	0.50	490	1.00	78	447	1.5	434	1.75	50
100CBX	1490	1.00	980	2.00	78	894	3.0	819	3.30	40
120CBX	1490	1.00	1176	2.36	78	941	3.16	856	3.45	40
200CBX	2235	2.00	1960	4.00	78	1788	6.0	1638	6.60	30
320CBX	4470	3.00	3136	6.30	78	2830	9.5	/	/	25

Note 1: The rated torque is the output torque of the output speed of 15rpm. The input power considers the efficiency of the reducer.

Note 2: Torque calculation formula:

T=9549XPXη/N （T: Nm, P: Kw, N: RPM, η: % )。T=9549XPXη/N (T: Torque Nm, P: Power Kw, N: Speed RPM, η: Efficiency %).

Transmission Precision, Torsional Stiffness, Backlash And Backlash

* The torsional stiffness, backlash and backlash of the gear reducer shall meet the requirements of table 5 and table 6.

* The transmission accuracy of gear reducer shall conform to the requirements of table 5 and table 6.

Life

* When the reducer is working on rated speed and on-loading, reducer 's lift time is more than 6000 hours.

Allowable Torque (Bending Torque)

* The instant allowable torque is generally twice the allowable torque of the reducer.

* The allowable torque of the gear reducer shall meet to the requirements of table 5 and table 6.

Overload

* After reducer working under over-load for 5min with 125% rated torque, dudring the running, it have no noise and other damage.

Reducer Technical Parameters See Table

Model/Project	Retarder Monomer/Reduction Ratio	Allowable Moment N.m	Torsional Rigidity N.m/(Arc.min)	Stat And Stop Allowing Output Torque N.m	Instantaneous Maximum Torque N.m	Transmission Accuracy Arc. min	Backlash Of Backlash Arc.min	Life h	Retarder Inertia Moment Kg.m²	Weight kg
10CBX	27.00	686	47	245	490	1.0	1.0	6000	1.380X10^-5	4.60
27CBX	36.57	980	147	662	1323	1.0	1.0	6000	0.550X10^-4	8.50
50CBX	32.54	1764	255	1225	2450	1.0	1.0	6000	1.820X10^-4	14.6
100CBX	36.75	2450	510	2450	4900	1.0	1.0	6000	0.475X10^-3	19.5
120CBX	36.75	2940	588	2990	5880	1.0	1.0	6000	0.475X10^-3	19.5
200CBX	34.86	8820	980	4900	9800	1.0	1.0	6000	1.390X10^-3	55.6
320CBX	35.61	20580	1960	7840	15680	1.0	1.0	6000	0.518X10^-2	79.5

Note: Inertial moment value is the value of the reducer unit, without considering the inertial moment of the central gear and the input gear. For the inertia moment value converted by the motor shaft, refer to the following formula.

Lubrication

* The lubrication grease is not filled before gearbox leave factory. Please fill in the suggested lubrication grease during assembly, the amount is roughly 70~90% of the gearbox inside cavity volume

* Lubricating grease is generally replaced in 2000 hours. When the grease is contaminated or is used in harsh environments, it is necessary to check the condition of aging and pollution and to change the time

* Reducer using lubricating oil: Molywhite RE-00 or VIGO-grease REO other similar grade precision reducer special grease

● 10CBX-RVC Outline Drawing

● 27CBX-RVC Outline Drawing

● 50CBX-RVC Outline Drawing

● 100CBX-RVC Outline Drawing

● 120CBX-RVC-P Outline Drawing

● 200CBX-RVC Outline Drawing

● 320CBX-RVC Outline Drawing

● 320CA-RVC Outline Drawing

Horizontal Installation	Vertical Installation	Size A	Size A
Input Gear	2	12	+0.5
Planetary Gear	2	42	+0.5
Center Gear	2	81	+0.5

RV/ Harmonic Reducer

REA(With Flange) Series RV Cycloidal Pin Wheel Reducer

PDF Drawing + Contact us

● E series reducer structure

1- Needle tooth shell

2- Pin gear

3- Main bearing

4- Output flange

5- Supporting flange

6- Input shaft

7- Crankshaft

8- Planetary gear

9- Cycloidal gear

Using Environment

In the following environmental conditions, the reducer should be able to operate normally:

—— The highest ambient temperature is changed by seasons and less than 40℃.
—— The lowest ambient temperature is -10℃.

Model Number

① Code, specific see table 1

E Series
Code	0utline dimension(mm)	General model
120	Φ122	6E
150	Φ145	20E
190	Φ190	40E
220	φ222	80E
250	Φ244	110E
280	φ280	160E
320	φ325	320E

② BX: Cycloidal pin wheel reducer

③ 81: Gear ratio, specific see table 2

E Series
Code	Reduction ratio (output flange output)
120	31,43,53.5,59,79,103
150	41,57,81,105,121,141,161
190	41,57,81,105,121,153
220	57,81,101,121,153
250	81,111,161,175.28
280	81,101,129,145,171
320	81,101,118.5,129,141,171,185
Note 1: E series, such as by the shell(pin shell output, the corresponding reduction ratio by 1.

④ Reducer type code
RVE: Main bearing built-in E type
RVC: Hollow type
REA: With input flange E type
RCA: With input flange hollow type

⑤ Enter the gear shaft type and motor shaft diameter
A: Standard Type A, E Series Input Gear A-axis.
C Series represents the standard sun gear.
B: Standard Type B, E Series Input Gear B-axis.
Z: Special matching type.
W: Nothing.
TB: C series synchronous pulley input type.

⑥ Reducer mounting type
B: Output shaft bolt fastening connection
P: Output shaft bolts and locating pins with the type

⑦ Motor shaft diameter

E series output torque and efficiency

Model\Qutput Speed Project	5 r/min		15 r/min			25 r/min		30 r/min		Maximum Allowable Loss Out Speed r/min
Model\Qutput Speed Project	Output Torque N.m	Input Power Kw	Output Torque N.m	Input Power Kw	Efficiency %	Output Torque N.m	Input Power Kw	Output Torque N.m	Input Power Kw	Maximum Allowable Loss Out Speed r/min
120BX	115	0.075	58.8	0.115	80	62	0.2	64	0.25	100
150BX	245	0.16	196	0.385	80	153	0.5	153	0.6	75
35BX	329	0.23	254	0.5	80	203	0.71	192	0.8	75
190BX	612	0.4	392	0.77	80	367	1.2	382	1.5	70
65BX	745	0.52	575	1.13	80	460	1.61	435	1.81	70
220BX	1146	0.75	784	1.54	80	673	2.2	637	2.5	70
250BX	1528	1.0	1078	2.12	80	978	3.2	892	3.5	50
280BX	2292	1.5	1568	3.1	80	1437	4.7	1274	5.0	45
320BX	4584	3.0	3136	6.2	80	2903	9.5	2802	11.0	35

Note 1: The rated torque is the output torque of the output speed of 15 r/min. The input power considers the efficiency of the reducer

Note 2: Torque calculation formula:
T=9549XPXη/N （T: Nm, P: Kw, N: r/min, η: % )。T=9549XPXη/N (T: Torque Nm, P: Power Kw, N: Speed r/min, η: Efficiency %)

Transmission Precision, Torsional Stiffness, Backlash And Backlash

* The torsional stiffness, backlash and backlash of the gear reducer shall meet the requirements of table 5 and table 6.

* The transmission accuracy of gear reducer shall conform to the requirements of table 5 and table 6.

Life

* When the reducer is working on rated speed and on-loading, reducer 's lift time is more than 6000 hours.

Allowable Torque (Bending Torque)

* The instant allowable torque is generally twice the allowable torque of the reducer.

* The allowable torque of the gear reducer shall meet to the requirements of table 5 and table 6.

Overload

* After reducer working under over-load for 5min with 125% rated torque, dudring the running, it have no noise and other damage.

Reducer Technical Parameters See

Model\Project	Ratio Value		Allowable Moment N.m	Torsional Rigidity N.m/(Arc.min)	Stat And Stop Allowing Output Torque (N.m)	Instantaneous Maximum Torque N.m	Transmission Accuracy Arc.min	Backlash Of Backlash Arc.min	Life h	Moment of inertia Input axis conversion value(kg-m²)	Weight kg
	Axis Output	Shell Output
120BX	53.50	52.50	196	20	117	294	1.5	1.5	6000	1.53X10^-6	2.50
	59.00	58.00								1.39X10^-6
	79.00	78.00								1.09X10^-6
	103.0	102.0								0.74X10^-6
150BX	81.00	80.00	880	49	412	820	1.0	1.0	6000	6.07X10^-6	4.70
	105.0	104.0								4.32X10^-6
	121.0	120.0								3.56X10^-6
	141.0	140.0								2.88X10^-6
	1610	160.0								2.39X10^-6
35BX	81.00	80.00	1103	73	530	1190	1.0	1.0	6000	6.07X10^-6	4.6
	105.0	104.0								4.32X10^-6
	1210	120.0								3.56X10^-6
	141.0	140.0								2.88X10^-6
	161.0	1600								2.39X10^-6
190BX	81.00	80.00	1600	108	1029	2000	1.0	1.0	6000	2.20X10^-5	9.30
	105.0	104.0								1.63X10^-5
	121.0	120.0								1.37X10^-5
	153.0	152.0								1.01X10^-5
65BX	81.00	80.00	1916	162	1380	2690	1.0	1.0	6000	2.20X10^-5	9.50
	105.0	104.0								1.63X10^-5
	121.0	120.0								1.37X10^-5
	153.0	152.0								1.01X10^-5
220BX	81.00	80.00	2000	196	1960	3600	1.0	1.0	6000	6.00X10^-5	13.1
	101.0	100.0								4.82X10^-5
	121.0	120.0								3.96X10^-5
	153.0	152.0								2.98X10^-5
250BX	81.00	80.00	2900	294	2695	5380	1.0	1.0	6000	9.88X10^-5	17.4
	111.0	110.0								6.96X10^-5
	161.0	160.0								4.36X10^-5
	175.28	174.28								3.89X10^-5
280BX	81.00	80.00	3900	392	3920	7800	1.0	1.0	6000	1.77X10^-4	26.4
	101.0	1000								1.40X10^-4
	129.0	128.0								1.06X10^-4
	145.0	144.0								0.87X10^-4
	171.0	170.0								0.74X10^-4
320BX	81.00	80.00	7000	980	7840	15600	1.0	1.0	6000	4.83X10^-4	44.3
	101.0	100.0								3.79X10^-4
	118.5	117.5								3.15X10^-4
	129.0	128.0								2.84X10^-4
	141.0	140.0								2.54X10^-4
	171.0	170.0								1.97X10^-4
	185.0	184.0								1.77X10^-4

Lubrication

* The lubrication grease is not filled before gearbox leave factory. Please fill in the suggested lubrication grease during assembly, the amount is roughly 70~90% of the gearbox inside cavity volume

* Lubricating grease is generally replaced in 2000 hours. When the grease is contaminated or is used in harsh environments, it is necessary to check the condition of aging and pollution and to change the time

* Reducer using lubricating oil: Molywhite RE-00 or VIGO-grease REO other similar grade precision reducer special grease

● 120BX-REA2 Outline Drawing

Type Motor	M41	M42
C	50	50
D	11/14	11/14
E	8	8
F	60	60
H	34	34
L	113.7	113.7
M	M4	M5
P	70	70

Note:
1. This figure applies to the motor shaft: <=14; motor shaft lock use locker.
2. Speed reduction ratio: (31,43,53.5,59,79,103): 1 (shaft output).
3. Lubricants: VIGO GREASE RE0 or RE-00 (MOLYWHITE).
4. Rated output torque: 58N.m (output speed: 15R/Min).
5. Motor mounting flange according to motor model.

● 150BX-REA2 Outline Drawing

Type Motor	M59A	M59B	M51	M52	M53	M51	M52	M53
C	50	50	70	70	80	70	70	80
D	14	14	19	19	19	19	19	19
E	5	5	8	8	8	8	8	8
F	80	80	80	80	90	80	80	90
H	35	35	45	45	45	42	42	42
K			6	6	6	Keyless type	Keyless type	Keyless type
L	123	123	128.3	128.3	128.3	126	126	126
L(41,57K)	113	113				116	116	116
M	M4	M5	M5	M6	M6	M5	M6	M6
P	70	70	90	90	100	90	90	100

Note:

1. This figure applies to the motor shaft: <=19x40L; motor shaft lock use locker.

2. Speed reduction ratio: (41,57,81,105,121,141,161): 1 (shaft output).

3. Lubricants: VIGO GREASE RE0 or RE-00 (MOLYWHITE).

4. Rated output torque: 196N.m (output speed: 15R/Min).

5. Motor mounting flange according to motor model.

● 35BX-REA2 Outline Drawing

Type Motor	M59A	M59B	M51	M52	M53	M51	M52	M53
C	50	50	70	70	80	70	70	80
D	14	14	19	19	19	19	19	19
E	5	5	8	8	8	8	8	8
F	80	80	80	80	90	80	80	90
H	35	35	45	45	45	42	42	42
K			6	6	6	Keyless type	Keyless type	Keyless type
L	123	123	128.3	128.3	128.3	126	126	126
L(41,57K)	113	113				116	116	116
M	M4	M5	M5	M6	M6	M5	M6	M6
P	70	70	90	90	100	90	90	100

Note:

1. This figure applies to the motor shaft: <=19x40L.

2. Speed reduction ratio: (41,57,81,105,121,141,161): 1 (shaft output).

3. Lubricants: VIGO GREASE RE0 or RE-00 (MOLYWHITE).

4. Rated output torque: 254N.m (output speed: 15R/Min).

5. Motor mounting flange according to motor model.

● 190BX-REA2 Outline Drawing

Type Motor	M59A	M59B	M72	M73	M74	M75	M77	M78
C	50	50	110	95	95	95	80	70
D	14	14	19/22	19	19/22	19/22	19	19
E	8	8	20	7	7	10	10	8
F	80	80	130	100	100	110	90	80
H	35	35	58	48	48	52	40	40
K			6/8	6	6/8	6/8	6	6
L	147.6	147.6	170.1	162.1	162.1	165.1	158.1	156.1
L(41,57K)	147.6	147.6	165.1	155.1	155.1	158.1	150.1(M51/52/53)
M	M4	M5	M8	M6	M8	M8	M6	M6
P	70	70	145	115	115	130	100	90

Note:

1. This figure applies to the motor shaft: <=24; motor shaft lock use locker.

2. Speed reduction ratio: (41,57,81,105,121,153): 1 (shaft output).

3. Lubricants: VIGO GREASE RE0 or RE-00 (MOLYWHITE).

4. Rated output torque: 392N.m (output speed: 15R/Min)

5. Motor mounting flange according to motor model.

● 65BX-REA Outline Drawing

Type Motor	M59A	M59B	M72	M73	M74	M75	M77	M78
C	50	50	110	95	95	95	80	70
D	14	14	19/22	19	19/22	19/22	19	19
E	8	8	20	7	7	10	10	8
F	80	80	130	100	100	110	90	80
H	35	35	58	48	48	52	40	40
K	-	-	6/8	6	6/8	6/8	6	6
L	147.6	147.6	170.1	162.1	162.1	165.1	158.1	156.1
L(41,57K)	147.6	147.6	165.1	155.1	155.1	158.1	150.1(M51/52/53)
M	M4	M5	M8	M6	M8	M8	M6	M6
P	70	70	145	115	115	130	100	90

Note:

1. This figure applies to the motor shaft: <=24; motor shaft lock use locker.
2. Speed reduction ratio: (41,57,81,105,121,153): 1 (shaft output).
3. Lubricants: VIGO GREASE RE0 or RE-00 (MOLYWHITE).
4. Rated output torque: 575N.m (output speed: 15R/Min).
5. Motor mounting flange according to motor model.

● 220BX-REA2 Outline Drawing

Type Motor	M71	M73	M74	M75	M76	M77	M78	M81
C	110	95	95	95	130	80	70	114.3
D	19/22/24	19	19/22	19/22/24	19/22	19	19	28/35
E	13	10	10	13	13	10	11	27.5
F	130	100	100	110	142	90	80	175
H	60	57	57	60	60	60	58	82
K	6/8	6	6/8	6/8	6/8	6	6	8/10
L	194	191	191	194	194	194	192	208
M	M8	M6	M8	M8	M10	M6	M6	M8
P	145	115	115	130	165	100	90	200

Note:

1. This figure applies to the motor shaft: <=24x70L; motor shaft lock use locker.

2. Speed reduction ratio: (57,81,101,121,153): 1 (shaft output).

3. Lubricants: VIGO GREASE RE0 or RE-00 (MOLYWHITE).

4. Rated output torque: 784N.m (output speed: 15R/Min)

5. Motor mounting flange according to motor model.

● 220BX-REA-35 Outline Drawing

Note:

1. This figure applies to the motor shaft: <=35x80L; motor shaft lock use locker.
2. Speed reduction ratio: (57,81,101,121,153): 1 (shaft output).
3. Lubricants: VIGO GREASE RE0 or RE-00 (MOLYWHITE).
4. Rated output torque: 784N.m (output speed: 15R/Min); Allowable moment 1700Nm, allowable thrust 7400N.
5. Motor mounting flange according to motor model.

● 250BX-REA2 Outline Drawing

Type Motor	M71	M73	M74	M75	M76	M91
C	110	95	95	95	130	114.3
D	22/24	22	22	22/24	22	28/35
E	12.5	9.5	9.5	12.5	12.5	27
F	130	100	100	110	142	175
H	66	57	57	60	60	82
K	6/8	6	6/8	6/8	6/8	8/10
L	199	196	196	199	199	213
M	M8	M6	M8	M8	M10	M12
P	145	115	115	130	165	200

Note:

1. This figure applies to the motor shaft: <=35x80L; motor shaft lock use locker.
2. Speed reduction ratio: (81,111,161,175.28): 1 (shaft output).
3. Lubricants: VIGO GREASE RE0 or RE-00 (MOLYWHITE).
4. Rated output torque: 1078N.m (output speed: 15R/Min).
5. Motor mounting flange according to motor model.

● 280BX-REA Outline Drawing

Type Motor	M71	M73	M74	M75	M76	M91
C	110	95	95	95	130	114.3
D	22/24	22	22	22/24	22	28/35
E	13.4	10.4	10.4	13.4	13.4	27
F	130	100	100	110	142	175
H	70	65	57	60	60	82
K	6/8	6	6/8	6/8	6/8	8/10
L	192.4	189.4	189.4	192.4	192.4	206.4
M	M8	M6	M8	M8	M10	M12
P	145	115	115	130	165	200

Note:

1. This figure applies to the motor shaft: <=35x70L; Motor shaft is locked by locker

2. Speed reduction ratio: (81,101,129,145,171): 1 (shaft output)

3. Lubricants: VIGO GREASE RE0 or RE-00 (MOLYWHITE)

4. Rated output torque: 1568N.m (output speed: 15R/Min)

5. The motor mounting flange is supplied according to the motor type

● 320BX-REA Outline Drawing

Type Motor	M91	M92	M91
C	114.3	180	114.3
D	35	35	42
E	19	19	48.5
F	175	200	175
H	81	81	116
K	10	10	12
L	216.9	216.9	248.4
M	M12	M12	M12
P	200	215	200

Note:

1. This figure applies to the motor shaft: <=42x114L; motor shaft lock use locker

2. Speed reduction ratio: (81,101,118.5,129,141,171,185): 1 (shaft output)

3. Lubricants: VIGO GREASE RE0 or RE-00 (MOLYWHITE)

4. Rated output torque: 3136N.m (output speed: 15R/Min)

5. Motor mounting flange according to motor model

RV/ Harmonic Reducer

RVE Series RV Cycloidal Pin Wheel Reducer

PDF Drawing + Contact us

● E series reducer structure

1- Needle tooth shell

2- Pin gear

3- Main bearing

4- Output flange

5- Supporting flange

6- Input shaft

7- Crankshaft

8- Planetary gear

9- Cycloidal gear

Using Environment

In the following environmental conditions, the reducer should be able to operate normally:

—— The highest ambient temperature is changed by seasons and less than 40℃.
—— The lowest ambient temperature is -10℃.

Model Number

① Code, specific see table 1

E Series
Code	0utline dimension(mm)	General model
120	Φ122	6E
150	Φ145	20E
190	Φ190	40E
220	φ222	80E
250	Φ244	110E
280	φ280	160E
320	φ325	320E

② BX: Cycloidal pin wheel reducer

③ 81: Gear ratio, specific see table 2

E Series
Code	Reduction ratio (output flange output)
120	31,43,53.5,59,79,103
150	41,57,81,105,121,141,161
190	41,57,81,105,121,153
220	57,81,101,121,153
250	81,111,161,175.28
280	81,101,129,145,171
320	81,101,118.5,129,141,171,185
Note 1: E series, such as by the shell(pin shell output, the corresponding reduction ratio by 1.

④ Reducer type code
RVE: Main bearing built-in E type
RVC: Hollow type
REA: With input flange E type
RCA: With input flange hollow type

⑤ Enter the gear shaft type and motor shaft diameter
A: Standard Type A, E Series Input Gear A-axis.
C Series represents the standard sun gear.
B: Standard Type B, E Series Input Gear B-axis.
Z: Special matching type.
W: Nothing.
TB: C series synchronous pulley input type.

⑥ Reducer mounting type
B: Output shaft bolt fastening connection
P: Output shaft bolts and locating pins with the type

⑦ Motor shaft diameter

E series output torque and efficiency

Model\Qutput Speed Project	5 r/min		15 r/min			25 r/min		30 r/min		Maximum Allowable Loss Out Speed r/min
Model\Qutput Speed Project	Output Torque N.m	Input Power Kw	Output Torque N.m	Input Power Kw	Efficiency %	Output Torque N.m	Input Power Kw	Output Torque N.m	Input Power Kw	Maximum Allowable Loss Out Speed r/min
120BX	115	0.075	58.8	0.115	80	62	0.2	64	0.25	100
150BX	245	0.16	196	0.385	80	153	0.5	153	0.6	75
35BX	329	0.23	254	0.5	80	203	0.71	192	0.8	75
190BX	612	0.4	392	0.77	80	367	1.2	382	1.5	70
65BX	745	0.52	575	1.13	80	460	1.61	435	1.81	70
220BX	1146	0.75	784	1.54	80	673	2.2	637	2.5	70
250BX	1528	1.0	1078	2.12	80	978	3.2	892	3.5	50
280BX	2292	1.5	1568	3.1	80	1437	4.7	1274	5.0	45
320BX	4584	3.0	3136	6.2	80	2903	9.5	2802	11.0	35

Note 1: The rated torque is the output torque of the output speed of 15 r/min. The input power considers the efficiency of the reducer

Note 2: Torque calculation formula:
T=9549XPXη/N （T: Nm, P: Kw, N: r/min, η: % )。T=9549XPXη/N (T: Torque Nm, P: Power Kw, N: Speed r/min, η: Efficiency %)

Transmission Precision, Torsional Stiffness, Backlash And Backlash

* The torsional stiffness, backlash and backlash of the gear reducer shall meet the requirements of table 5 and table 6.

* The transmission accuracy of gear reducer shall conform to the requirements of table 5 and table 6.

Life

* When the reducer is working on rated speed and on-loading, reducer 's lift time is more than 6000 hours.

Allowable Torque (Bending Torque)

* The instant allowable torque is generally twice the allowable torque of the reducer.

* The allowable torque of the gear reducer shall meet to the requirements of table 5 and table 6.

Overload

* After reducer working under over-load for 5min with 125% rated torque, dudring the running, it have no noise and other damage.

Reducer Technical Parameters See

Model\Project	Ratio Value		Allowable Moment N.m	Torsional Rigidity N.m/(Arc.min)	Stat And Stop Allowing Output Torque (N.m)	Instantaneous Maximum Torque N.m	Transmission Accuracy Arc.min	Backlash Of Backlash Arc.min	Life h	Moment of inertia Input axis conversion value(kg-m²)	Weight kg
	Axis Output	Shell Output
120BX	53.50	52.50	196	20	117	294	1.5	1.5	6000	1.53X10^-6	2.50
	59.00	58.00								1.39X10^-6
	79.00	78.00								1.09X10^-6
	103.0	102.0								0.74X10^-6
150BX	81.00	80.00	880	49	412	820	1.0	1.0	6000	6.07X10^-6	4.70
	105.0	104.0								4.32X10^-6
	121.0	120.0								3.56X10^-6
	141.0	140.0								2.88X10^-6
	1610	160.0								2.39X10^-6
35BX	81.00	80.00	1103	73	530	1190	1.0	1.0	6000	6.07X10^-6	4.6
	105.0	104.0								4.32X10^-6
	1210	120.0								3.56X10^-6
	141.0	140.0								2.88X10^-6
	161.0	1600								2.39X10^-6
190BX	81.00	80.00	1600	108	1029	2000	1.0	1.0	6000	2.20X10^-5	9.30
	105.0	104.0								1.63X10^-5
	121.0	120.0								1.37X10^-5
	153.0	152.0								1.01X10^-5
65BX	81.00	80.00	1916	162	1380	2690	1.0	1.0	6000	2.20X10^-5	9.50
	105.0	104.0								1.63X10^-5
	121.0	120.0								1.37X10^-5
	153.0	152.0								1.01X10^-5
220BX	81.00	80.00	2000	196	1960	3600	1.0	1.0	6000	6.00X10^-5	13.1
	101.0	100.0								4.82X10^-5
	121.0	120.0								3.96X10^-5
	153.0	152.0								2.98X10^-5
250BX	81.00	80.00	2900	294	2695	5380	1.0	1.0	6000	9.88X10^-5	17.4
	111.0	110.0								6.96X10^-5
	161.0	160.0								4.36X10^-5
	175.28	174.28								3.89X10^-5
280BX	81.00	80.00	3900	392	3920	7800	1.0	1.0	6000	1.77X10^-4	26.4
	101.0	1000								1.40X10^-4
	129.0	128.0								1.06X10^-4
	145.0	144.0								0.87X10^-4
	171.0	170.0								0.74X10^-4
320BX	81.00	80.00	7000	980	7840	15600	1.0	1.0	6000	4.83X10^-4	44.3
	101.0	100.0								3.79X10^-4
	118.5	117.5								3.15X10^-4
	129.0	128.0								2.84X10^-4
	141.0	140.0								2.54X10^-4
	171.0	170.0								1.97X10^-4
	185.0	184.0								1.77X10^-4

Lubrication
* The lubrication grease is not filled before gearbox leave factory. Please fill in the suggested lubrication grease during assembly, the amount is roughly 70~90% of the gearbox inside cavity volume

* Lubricating grease is generally replaced in 2000 hours. When the grease is contaminated or is used in harsh environments, it is necessary to check the condition of aging and pollution and to change the time

* Reducer using lubricating oil: Molywhite RE-00 or VIGO-grease REO other similar grade precision reducer special grease

● 120BX-RVE Outline Drawing

● 150BX-RVE Outline Drawing

● 35BX-RVE Outline Drawing

● 190BX-RVE Outline Drawing

● 65BX-RVE Outline Drawing

● 220BX-RVE Outline Drawing

● 250BX-RVE Outline Drawing

● 280BX-RVE Outline Drawing

● 320BX-RVE Outline Drawing

Web Menu

Product Search

Language

Exit Menu

Harmonic Reducer

CSF

SHF

RV Reducer

REAWith Flange

RCAWith Flange

RVC

RVE

Call a motor
Specialist

To make a higher
power motor.

SHF(Simple Unit Type)

SHF(Unit Type)

CSF Series Harmonic Drive Reducer

RCA(With Flange) Series RV Cycloidal Pin Wheel Reducer

RVC Series RV Cycloidal Pin Wheel Reducer

REA(With Flange) Series RV Cycloidal Pin Wheel Reducer

RVE Series RV Cycloidal Pin Wheel Reducer

Web Menu

Product Search

Language

Share

Exit Menu

Harmonic Reducer

CSF

SHF

RV Reducer

REAWith Flange

RCAWith Flange

RVC

RVE

Call a motor Specialist

To make a higher power motor.

SHF(Simple Unit Type)

SHF(Unit Type)

CSF Series Harmonic Drive Reducer

RCA(With Flange) Series RV Cycloidal Pin Wheel Reducer

RVC Series RV Cycloidal Pin Wheel Reducer

REA(With Flange) Series RV Cycloidal Pin Wheel Reducer

RVE Series RV Cycloidal Pin Wheel Reducer

Call a motor
Specialist

To make a higher
power motor.
