Planetary DC Gear Motor

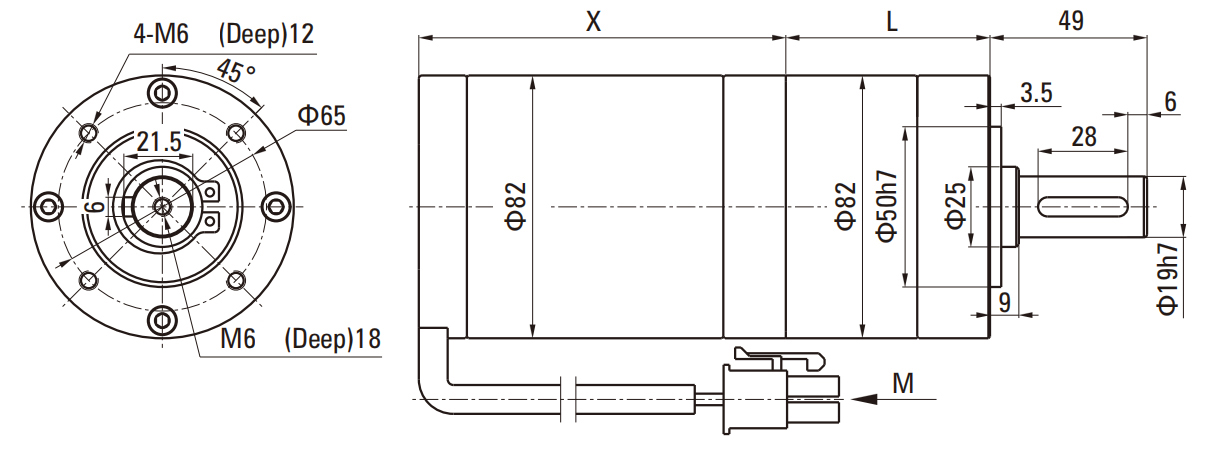

ZPNΦ82 Brushless Planetary DC Gear Motor

PDF Drawing + Contact us

Motor Type	Dimension	Gearbox Model	Gear Ratio	Dimension
Z82BLDPN24200-30S	114.5	82PN□	3.65～8.63	63.70
			13.53～58.22	80.50
Z82BLDPN24300-30S	136.5
			67.08～392.98	103.2

1	2	3	4	5	6	7	8
U	V	W	GND	Hv	Hw	Hu	+Vcc

Motor Type	Voltage V	Rated Power W	Bated Current A	Rated Speed RPM	Rated Torque N.m	Grade Protection IP
Z82BLDPN24200-30S	24	200	12	3000	0.637	20
Z82BLDPN24300-30S	24	300	18	3000	0.955	20

Ratio	3.65	5.36	6.55	8.63	13.53	18.92	24.65	28.05	33.92	44.69	58.22	67.08	81.11
Output shaft speed	822	560	458	348	222	159	122	107	88	67	52	45	37
Allowable torque	2.09	3.07	3.75	4.94	6.98	9.76	12.71	14.47	17.49	23.05	30.02	31.18	37.70
Reduction stage	1	1	1	1	2	2	2	2	2	2	2	3	3

Ratio	91.36	102.88	118.98	127.74	145.36	165.64	191.56	231.61	301.68	392.98
Output shaft speed	33	29	25	23	21	18	16	13	10	8
Allowable torque	42.46	47.82	55.30	59.37	67.56	76.98	89.03	107.64	120.0	120.0
Reduction stage	3	3	3	3	3	3	3	3	3	3

Planetary DC Gear Motor

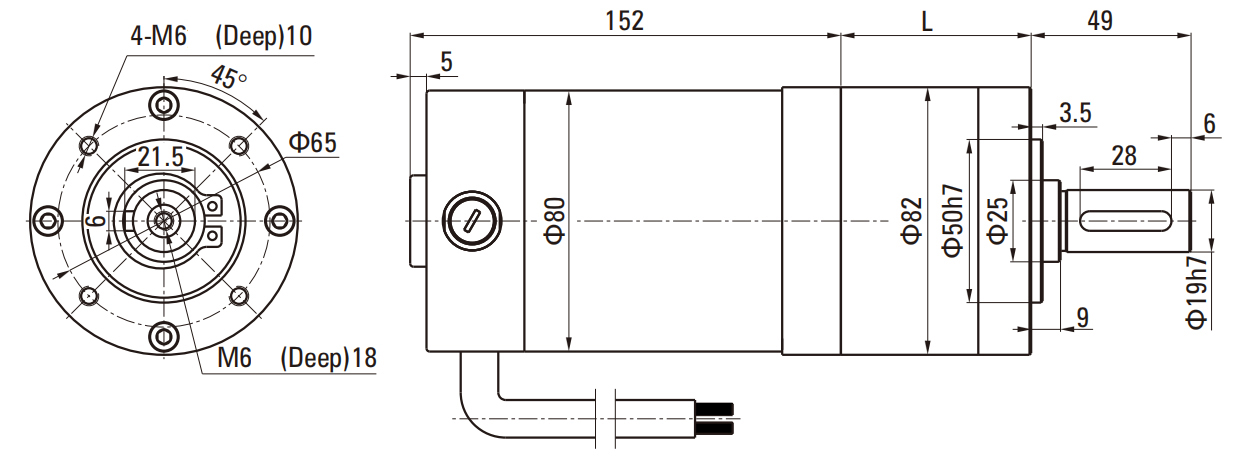

ZPNΦ82 Brush DC Planetary Gear Motor

PDF Drawing + Contact us

Motor Type	Gearbox Model	Gear Ratio	Dimension
Z82DPN	82PN□	3.65~8.63	63.70
		13.53~58.22	80.50
		67.08~392.98	103.2

Motor Type	Voltage V	Rated Power W	No-load Current A	No-load Speed RPM	Rated Current A	Rated Speed RPM	Rated Torque N.m	Motor Life H
Z82DPN1290-30S	12	90	2.5	3500	10.5	3000	0.287	2000
Z82DPN24120-30S	24	120	2.0	3400	7.20	3000	0.382	2000
Z82DPN48180-30S	24	180	1.5	3400	5.50	3000	0.573	2000

Ratio	3.65	5.36	6.55	8.63	13.53	18.92	24.65	28.05	33.92	44.69	58.22	67.08	81.11
Output shaft speed	822	560	458	348	222	159	122	107	89	67	52	45	37
Allowable torque	1.30	1.80	2.30	3.00	4.20	5.90	7.60	8.70	10.5	13.8	18.0	18.7	22.6
Reduction stage	1	1	1	1	2	2	2	2	2	2	2	3	3

Ratio	91.36	102.88	118.98	127.74	145.36	165.64	191.56	231.61	301.68	392.98
Output shaft speed	33	29	25	24	21	18	16	13	9.9	7.6
Allowable torque	25.5	28.7	33.2	35.6	40.5	46.2	53.4	64.6	84.0	84.0
Reduction stage	3	3	3	3	3	3	3	3	3	3

Planetary DC Gear Motor

ZPNΦ72 Brushless Planetary DC Gear Motor

PDF Drawing + Contact us

Motor Type	Dimension	Gearbox Model	Gear Ratio	Dimension
Z72BLDPN24120-30S	106.5	72PN□	3.65～8.63	52.0
			13.53～58.22	72.15
Z72BLDPN24150-30S	129.5
			67.08～392.98	92.3

1	2	3	4	5	6	7	8
U	V	W	GND	Hv	Hw	Hu	+Vcc

Motor Type	Voltage V	Rated Power W	Bated Current A	Rated Speed RPM	Rated Torque N.m	Grade Protection IP
Z72BLDPN24120-30S	24	120	6.6	3000	0.382	20
Z72BLDPN24150-30S	24	150	8.5	3000	0.478	20

Ratio	3.65	5.36	6.55	8.63	13.53	18.92	24.65	28.05	33.92	44.69	58.22	67.08	81.11
Output shaft speed	822	560	458	348	222	159	122	107	88	67	52	45	37
Allowable torque	1.25	1.84	2.25	2.97	4.19	5.85	7.63	8.68	10.50	13.83	18.01	18.71	22.62
Reduction stage	1	1	1	1	2	2	2	2	2	2	2	3	3

Ratio	91.36	102.88	118.98	127.74	145.36	165.64	191.56	231.61	301.68	392.98
Output shaft speed	33	29	25	23	21	18	16	13	10	8
Allowable torque	25.48	28.69	33.18	35.62	40.50	46.19	53.42	64.59	84.00	84.00
Reduction stage	3	3	3	3	3	3	3	3	3	3

Planetary DC Gear Motor

ZPNΦ72 Brush DC Planetary Gear Motor

PDF Drawing + Contact us

Motor Type	Gearbox Model	Gear Ratio	Dimension
Z72DPN	72PN□	3.65~8.63	52.00
		13.53~58.22	72.15
		67.08~392.98	92.30

Motor Type	Voltage V	Rated Power W	No-load Current A	No-load Speed RPM	Rated Current A	Rated Speed RPM	Rated Torque N.m	Motor Life H
Z72DPN1260-30S	12	60	2.0	3500	7.2	3000	0.191	2000
Z72DPN2490-30S	24	90	2.0	3400	5.5	3000	0.287	2000
772DPN24120-30S	24	120	2.0	3500	7.2	3000	0.382	2000

Ratio	3.65	5.36	6.55	8.63	13.53	18.92	24.65	28.05	33.92	44.69	58.22	67.08	81.11
Output shaft speed	822	560	458	348	222	159	122	107	89	67	52	45	37
Allowable torque	0.94	1.38	1.69	2.23	3.15	4.40	5.73	6.52	7.89	10.39	13.53	14.05	16.99
Reduction stage	1	1	1	1	2	2	2	2	2	2	2	3	3

Ratio	91.36	102.88	118.98	127.74	145.36	165.64	191.56	231.61	301.68	392.98
Output shaft speed	33	29	25	24	21	18	16	13	9.9	7.6
Allowable torque	19.14	21.55	24.93	26.76	30.45	34.70	40.13	48.52	63.20	82.33
Reduction stage	3	3	3	3	3	3	3	3	3	3

Planetary DC Gear Motor

ZPNΦ62 Brushless Planetary DC Gear Motor

PDF Drawing + Contact us

Motor Type	Dimension	Gearbox Model	Gear Ratio	Dimension
Z62BLDPN2460-30S	96	62PN□	3.65～8.63	45.1
			13.53～58.22	62.7
Z62BLDPN2490-30S	113
			67.08～392.98	80.3

1	2	3	4	5	6	7	8
U	V	W	GND	Hv	Hw	Hu	+Vcc

Motor Type	Voltage V	Rated Power W	Bated Current A	Rated Speed RPM	Rated Torque N.m	Grade Protection IP
Z62BLDPN2460-30S	24	60	3.4	3000	0.191	20
Z62BLDPN2490-30S	24	90	5.4	3000	0.287	20

Ratio	3.65	5.36	6.55	8.63	13.53	18.92	24.65	28.05	33.92	44.69	58.22	67.08	81.11
Output shaft speed	822	560	458	348	222	159	122	107	88	67	52	45	37
Allowable torque	0.63	0.92	1.13	1.48	2.09	2.93	3.81	4.34	5.25	6.91	9.01	9.35	11.31
Reduction stage	1	1	1	1	2	2	2	2	2	2	2	3	3

Ratio	91.36	102.88	118.98	127.74	145.36	165.64	191.56	231.61	301.68	392.98
Output shaft speed	33	29	25	23	21	18	16	13	10	8
Allowable torque	12.74	14.34	16.59	17.81	20.27	23.10	26.71	32.29	42.06	45.00
Reduction stage	3	3	3	3	3	3	3	3	3	3

Planetary DC Gear Motor

ZPNΦ62 Brush DC Planetary Gear Motor

PDF Drawing + Contact us

Motor Type	Gearbox Model	Gear Ratio	Dimension
Z62DPN	62PN□	3.65~8.63	45.1
		13.53~58.22	62.7
		67.08~392.98	80.3

Motor Type	Voltage V	Rated Power W	No-load Current A	No-load Speed RPM	Rated Current A	Rated Speed RPM	Rated Torque N.m	Motor Life H	Dimension mm
Z62DPN2440-30S	24	40	1.2	3500	2.5	3000	0.127	2000	110.5
Z62DPN2460-30S	24	60	1.2	3500	3.5	3000	0.191	2000	121.5
Z62DPN2490-30S	24	90	1.5	3700	5.5	3000	0.287	2000	133.5

Ratio	3.65	5.36	6.55	8.63	13.53	18.92	24.65	28.05	33.92	44.69	58.22	67.08	81.11
Output shaft speed	822	560	458	348	222	159	122	107	89	67	52	45	37
Allowable torque	0.63	0.92	1.13	1.48	2.09	2.93	3.81	4.34	5.25	6.91	9.01	9.35	11.31
Reduction stage	1	1	1	1	2	2	2	2	2	2	2	3	3

Ratio	91.36	102.88	118.98	127.74	145.36	165.64	191.56	231.61	301.68	392.98
Output shaft speed	33	29	25	24	21	18	16	13	9.9	7.6
Allowable torque	12.74	14.34	16.58	17.81	20.27	23.10	26.71	32.29	42.06	50.00
Reduction stage	3	3	3	3	3	3	3	3	3	3

Planetary DC Gear Motor

ZPNΦ52 Brushless Planetary DC Gear Motor

PDF Drawing + Contact us

Motor Type	Dimension	Gearbox Model	Gear Ratio	Dimension
Z52BLDPN2440-30S	91	62PN□	3.65～8.63	38.6
			13.53～58.22	54.2
Z52BLDPN2460-30S	110
			67.08～392.98	69.8

1	2	3	4	5	6	7	8
U	V	W	GND	Hv	Hw	Hu	+Vcc

Motor Type	Voltage V	Rated Power W	Bated Current A	Rated Speed RPM	Rated Torque N.m	Grade Protection IP
Z52BLDPN2440-30S	24	40	2.4	3000	0.127	20
Z52BLDPN2460-30S	24	60	3.8	3000	0.191	20

Ratio	3.65	5.36	6.55	8.63	13.53	18.92	24.65	28.05	33.92	44.69	58.22	67.08	81.11
Output shaft speed	822	560	458	348	222	159	122	107	88	67	52	45	37
Allowable torque	0.42	0.61	0.75	0.99	1.40	1.95	2.54	2.89	3.50	4.61	6.00	6.24	7.54
Reduction stage	1	1	1	1	2	2	2	2	2	2	2	3	3

Ratio	91.36	102.88	118.98	127.74	145.36	165.64	191.56	231.61	301.68	392.98
Output shaft speed	33	29	25	23	21	18	16	13	10	8
Allowable torque	8.49	9.55	11.06	11.87	13.51	15.40	17.81	21.53	25	25
Reduction stage	3	3	3	3	3	3	3	3	3	3

Planetary DC Gear Motor

ZPNΦ52 Brush DC Planetary Gear Motor

PDF Drawing + Contact us

Motor Type	Gearbox Model	Gear Ratio	Dimension
Z52DPN	52PN□	3.65~8.63	38.6
		13.53~58.22	54.2
		67.08~392.98	69.8

Motor Type	Voltage V	Power W	No-load Current A	No-load Speed RPM	Rated Current A	Rated Speed RPM	Rated Torque N.m	Motor Life H
Z52DPN2440-30S	24	25	1.0	3500	2.5	3000	0.127	2000
Z52DPN2460-30S	24	60	1.2	3600	4.0	3000	0.191	2000

Ratio	3.65	5.36	6.55	8.63	13.53	18.92	24.65	28.05	33.92	44.69	58.22	67.08	81.11
Output shaft speed	822	560	458	348	222	159	122	107	89	67	52	45	37
Allowable torque	0.42	0.61	0.75	0.99	1.39	1.95	2.54	2.89	3.49	4.60	5.99	6.22	7.52
Reduction stage	1	1	1	1	2	2	2	2	2	2	2	3	3

Ratio	91.36	102.88	118.98	127.74	145.36	165.64	191.56	231.61	301.68	392.98
Output shaft speed	33	29	25	24	21	18	16	13	9.9	7.6
Allowable torque	8.47	9.54	11.03	11.84	13.48	15.36	17.76	21.47	25.00	25.00
Reduction stage	3	3	3	3	3	3	3	3	3	3

Planetary DC Gear Motor

ZPNΦ42 Brushless Planetary DC Gear Motor

PDF Drawing + Contact us

Motor Type	Gearbox Model	Gear Ratio	Dimension
Z42BLDPN	42PN□	3.65~8.63	33.8
		13.53~58.22	47.4
		67.08~392.98	61.0

1	2	3	4	5	6	7	8
U	V	W	GND	Hv	Hw	Hu	+Vcc

Motor Type	Voltage V	Rated Power W	Bated Current A	Rated Speed RPM	Rated Torque N.m	Grade Protection IP
Z42BLDPN2440-30S	24	40	2.4	3000	0.127	20

Ratio	3.65	5.36	6.55	8.63	13.53	18.92	24.65	28.05	33.92	44.69	58.22	67.08	81.11
Output shaft speed	822	560	458	348	222	159	122	107	88	67	52	45	37
Allowable torque	0.42	0.61	0.75	0.99	1.40	1.95	2.54	2.89	3.50	4.61	6.00	6.24	7.54
Reduction stage	1	1	1	1	2	2	2	2	2	2	2	3	3

Ratio	91.36	102.88	118.98	127.74	145.36	165.64	191.56	231.61	301.68	392.98
Output shaft speed	33	29	25	23	21	18	16	13	10	8
Allowable torque	8.49	9.55	11.06	11.87	13.51	15.0	15.0	15.0	15.0	15.0
Reduction stage	3	3	3	3	3	3	3	3	3	3

Planetary DC Gear Motor

ZPNΦ42 Brush DC Planetary Gear Motor

PDF Drawing + Contact us

Motor Type	Gearbox Model	Gear Ratio	Dimension
Z42DPN	42PN□	3.65~8.63	33.8
		13.53~58.22	47.4
		67.08~392.98	61.0

Motor Type	Voltage V	Power W	No-load Current A	No-load Speed RPM	Rated Current A	Rated Speed RPM	Rated Torque N.m	Motor Life H
Z42DPN2425-30S	24	25	0.6	3500	1.6	3000	0.080	600

Ratio	3.65	5.36	6.55	8.63	13.53	18.92	24.65	28.05	33.92	44.69	58.22	67.08	81.11
Output shaft speed	822	560	458	348	222	159	122	107	89	67	52	45	37
Allowable torque	0.26	0.39	0.47	0.62	0.88	1.23	1.60	1.82	2.20	2.90	3.77	2.75	4.74
Reduction stage	1	1	1	1	2	2	2	2	2	2	2	3	3

Ratio	91.36	102.88	118.98	127.74	145.36	165.64	191.56	231.61	301.68	392.98
Output shaft speed	33	29	25	24	21	18	16	13	9.9	7.6
Allowable torque	5.34	6.01	6.95	7.46	8.49	9.67	11.19	13.53	15.00	15.00
Reduction stage	3	3	3	3	3	3	3	3	3	3

Planetary DC Gear Motor

ZPNΦ32 Brushless Planetary DC Gear Motor

PDF Drawing + Contact us

Motor Type	Gearbox Model	Gear Ratio	Dimension
Z32BLDPN	32PN□	3.7～6.75	25.6
		13.73～45.56	35.9
		50.89～307.54	46.2

1	2	3	4	5	6	7	8
U	V	W	GND	Hv	Hw	Hu	+Vcc

Motor Type	Voltage V	Rated Power W	Bated Current A	Rated Speed RPM	Rated Torque N.m	Grade Protection IP
Z32BLDPN2420-40S	24	20	1.3	4000	0.048	20

Ratio	3.7	4.29	5.18	6.75	13.73	19.2	25	28.93	34.97	45.56	50.89	68.08	78.7
Output shaft speed	1081	932	772	593	291	208	160	138	114	88	79	59	51
Allowable torque	0.16	0.092	0.22	0.29	0.53	0.74	0.97	1.12	1.35	1.76	1.77	2.37	2.74
Reduction stage	1	1	1		2	2	2	2	2	2	3	3	3

Ratio	92.7	99.5	115.1	129.6	149.9	168.85	195.28	236.1	307.54
Output shaft speed	43	40	35	31	27	24	20	17	13
Allowable torque	3.23	3.47	4.00	4.00	4.00	4.00	4.00	4.00	4.00
Reduction stage	3	3	3	3	3	3	3	3	3
